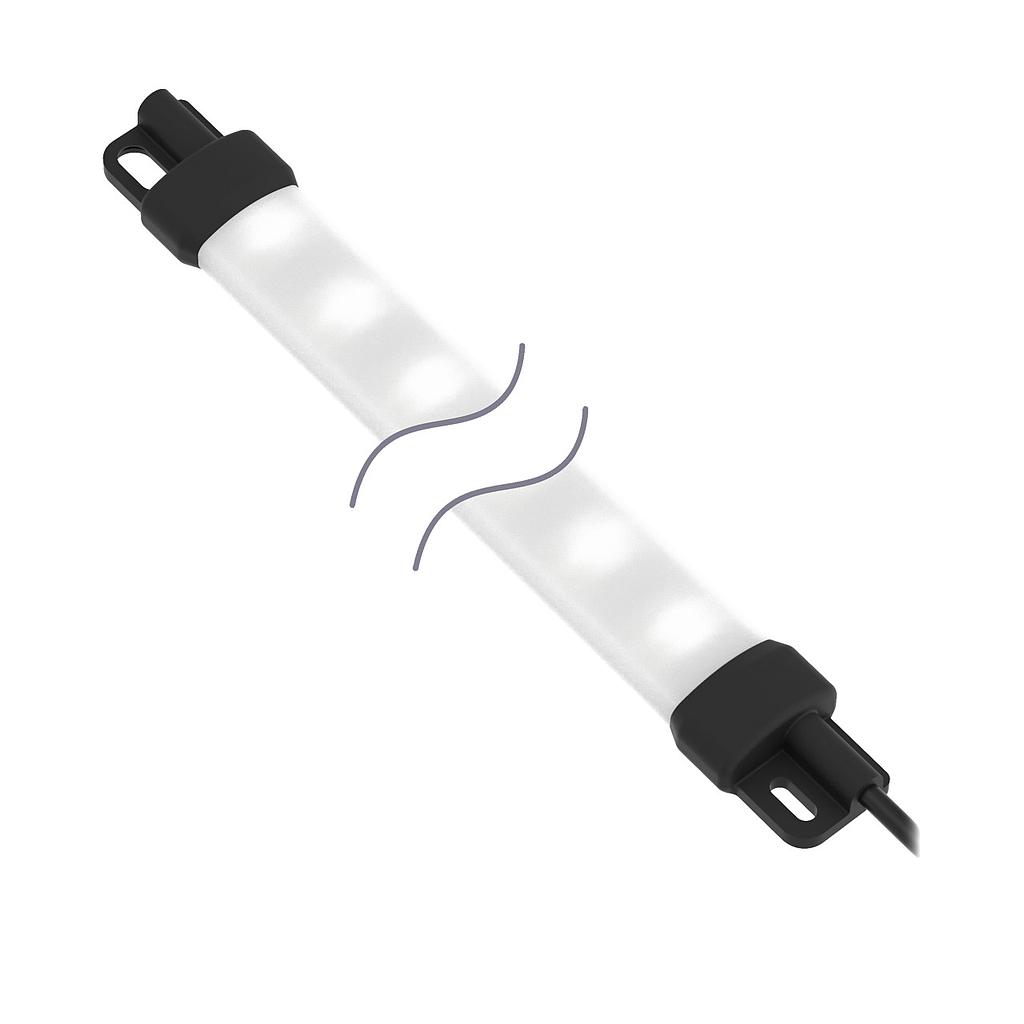

WLS15 Work Light Strip (WLS15XDW0360DSC5)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807043
Weight: 0.4 lb(s)
WLS15 Work Light Strip
Features:
- WLS15 Work Light Strip
- Diffused Window
- Length: 360 mm
- Voltage: 12 or 24 V dc
- Environmental Rating: IP66,67
- Color: Daylight White
- 5 m (16.4 ft) Cable
WLS15 Work Light Strip (WLS15XDW0360DSC5)
WLS15 Work Light Strip
Brand_Name:Banner
Manufacturer Product Family:WLS15
Power:DC
Feature: Display:No
Measurement Maximum:0
Max Current Color:480 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP66/67
Housing Style:Linear Strip
Housing Material_:Polycarbonate
Supply Voltage:12/24 VDC
Feature: Quick Disconnect:No
Lumens Color 1:350
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:Daylight White
Color 1 - Wavelength/Color Temp/Coordinates:5000K (Daylight)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments:1
Number of Input Pins/Conductors:2
Mounting Thread:No Thread
Storage Temp:-40 to 70 °C
Dimming Option:PWM
Secondary Material:Polyamide
Illuminated Length (LxWxH):286.4 mm
Feature: Illumination:Yes
Connection Type:Cable, Cable
Country of Origin:MX
Cord/Cable Length:5 m
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | WLS15 |
| Power | DC |
| Feature: Display | No |
| Measurement Maximum | 0 |
| Max Current Color | 480 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP66/67 |
| Housing Style | Linear Strip |
| Housing Material_ | Polycarbonate |
| Supply Voltage | 12/24 VDC |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 350 |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | Daylight White |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors / Segments | 1 |
| Number of Input Pins/Conductors | 2 |
| Mounting Thread | No Thread |
| Storage Temp | -40 to 70 °C |
| Dimming Option | PWM |
| Secondary Material | Polyamide |
| Illuminated Length (LxWxH) | 286.4 mm |
| Feature: Illumination | Yes |
| Connection Type | Cable, Cable |
| Country of Origin | MX |
| Cord/Cable Length | 5 m |
