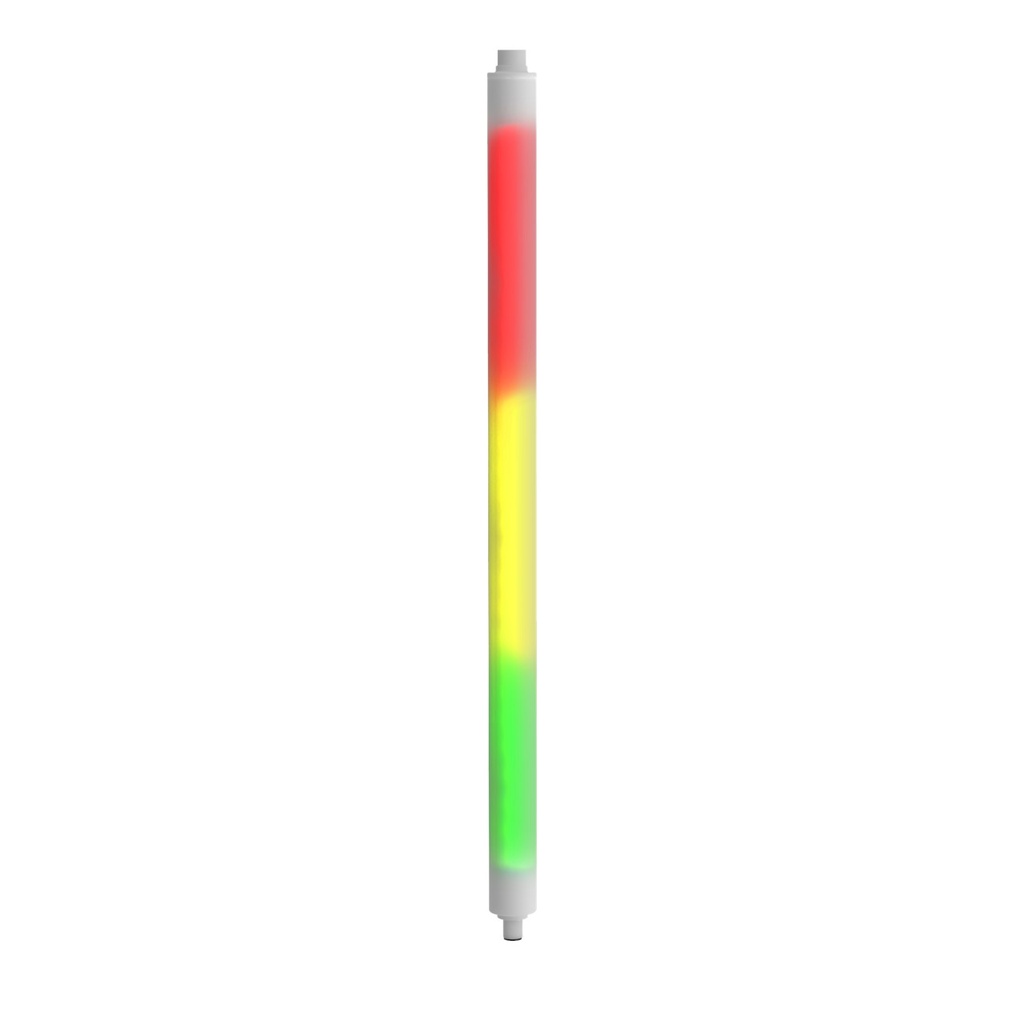

Wls27 Three Segment Light Strip (WLS27CGYR3S-0430HS24Q)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 806998
Weight: 1.5 lb(s)
Features:
- WLS27 Three Segment Light Strip; Length: 430 mm; Heavy Diffuse; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green, Yellow, Red; Cascadable; Euro 4-pin Integral Connector
Wls27 Three Segment Light Strip (WLS27CGYR3S-0430HS24Q)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:664 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP66/67/69K
Housing Style:Linear Strip - Segmented
Housing Material_:FDA Copolyester
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.0 x 501.0 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Red
Supply Voltage:24 VDC
Color Option 2:Yellow
Feature: Quick Disconnect:Yes
Lumens Color 1:200
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Color 1 - Wavelength/Color Temp/Coordinates:525 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:625 nm
Lumens Color 2:285
Lumens Color 3:93
Product Size (mm):27 mm
Color 2 - Wavelength/Color Temp/Coordinates:580 nm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Number of Tower Light Segments:3
Feature: Cascade:Yes
Illuminated Length (LxWxH):430.0 mm
Connection Type:Integral QD
Country of Origin:MX
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 664 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP66/67/69K |
| Housing Style | Linear Strip - Segmented |
| Housing Material_ | FDA Copolyester |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 27.0 x 501.0 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Red |
| Supply Voltage | 24 VDC |
| Color Option 2 | Yellow |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 200 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 2 | 285 |
| Lumens Color 3 | 93 |
| Product Size (mm) | 27 mm |
| Color 2 - Wavelength/Color Temp/Coordinates | 580 nm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Number of Tower Light Segments | 3 |
| Feature: Cascade | Yes |
| Illuminated Length (LxWxH) | 430.0 mm |
| Connection Type | Integral QD |
| Country of Origin | MX |
