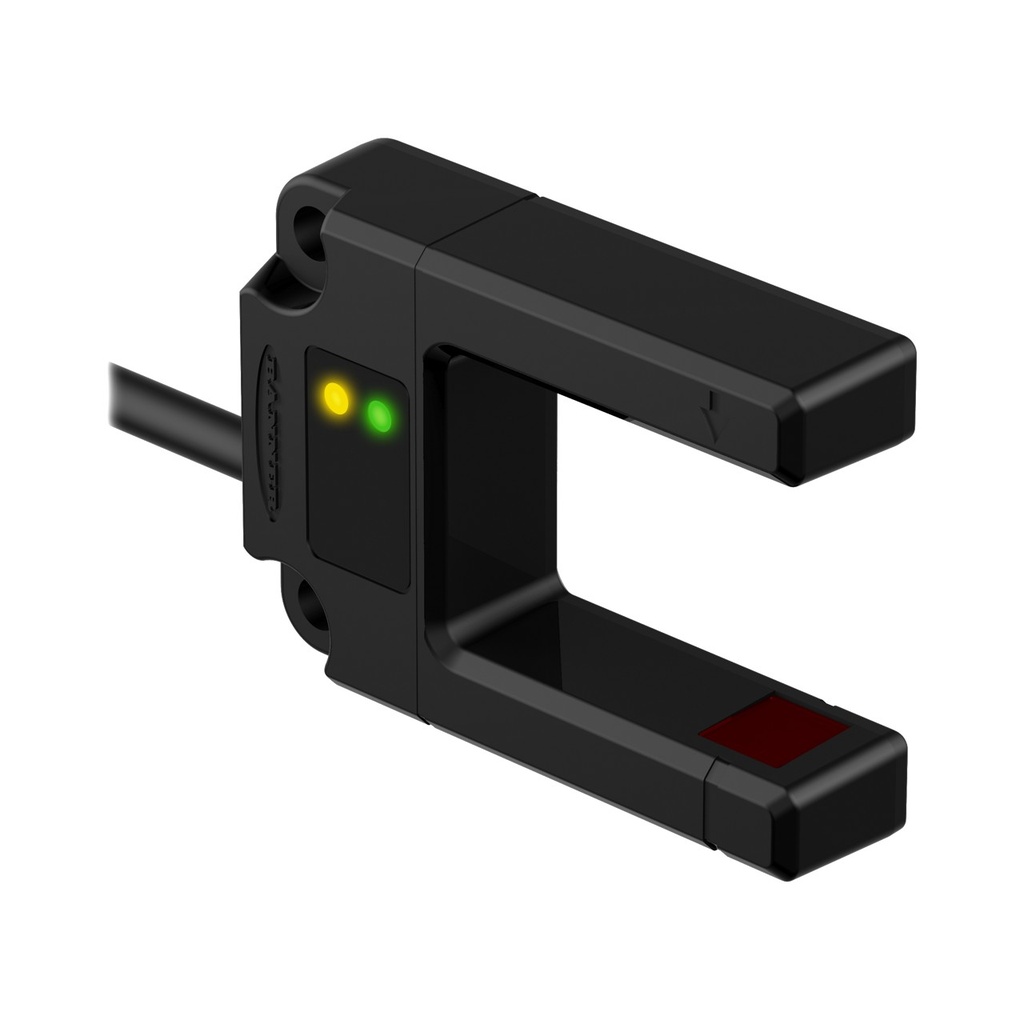

SLO Series Slot Sensor Slot Width: 30.2mm (1.19in) (SLO30VP6YQPMADO)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 80693
Weight: 0.2 lb(s)
On Hand: 0
Features:
- SLO30VP6YQPMADO SLO Series Slot Sensor Slot Width: 30.2mm (1.19in)
- Input: 10-30V dc
- Output: PNP Only Dark Operate
- 4-Pin 6in PUR Male Euro Pigtail QD
SLO Series Slot Sensor Slot Width: 30.2mm (1.19in) (SLO30VP6YQPMADO)
Brand_Name:Banner
Manufacturer Product Family:SLOT SENSORS
Measurement Maximum:0
Max Operating Temperature:70 °C
Lens Material:Acrylic
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):75
Housing Style:Slot
Sensing Mode (Detailed):Emitter/Receiver Pair
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12 (Euro)
Number of Pins:4
Output Response Time:0.3 ms
Operation:Dark Operate
Adjustments:N/A
Feature: Remote Teach:No
Connection:Pigtail PUR QD
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:200 mm
Indicator Type:LED
Max Sensing Range:30 mm
Slot Depth/Array Length (mm):45
Slot Overall Depth (mm):#REF!
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | SLOT SENSORS |
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 75 |
| Housing Style | Slot |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 (Euro) |
| Number of Pins | 4 |
| Output Response Time | 0.3 ms |
| Operation | Dark Operate |
| Adjustments | N/A |
| Feature: Remote Teach | No |
| Connection | Pigtail PUR QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 200 mm |
| Indicator Type | LED |
| Max Sensing Range | 30 mm |
| Slot Depth/Array Length (mm) | 45 |
| Slot Overall Depth (mm) | #REF! |
