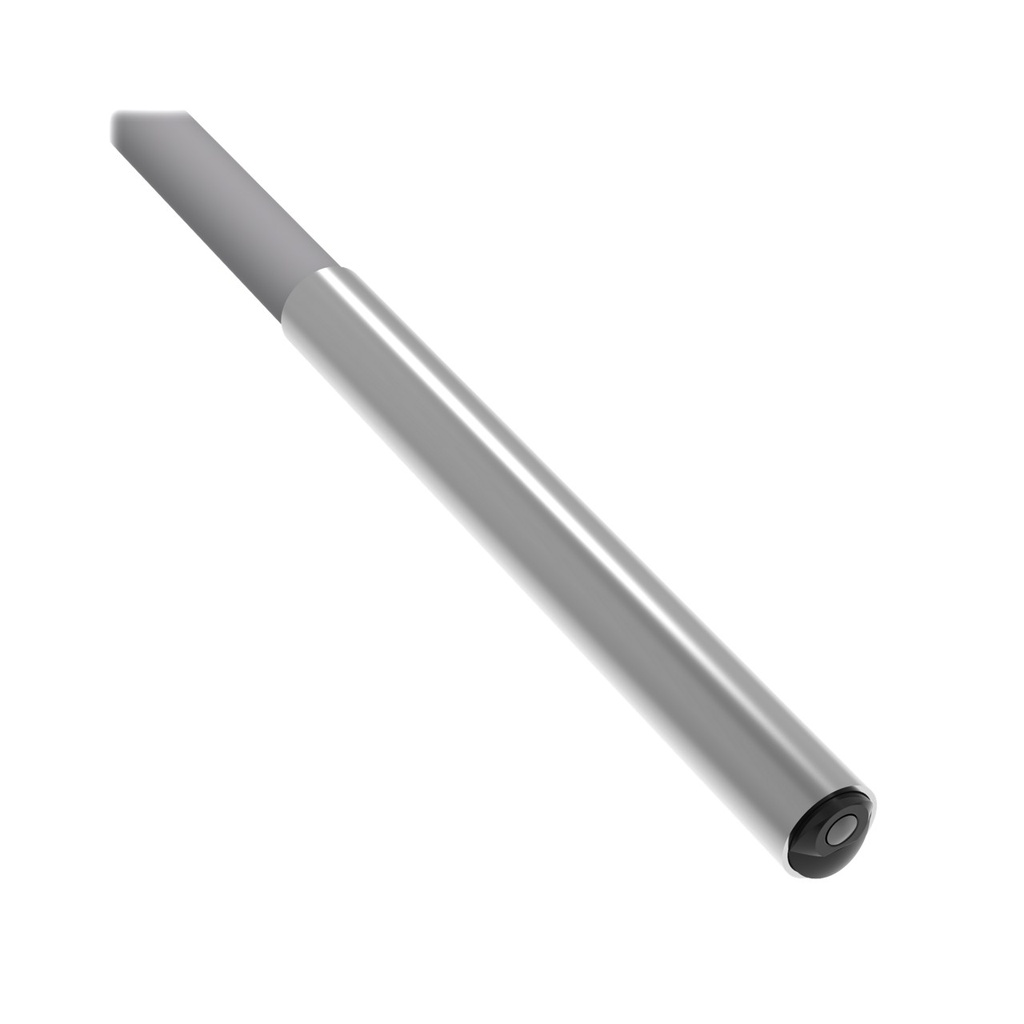

Vsm-2 Series: 4 Mm Smooth Barrel Diffuse (VSM-2S4AND10-2M)
Min Operating Temperature:-25 °C
Max Operating Temperature:65 °C
Lens Material:PMMA
Power Supply:10-30 VDC
Delay at Power-Up:20 ms
Ingress Protection:IP67
Repeatability (µs):1000
Sensing Beam:Visible Red LED
Housing Style:Barrel - Smooth
Max Sensing Distance:10 mm
Sensing Mode (Detailed):Diffuse
Sensing Mode (General):Proximity
Housing Material_:SS, SS
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:Yes, Yes
Feature: Water Detection:No
Number of Pins:3
Output Response Time:0.5 ms
Operation:Light Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Small Visible Spot:LED
Feature: Encapsulated:No
Input/Output:Discrete
Barrel Diameter:4 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
Cord/Cable Length:2 m
Indicator Type:LED
Specifications
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 65 °C |
| Lens Material | PMMA |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 20 ms |
| Ingress Protection | IP67 |
| Repeatability (µs) | 1000 |
| Sensing Beam | Visible Red LED |
| Housing Style | Barrel - Smooth |
| Max Sensing Distance | 10 mm |
| Sensing Mode (Detailed) | Diffuse |
| Sensing Mode (General) | Proximity |
| Housing Material_ | SS, SS |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Water Detection | No |
| Number of Pins | 3 |
| Output Response Time | 0.5 ms |
| Operation | Light Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | LED |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Barrel Diameter | 4 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
| Indicator Type | LED |
