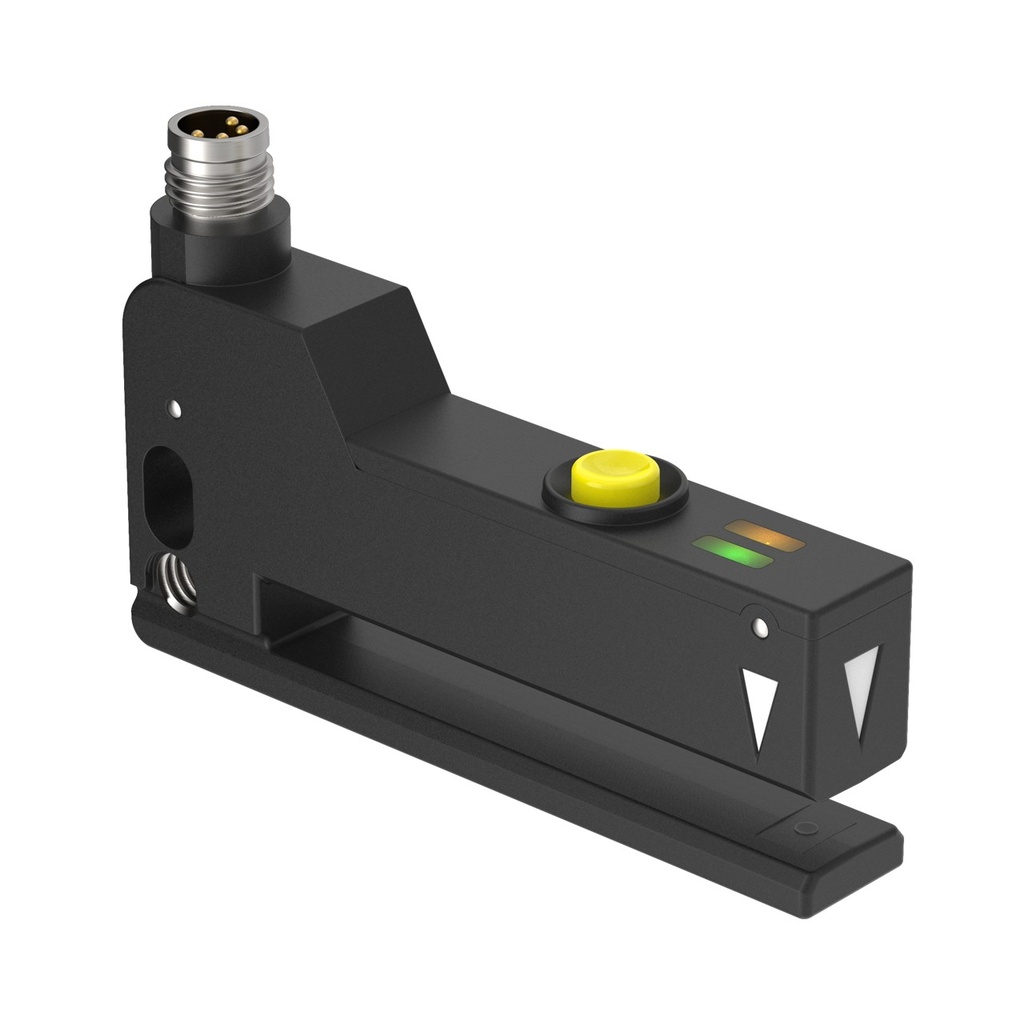

Representative photo. Please check item description for details.
Sle5 Series: Label Sensor (SLE5-NIR-Q7)
Min Operating Temperature:-20 °C
Max Operating Temperature:55 °C
Power Supply:10-30 VDC
Ingress Protection:IP65
Housing Style:Label
Max Sensing Distance:5 mm
Sensing Mode (Detailed):Emitter/Receiver Pair
Number of Beams:1
Housing Material_:Zinc Alloy Die-Cast
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M8
Output:NPN
Number of Pins:4
Output Response Time:0.04 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Remote Teach:Yes
Connection Type:Integral QD
Country of Origin:HU
Indicator Type:LED
Max Sensing Range:5 mm
Slot Depth/Array Length (mm):50 mm
Slot Overall Depth (mm):50 mm
Specifications
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 10-30 VDC |
| Ingress Protection | IP65 |
| Housing Style | Label |
| Max Sensing Distance | 5 mm |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Number of Beams | 1 |
| Housing Material_ | Zinc Alloy Die-Cast |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M8 |
| Output | NPN |
| Number of Pins | 4 |
| Output Response Time | 0.04 ms |
| Operation | Light/Dark Operate |
| Adjustments | Teach Button |
| Feature: Remote Teach | Yes |
| Connection Type | Integral QD |
| Country of Origin | HU |
| Indicator Type | LED |
| Max Sensing Range | 5 mm |
| Slot Depth/Array Length (mm) | 50 mm |
| Slot Overall Depth (mm) | 50 mm |
