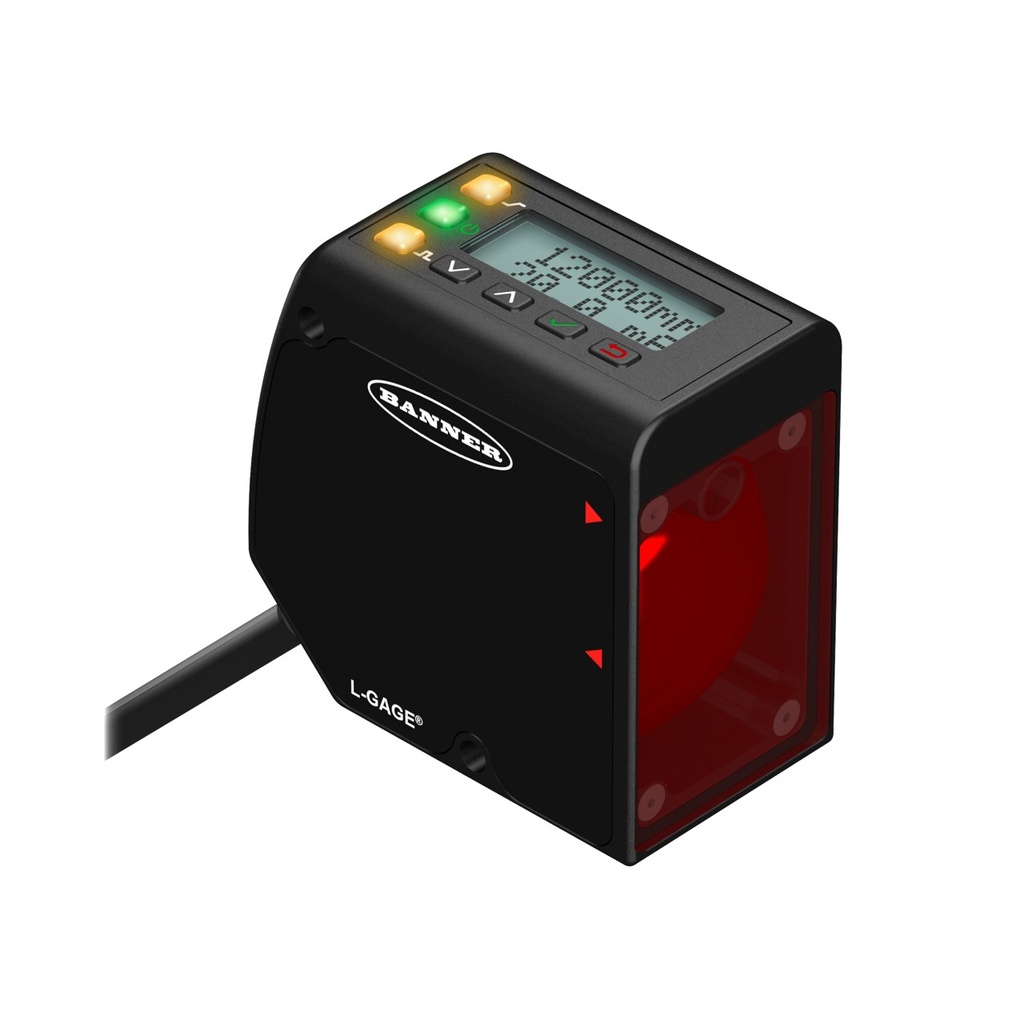

Laser Diffuse Time-Of-Flight Sensor (LTF12UC2LD-806320)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 806320
Weight: 0.98 lb(s)
Features:
- Laser Diffuse Time-of-Flight Sensor; Range: 50-12000 mm; Input:12-30 V dc; Output: Analog: 0-10 V; Class 2 Laser; Discrete: NPN/PNP Configurable; 500 mm Pigtail with Deutch Connector
Laser Diffuse Time-Of-Flight Sensor (LTF12UC2LD-806320)
Brand_Name:Banner
Power:DC
Min Operating Temperature:-20 °C
Max Operating Temperature:55 °C
Power Supply:12-30 VDC
Ingress Protection:IP67
Sensing Beam:Visible Red Laser
Housing Style:Rectangular
Max Sensing Distance:12000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Housing Material_:Zinc Alloy Die-Cast
Laser Classification:Class 2
Analog Output:0 to 10 VDC
Feature: Quick Disconnect:Yes
Quick Disconnect Type:Special
Number of Pins:6
Adjustments:Push Button; Remote Teach
Feature: Timing (Hold/Delay):Yes
Input/Output:Analog & Discrete
Min Response Time:1.5 ms
Min Sensing Distance:50 mm
Discrete (Switched) Outputs:1 NPN/PNP Configurable
Feature: Remote Teach:Yes
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:NEMA 6
Cord/Cable Length:0.5 m
Feature: Health/Marginal Signal Output:Yes
Feature: Laser Control:Yes
Max Ambient Light:40000 lux
Specifications
| Brand_Name | Banner |
| Power | DC |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 12-30 VDC |
| Ingress Protection | IP67 |
| Sensing Beam | Visible Red Laser |
| Housing Style | Rectangular |
| Max Sensing Distance | 12000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Housing Material_ | Zinc Alloy Die-Cast |
| Laser Classification | Class 2 |
| Analog Output | 0 to 10 VDC |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | Special |
| Number of Pins | 6 |
| Adjustments | Push Button; Remote Teach |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Analog & Discrete |
| Min Response Time | 1.5 ms |
| Min Sensing Distance | 50 mm |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Feature: Remote Teach | Yes |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 0.5 m |
| Feature: Health/Marginal Signal Output | Yes |
| Feature: Laser Control | Yes |
| Max Ambient Light | 40000 lux |
