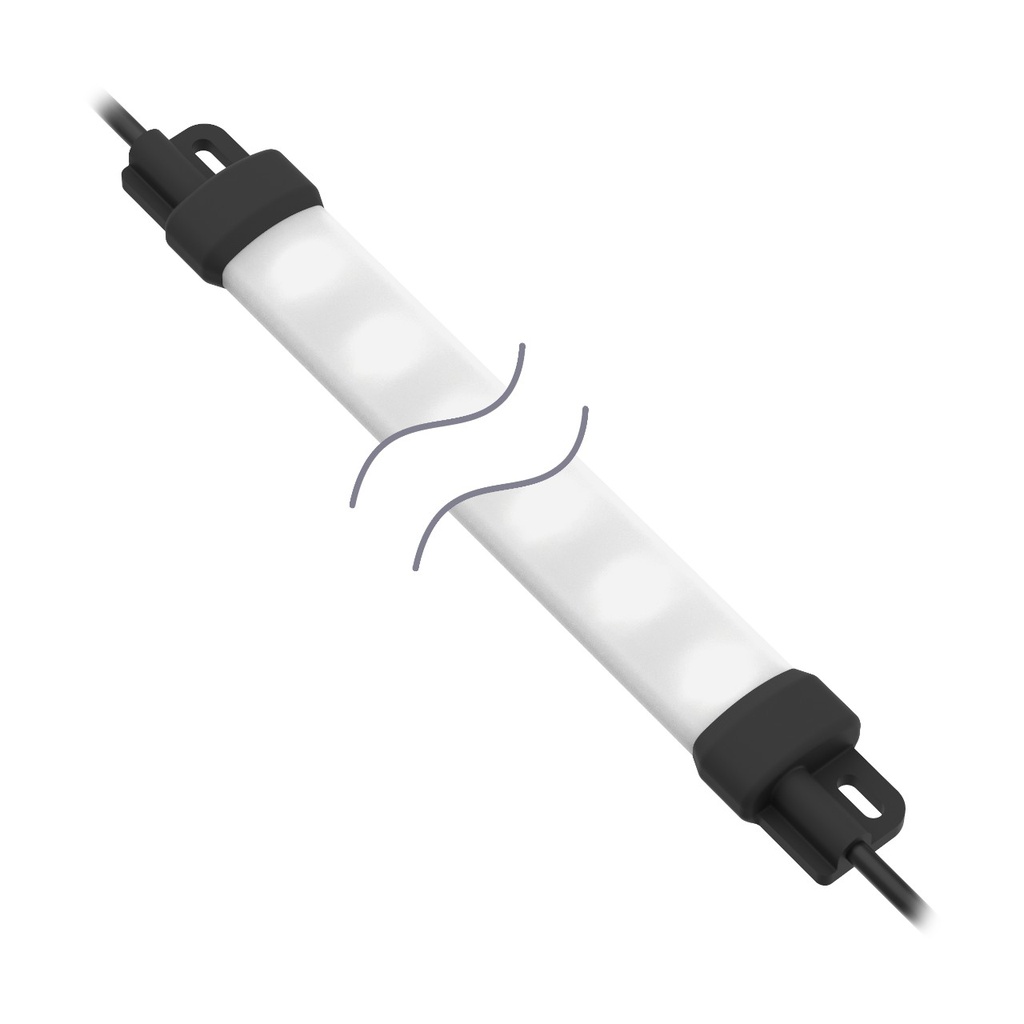

Wls15 Work Light Strip (WLS15XAM1200DSQP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 806238
Weight: 0.84 lb(s)
Features:
- WLS15 Work Light Strip; Diffused Window; Length: 1200 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Amber; Euro 4-pin 150 mm (6 in) PVC Pigtail
Wls15 Work Light Strip (WLS15XAM1200DSQP)
Brand_Name:Banner
Power:DC
Feature: Display:No
Max Current Color:1920 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:60 °C
Ingress Protection:IP66/67
Housing Style:Linear Strip
Housing Material_:Polycarbonate
Feature: Indication:Yes
Supply Voltage:12/24 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:440
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Amber
Color 1 - Wavelength/Color Temp/Coordinates:590 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Number of Input Pins/Conductors:4
Mounting Thread:No Thread
Storage Temp:-40 to 70 °C
Secondary Material:Polyamide
Illuminated Length (LxWxH):1126.4 mm
Feature: Illumination:Yes
Connection Type:Pigtail QD
Country of Origin:MX
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Max Current Color | 1920 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Ingress Protection | IP66/67 |
| Housing Style | Linear Strip |
| Housing Material_ | Polycarbonate |
| Feature: Indication | Yes |
| Supply Voltage | 12/24 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 440 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Amber |
| Color 1 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Number of Input Pins/Conductors | 4 |
| Mounting Thread | No Thread |
| Storage Temp | -40 to 70 °C |
| Secondary Material | Polyamide |
| Illuminated Length (LxWxH) | 1126.4 mm |
| Feature: Illumination | Yes |
| Connection Type | Pigtail QD |
| Country of Origin | MX |
