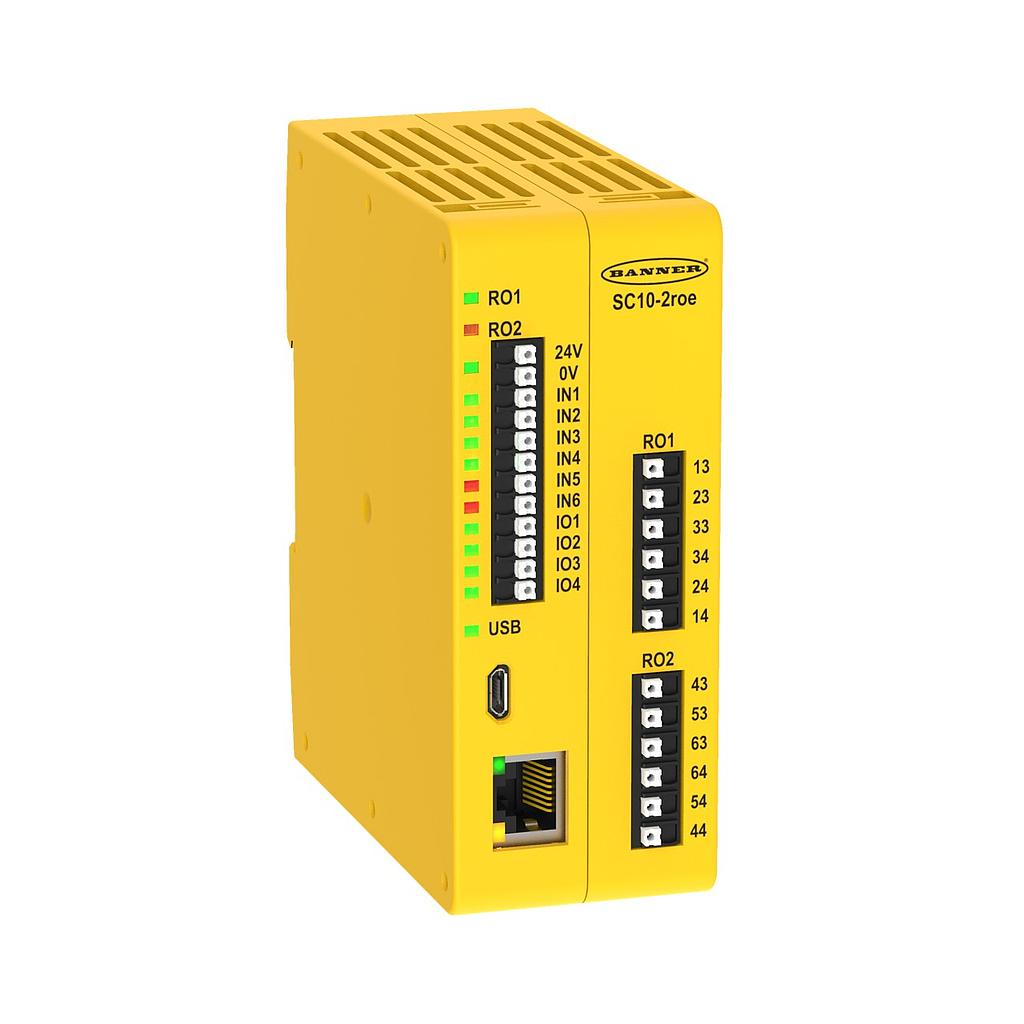

Safety Controller, SC10-2ROE
Manufacturer: Banner Engineering Corp
Mfg Product Code: 806222
Weight: 0.83 lb(s)
SC10-2ROE Safety Controller
Features:
- SC10-2ROE Safety Controller
- ISD Compatible (2 ISD Chains)10 Inputs 2 Relay Outputs (3 NO, 6 Amp each)
- Terminal LEDs4 Convertible Inputs
- Push-in Spring Clamp Terminals24 V dc
- 240 to 580 mA
Safety Controller, SC10-2ROE
SC10-2ROE Safety Controller
Measurement Maximum:0
Max Operating Temperature:55 °C
Power Consumption:0.24 A (no load, relays on), 0.53 A (full load, relays on)
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Controller
Feature: PCCC:Yes
Feature: Has EtherNet/IP:Yes
Feature: Modbus/TCP:Yes
Supply Voltage:24 VDC +/- 20%
Safety Module Type:Base Controller
Feature: Two-Hand Controls:Yes
Independently Controlled Safe Outputs:2
PL Rating:e
THC Rating:IIIC
Non Safe Output Rating:80 mA @ 24 V dc (individual) maximum; overcurrent protected
Safety Input - Dual Channel (Solid-State):50 mA @ 15 - 30 VDC
SISTEMA:PFHd = 5.0 x 10-10
Relative Humidity:90% @ 50 °C
Vibration:9-150 Hz at 1g occasional/0.5g continuous
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Input Configuration:Configurable
Terminal Type:Spring Clamp
Input Operation:Simultaneous or Concurrent
Number of Safe Inputs:10
Safety Input - Reset:5-50 mA @ 24 VDC
Safety Mat:Yes
Input Resistance:150 Ω max. per lead
Recovery Time:250 ms (typical) / 400 ms (max)
Response Time:Other
Non Safe Output Configuration:Up to 4 PNP
Number of Stored Colors:10
Safety Input - Single Channel:5-50 mA @ 24 VDC
Number of Convertible Inputs:4
Feature: Common Ethernet Protocol:No
Electrical Life:50,000 @ full resistive load
Feature: E-Stops/Rope Pulls:Yes
Feature: Expandable:No
Feature: Removable Terminals:No
Feature: Gate Switch (NC/NC) Input:Yes
Feature: Gate Switch (NC/NO) Input:Yes
Feature: Gate Switch (OSSD) Input:Yes
Feature: Light Curtains/Scanner with EDM Input:Yes
Feature: Light Curtains/Scanner without EDM Input:Yes
Feature: Motor Speed:No
Feature: Muting:Yes
Safety Input - Dual Channel (Dry Contact):5-50 mA @ 24 VDC
Feature: Safety Mat:Yes
Feature: In-Series Diagnostics:Yes
Mechanical Life:20 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 55 °C |
| Power Consumption | 0.24 A (no load, relays on), 0.53 A (full load, relays on) |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Controller |
| Feature: PCCC | Yes |
| Feature: Has EtherNet/IP | Yes |
| Feature: Modbus/TCP | Yes |
| Supply Voltage | 24 VDC +/- 20% |
| Safety Module Type | Base Controller |
| Feature: Two-Hand Controls | Yes |
| Independently Controlled Safe Outputs | 2 |
| PL Rating | e |
| THC Rating | IIIC |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) maximum; overcurrent protected |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 15 - 30 VDC |
| SISTEMA | PFHd = 5.0 x 10-10 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Input Configuration | Configurable |
| Terminal Type | Spring Clamp |
| Input Operation | Simultaneous or Concurrent |
| Number of Safe Inputs | 10 |
| Safety Input - Reset | 5-50 mA @ 24 VDC |
| Safety Mat | Yes |
| Input Resistance | 150 Ω max. per lead |
| Recovery Time | 250 ms (typical) / 400 ms (max) |
| Response Time | Other |
| Non Safe Output Configuration | Up to 4 PNP |
| Number of Stored Colors | 10 |
| Safety Input - Single Channel | 5-50 mA @ 24 VDC |
| Number of Convertible Inputs | 4 |
| Feature: Common Ethernet Protocol | No |
| Electrical Life | 50,000 @ full resistive load |
| Feature: E-Stops/Rope Pulls | Yes |
| Feature: Expandable | No |
| Feature: Removable Terminals | No |
| Feature: Gate Switch (NC/NC) Input | Yes |
| Feature: Gate Switch (NC/NO) Input | Yes |
| Feature: Gate Switch (OSSD) Input | Yes |
| Feature: Light Curtains/Scanner with EDM Input | Yes |
| Feature: Light Curtains/Scanner without EDM Input | Yes |
| Feature: Motor Speed | No |
| Feature: Muting | Yes |
| Safety Input - Dual Channel (Dry Contact) | 5-50 mA @ 24 VDC |
| Feature: Safety Mat | Yes |
| Feature: In-Series Diagnostics | Yes |
| Mechanical Life | 20 mil |
