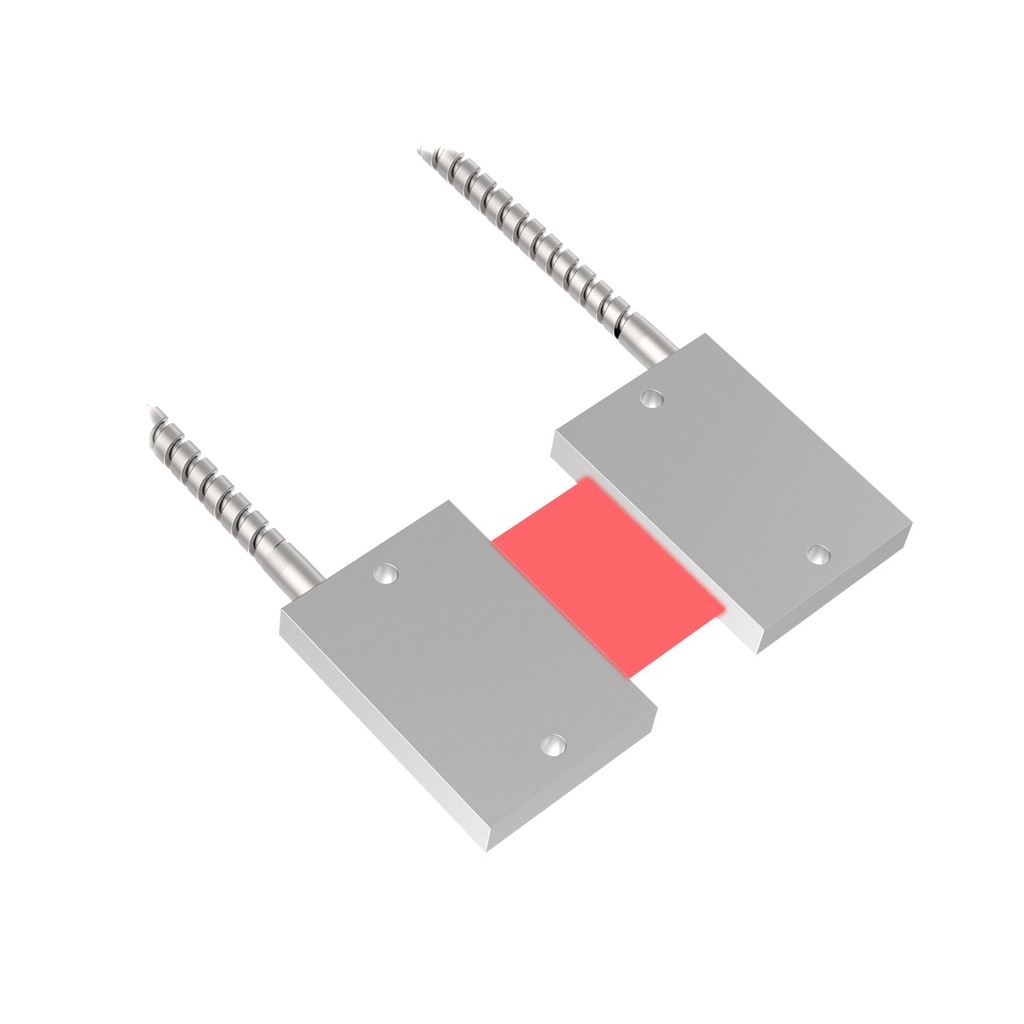

Plastic Fiber (PIRS1X326T5-40)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 805570
Weight: 0.14 lb(s)
Plastic Fiber
Features:
- Plastic Fiber
- Opposed Mode
- Core Diameter: 32 x 0.25 mm
- Fiber Length 2 m
- Rectangle
- Array Length 40 mm
- Array, Sideview
- T5 Termination, Metal Array Housing.
Plastic Fiber (PIRS1X326T5-40)
Plastic Fiber
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:39 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:128 fbm
Measured Max Distance:592 mm
Min Bend Radius:60 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:17.0 x 60.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Terminated
Sensing End Material (Specific):Zinc Alloy
Feature: Integrated Lens:Yes
Core Diameter:32 x 0.3 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:17.0 x 60.0 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Sideview
Sensing End Segment 3:Array
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 3m to <= 5m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:592 mm
Max Distance: DF-G3:4603 mm
Max Distance: DF-G2:960 mm
Minimum Bend Radius:60 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 39 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 128 fbm |
| Measured Max Distance | 592 mm |
| Min Bend Radius | 60 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 17.0 x 60.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Terminated |
| Sensing End Material (Specific) | Zinc Alloy |
| Feature: Integrated Lens | Yes |
| Core Diameter | 32 x 0.3 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 17.0 x 60.0 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Array |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 3m to <= 5m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 592 mm |
| Max Distance: DF-G3 | 4603 mm |
| Max Distance: DF-G2 | 960 mm |
| Minimum Bend Radius | 60 mm |
