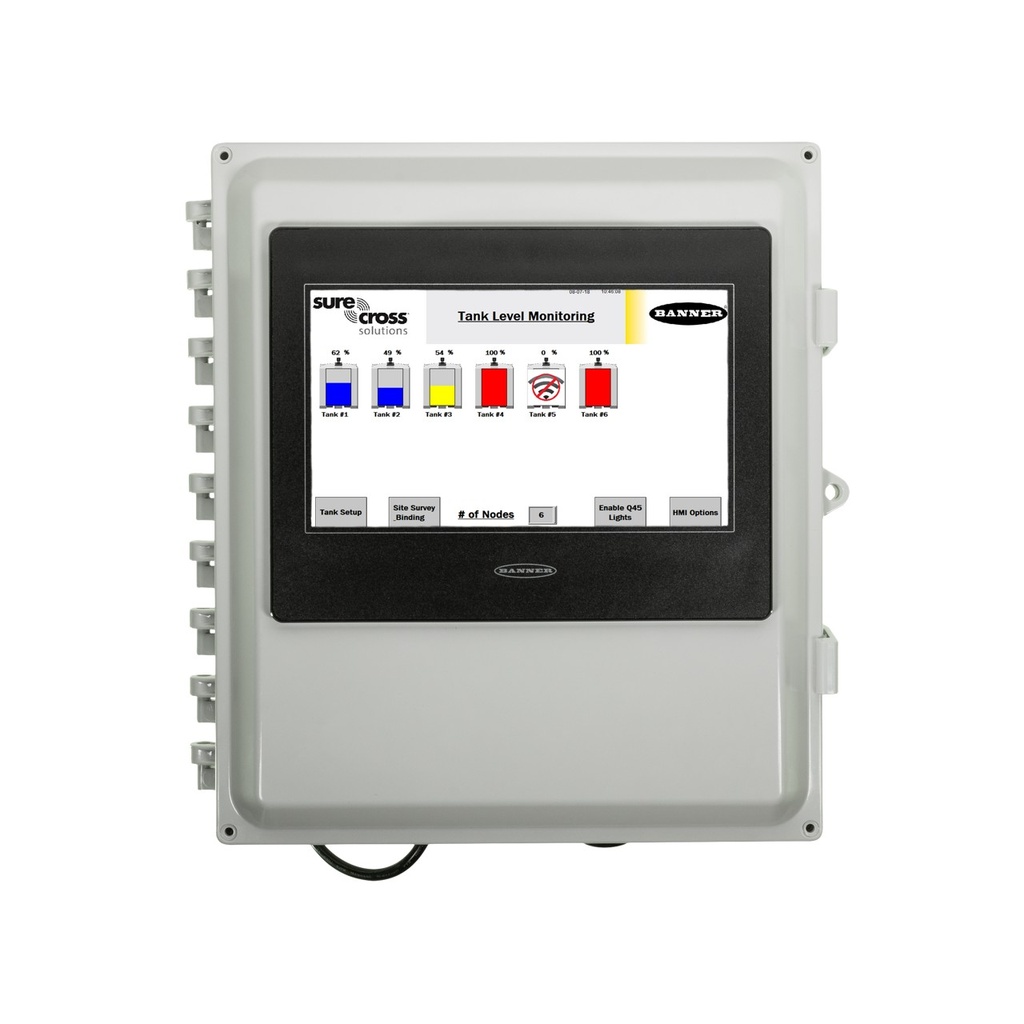

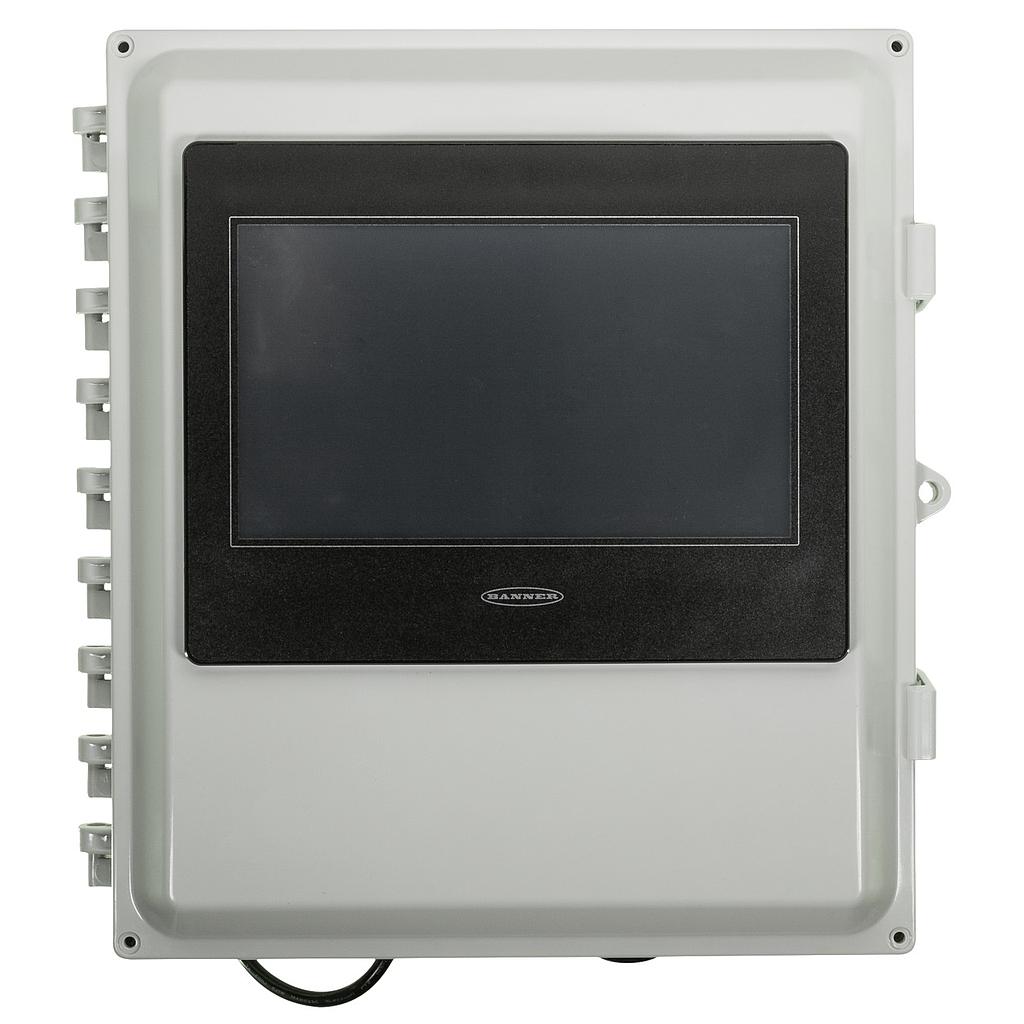

Wireless Tank Level Solutions Kit 900 MHz (SOLUTIONSKIT9-TANK)

https://www.branom.com/web/image/product.template/48053/image_1920?unique=22c6d96
(0 review)

Manufacturer: Banner Engineering Corp

Mfg Product Code: 805159

Weight: 12.74 lb(s)

On Hand: 0

Wireless Tank Level Solutions Kit 900 MHz

Features:

  • Wireless Tank Level Solutions Kit 900 MHz
  • 14 in x 12 in Polycarbonate Enclosure
  • DXM700 (Pre-programmed for Tank Monitoring)
  • 10 in Pre-programmed Color Touchscreen HMI
  • 24 VDC

$ 3,316.00 3316.0 USD $ 3,316.00

$ 3,316.00

Not Available For Sale

  • Power
  • Measurement Maximum
  • Max Operating Temperature
  • Measurement Minimum
  • Input Voltage
  • Housing Material_
  • Feature: RS-232
  • Feature: RS-485
  • Feature: Has EtherNet/IP
  • Feature: Modbus/TCP
  • Feature: Hazardous Area
  • Feature: Modbus RTU
  • Feature: Wireless
  • Relative Humidity
  • Feature: Point-to-Point Topology
  • Feature: Point-to-Multipoint Topology
  • Feature: Ships With Battery
  • Wireless Radio Frequency
  • Feature: Tree Topology
  • Feature: Star Topology
  • Battery Type/Size
  • Screen Type
  • Country of Origin
  • Display Size
  • Resolution
  • Inside Housing Dimensions
  • Feature: Tank Level

This combination does not exist.

Contact Us

Wireless Tank Level Solutions Kit 900 MHz (SOLUTIONSKIT9-TANK)

  • Power
  • Measurement Maximum
  • Max Operating Temperature
  • Measurement Minimum
  • Input Voltage
  • Housing Material_
  • Feature: RS-232
  • Feature: RS-485
  • Feature: Has EtherNet/IP
  • Feature: Modbus/TCP
  • Feature: Hazardous Area
  • Feature: Modbus RTU
  • Feature: Wireless
  • Relative Humidity
  • Feature: Point-to-Point Topology
  • Feature: Point-to-Multipoint Topology
  • Feature: Ships With Battery
  • Wireless Radio Frequency
  • Feature: Tree Topology
  • Feature: Star Topology
  • Battery Type/Size
  • Screen Type
  • Country of Origin
  • Display Size
  • Resolution
  • Inside Housing Dimensions
  • Feature: Tank Level

$ 3,316.00 3316.0 USD $ 3,316.00

$ 3,316.00

Not Available For Sale

This combination does not exist.

Wireless Tank Level Solutions Kit 900 MHz

Power:DC
Measurement Maximum:0
Max Operating Temperature:50 °C
Measurement Minimum:0
Input Voltage:24 VDC
Housing Material_:Polycarbonate
Feature: RS-232:No
Feature: RS-485:Yes
Feature: Has EtherNet/IP:Yes
Feature: Modbus/TCP:Yes
Feature: Hazardous Area:No
Feature: Modbus RTU:Yes
Feature: Wireless:Yes
Relative Humidity:90% @ 50 °C
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Feature: Ships With Battery:Yes
Wireless Radio Frequency:900 MHz
Feature: Tree Topology:No
Feature: Star Topology:Yes
Battery Type/Size:Lithium/CR2032
Screen Type:Standard Touch Control Panel
Country of Origin:US
Display Size:25.65 mm
Resolution:1024 x 600 px
Inside Housing Dimensions:35.56 x 30.48 x 15.24 mm
Feature: Tank Level:Yes

Specifications

Power DC
Measurement Maximum 0
Max Operating Temperature 50 °C
Measurement Minimum 0
Input Voltage 24 VDC
Housing Material_ Polycarbonate
Feature: RS-232 No
Feature: RS-485 Yes
Feature: Has EtherNet/IP Yes
Feature: Modbus/TCP Yes
Feature: Hazardous Area No
Feature: Modbus RTU Yes
Feature: Wireless Yes
Relative Humidity 90% @ 50 °C
Feature: Point-to-Point Topology Yes
Feature: Point-to-Multipoint Topology Yes
Feature: Ships With Battery Yes
Wireless Radio Frequency 900 MHz
Feature: Tree Topology No
Feature: Star Topology Yes
Battery Type/Size Lithium/CR2032
Screen Type Standard Touch Control Panel
Country of Origin US
Display Size 25.65 mm
Resolution 1024 x 600 px
Inside Housing Dimensions 35.56 x 30.48 x 15.24 mm
Feature: Tank Level Yes
