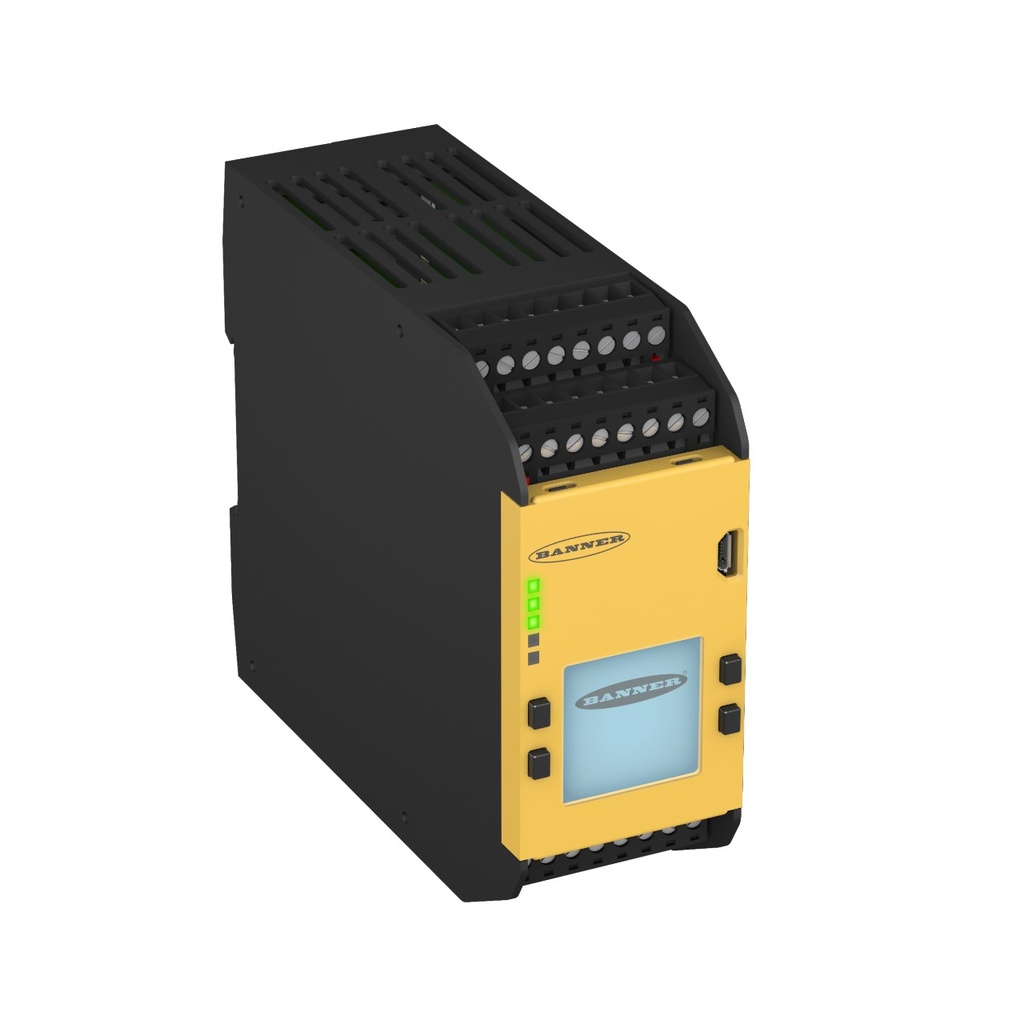

Sc26-2D Safety Controller: Non Expandable (SC26-2D-805118)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 805118
Weight: 0.58 lb(s)
Features:
- SC26-2D Safety Controller: Non Expandable; 26 Input; 2 pairs of PNP Safety Outputs (.5 Amp each); Display; No Ethernet; USB; 8 convertible Inputs; Removable cage clamp terminals; 24 V dc; 120 mA
Sc26-2D Safety Controller: Non Expandable (SC26-2D-805118)
Max Operating Temperature:55 °C
Power Consumption:0.12 A (controller only)
Ingress Protection:IP20
Device Type:Safety Controller
Feature: PCCC:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Supply Voltage:24 VDC +/- 20%
Safety Module Type:Base Controller
Feature: Two-Hand Controls:Yes
Independently Controlled Safe Outputs:4
PL Rating:e
THC Rating:IIIC
Non Safe Output Rating:80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Safety Input - Dual Channel (Solid-State):50 mA @ 15 - 30 VDC
SISTEMA:PFHd = 1.05 x 10-9
Relative Humidity:90% @ 50 °C
Vibration:9-150 Hz at 1g occasional/0.5g continuous
Feature: LCD Display:Yes
SIL Rating:3
Safety Category Rating:4
Input Configuration:Configurable
Terminal Type:Screw
Input Operation:Simultaneous or Concurrent
Number of Safe Inputs:26
Safety Input - Reset:5-50 mA @ 24 VDC
Safety Mat:Yes
Input Resistance:150 Ω max. per lead
Recovery Time:250 ms (typical) / 400 ms (max)
Response Time:Other
Non Safe Output Configuration:Up to 11 PNP
Number of Stored Colors:26
Safety Input - Single Channel:5-50 mA @ 24 VDC
Number of Convertible Inputs:8
Country of Origin:US
Feature: Common Ethernet Protocol:No
Feature: E-Stops/Rope Pulls:Yes
Feature: Expandable:No
Feature: Removable Terminals:Yes
Feature: Gate Switch (NC/NC) Input:Yes
Feature: Gate Switch (NC/NO) Input:Yes
Feature: Gate Switch (OSSD) Input:Yes
Feature: Light Curtains/Scanner with EDM Input:Yes
Feature: Light Curtains/Scanner without EDM Input:Yes
Feature: Motor Speed:No
Feature: Muting:Yes
Safety Input - Dual Channel (Dry Contact):5-50 mA @ 24 VDC
Feature: Safety Mat:Yes
Feature: In-Series Diagnostics:No
Specifications
| Max Operating Temperature | 55 °C |
| Power Consumption | 0.12 A (controller only) |
| Ingress Protection | IP20 |
| Device Type | Safety Controller |
| Feature: PCCC | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Supply Voltage | 24 VDC +/- 20% |
| Safety Module Type | Base Controller |
| Feature: Two-Hand Controls | Yes |
| Independently Controlled Safe Outputs | 4 |
| PL Rating | e |
| THC Rating | IIIC |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 15 - 30 VDC |
| SISTEMA | PFHd = 1.05 x 10-9 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Feature: LCD Display | Yes |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Input Configuration | Configurable |
| Terminal Type | Screw |
| Input Operation | Simultaneous or Concurrent |
| Number of Safe Inputs | 26 |
| Safety Input - Reset | 5-50 mA @ 24 VDC |
| Safety Mat | Yes |
| Input Resistance | 150 Ω max. per lead |
| Recovery Time | 250 ms (typical) / 400 ms (max) |
| Response Time | Other |
| Non Safe Output Configuration | Up to 11 PNP |
| Number of Stored Colors | 26 |
| Safety Input - Single Channel | 5-50 mA @ 24 VDC |
| Number of Convertible Inputs | 8 |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Feature: E-Stops/Rope Pulls | Yes |
| Feature: Expandable | No |
| Feature: Removable Terminals | Yes |
| Feature: Gate Switch (NC/NC) Input | Yes |
| Feature: Gate Switch (NC/NO) Input | Yes |
| Feature: Gate Switch (OSSD) Input | Yes |
| Feature: Light Curtains/Scanner with EDM Input | Yes |
| Feature: Light Curtains/Scanner without EDM Input | Yes |
| Feature: Motor Speed | No |
| Feature: Muting | Yes |
| Safety Input - Dual Channel (Dry Contact) | 5-50 mA @ 24 VDC |
| Feature: Safety Mat | Yes |
| Feature: In-Series Diagnostics | No |
