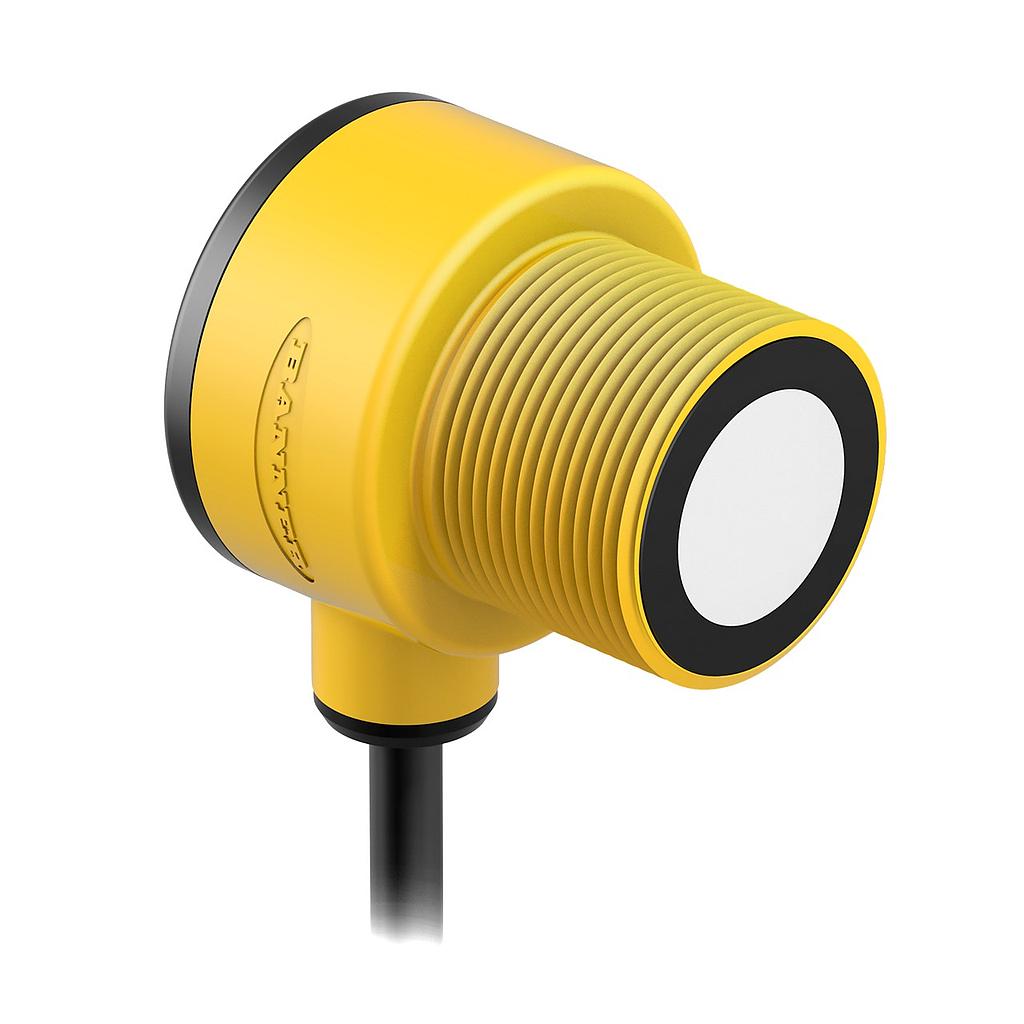

T30UX Series w/ Analog Output (T30UXUC W/30)
T30UX Series w/ Analog Output
Measurement Maximum:0
Max Off-State Leakage Current (µA):<200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power/Current Consumption (exclusive of load):40 mA
Temperature Warm-up Drift upon Power-up:< 1% of the sensing distance upon power-up
Power Supply:12-30 VDC
Temperature Effect (mm/°C):0.02% of sensing distance/°C
Delay at Power-Up:500 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Barrel
Max Sensing Distance:3000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:PBT
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Analog Output:0 to 10 VDC
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:No
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Input/Output:Analog
Barrel Diameter:30
Min Response Time:135 ms
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Feature: Ultrasonic:Yes
Mechanical Shock:IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs:< 3 V @ 100 mA
Analog Resolution/Discrete Repeatability:0.1% of distance (1.5 min)
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:300 mm
Feature: Clear Object Detection:Yes
Min Window Size:10 mm
Remote Teach and Laser Control Input Impedence:55 kΩ
Max Measurement Range:1-20 m
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<1.6 V @ 100 mA
Analog Voltage Output Rating:2.5 kΩ min. load impedance
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection Type:Flying Leads
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:9 m
Barrel Thread:M30
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Rep Rate:45 ms
Ultrasonic Frequency:114 kHz
Analog Linearity:0.25% of Distance
Specifications
| Measurement Maximum | 0 |
| Max Off-State Leakage Current (µA) | <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP) |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power/Current Consumption (exclusive of load) | 40 mA |
| Temperature Warm-up Drift upon Power-up | < 1% of the sensing distance upon power-up |
| Power Supply | 12-30 VDC |
| Temperature Effect (mm/°C) | 0.02% of sensing distance/°C |
| Delay at Power-Up | 500 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Barrel |
| Max Sensing Distance | 3000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | PBT |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Analog Output | 0 to 10 VDC |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | No |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Analog |
| Barrel Diameter | 30 |
| Min Response Time | 135 ms |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Feature: Ultrasonic | Yes |
| Mechanical Shock | IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave |
| Output Saturation Voltage PNP Outputs | < 3 V @ 100 mA |
| Analog Resolution/Discrete Repeatability | 0.1% of distance (1.5 min) |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 300 mm |
| Feature: Clear Object Detection | Yes |
| Min Window Size | 10 mm |
| Remote Teach and Laser Control Input Impedence | 55 kΩ |
| Max Measurement Range | 1-20 m |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <1.6 V @ 100 mA |
| Analog Voltage Output Rating | 2.5 kΩ min. load impedance |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection Type | Flying Leads |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 9 m |
| Barrel Thread | M30 |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Rep Rate | 45 ms |
| Ultrasonic Frequency | 114 kHz |
| Analog Linearity | 0.25% of Distance |
