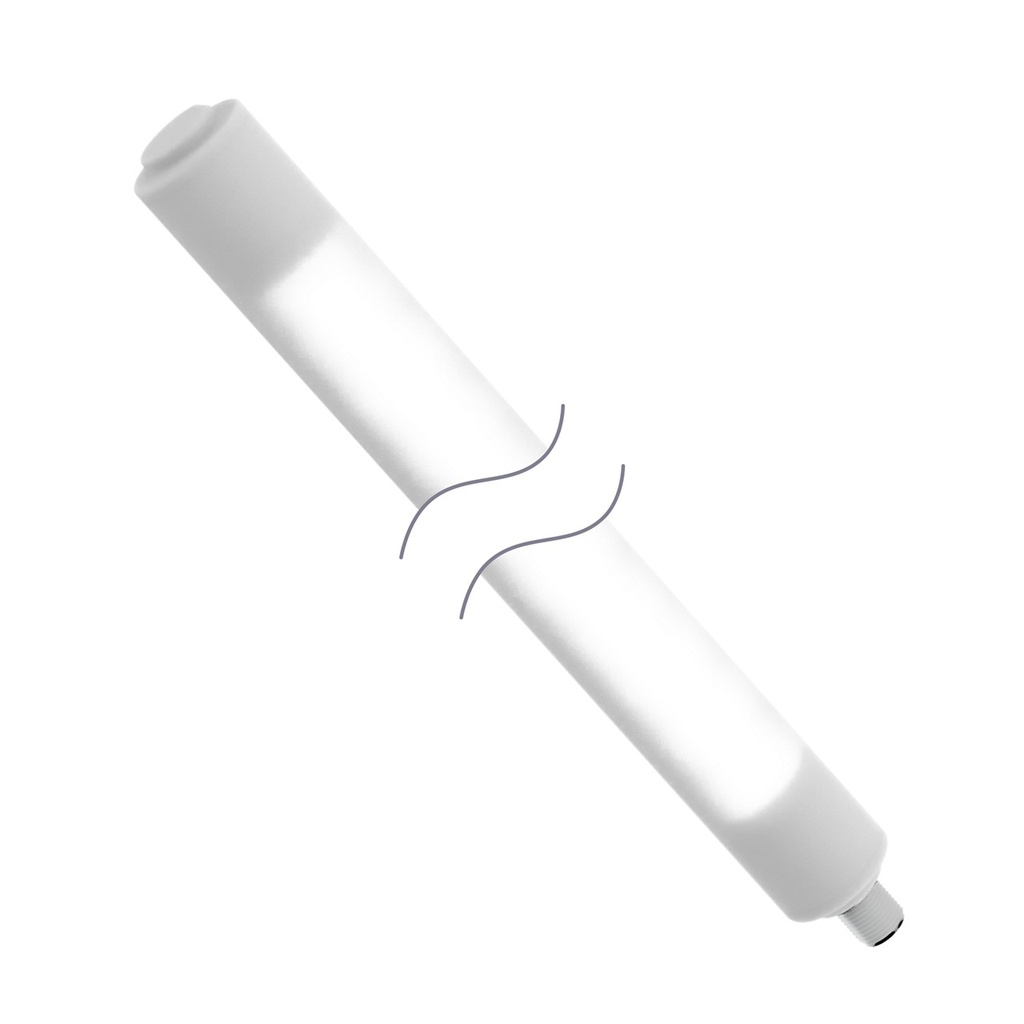

Wls27 Work Light Strip (WLS27XW990DSQ-804746)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 804746
Weight: 1.58 lb(s)
Features:
- WLS27 Work Light Strip; Diffused Window; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: White; Euro 4-pin integral connector; bracket LMBWLS27H Included
Wls27 Work Light Strip (WLS27XW990DSQ-804746)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:2800 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Source:VDC
Ingress Protection:IP66/67/69K
Housing Style:Linear Strip, Linear Strip
Housing Material_:FDA Copolyester
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:27.0 x 1056.5 mm
Feature: Wireless:No
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:2800
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Product Size (mm):27 mm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Dimming Option:High-Low-Off
Illuminated Length (LxWxH):990.0 mm
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:MX
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 2800 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Source | VDC |
| Ingress Protection | IP66/67/69K |
| Housing Style | Linear Strip, Linear Strip |
| Housing Material_ | FDA Copolyester |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 27.0 x 1056.5 mm |
| Feature: Wireless | No |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 2800 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 27 mm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH) | 990.0 mm |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | MX |
