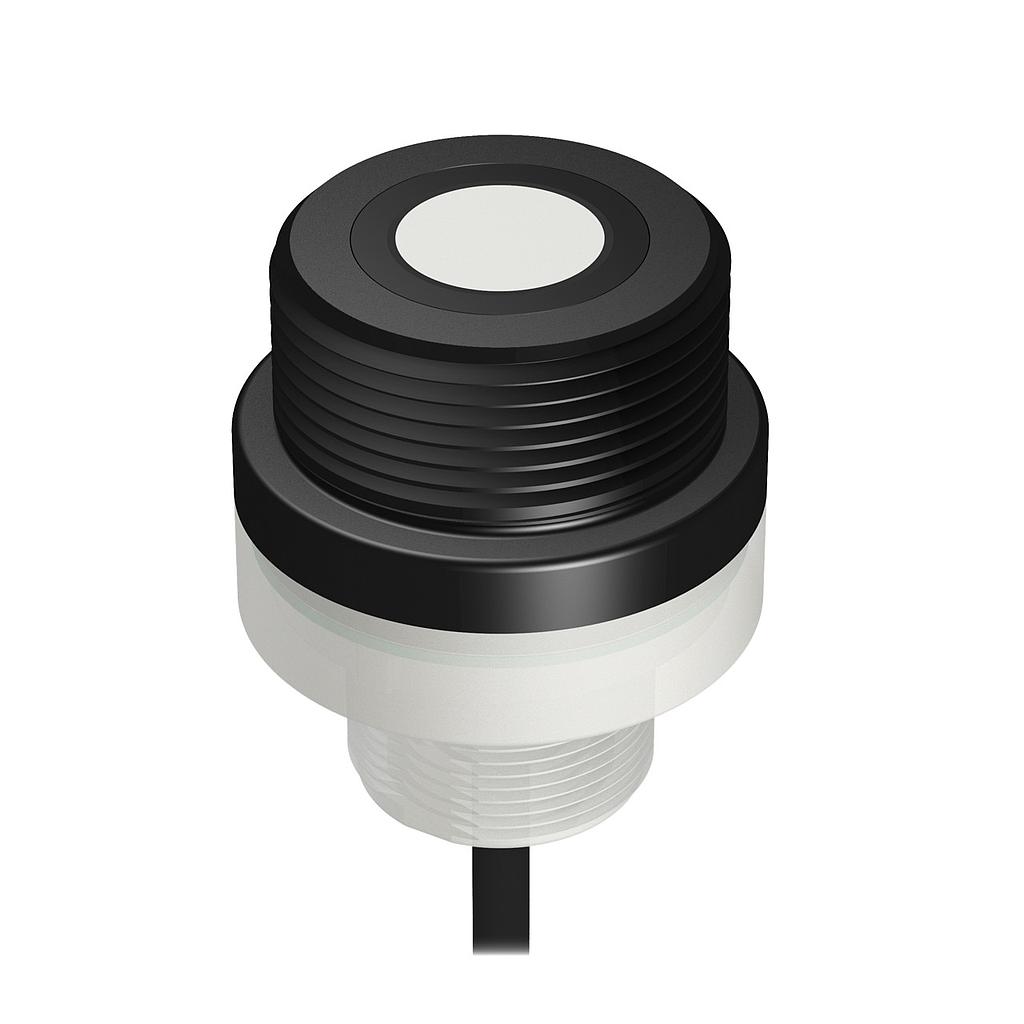

K50 Ultrasonic Sensor (K50UX2ARA)
K50 Ultrasonic Sensor
Brand_Name:Banner
Manufacturer Product Family:K50U
Power:DC
Measurement Maximum:0
Min Operating Temperature:-40 °C, -40 °C
Max Operating Temperature:70 °C
Power Supply:3.5-5.5 VDC / 10-30 VDC
Temperature Effect (mm/°C):0.02% of sensing distance/°C
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Barrel
Max Sensing Distance:1000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:PBT
Feature: RS-232:No
Feature: RS-485:Yes
RS-422:No
Feature: IO Link:No
Feature: Wireless:Yes
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Software
Feature: Timing (Hold/Delay):No
Input/Output:Serial (Modbus)
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Feature: Ultrasonic:Yes
Mechanical Shock:IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Resolution/Discrete Repeatability:0.1% of distance (1.5 min)
Min Sensing Distance:100 mm
Feature: Clear Object Detection:Yes
Max Measurement Range:500-1000 mm
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:NEMA 6
Cord/Cable Length:0.23 m
Barrel Thread:1.25" NPT
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Ultrasonic Frequency:224 kHz
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | K50U |
| Power | DC |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C, -40 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 3.5-5.5 VDC / 10-30 VDC |
| Temperature Effect (mm/°C) | 0.02% of sensing distance/°C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Barrel |
| Max Sensing Distance | 1000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | PBT |
| Feature: RS-232 | No |
| Feature: RS-485 | Yes |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Wireless | Yes |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Software |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Serial (Modbus) |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Feature: Ultrasonic | Yes |
| Mechanical Shock | IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave |
| Analog Resolution/Discrete Repeatability | 0.1% of distance (1.5 min) |
| Min Sensing Distance | 100 mm |
| Feature: Clear Object Detection | Yes |
| Max Measurement Range | 500-1000 mm |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 0.23 m |
| Barrel Thread | 1.25" NPT |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Ultrasonic Frequency | 224 kHz |
