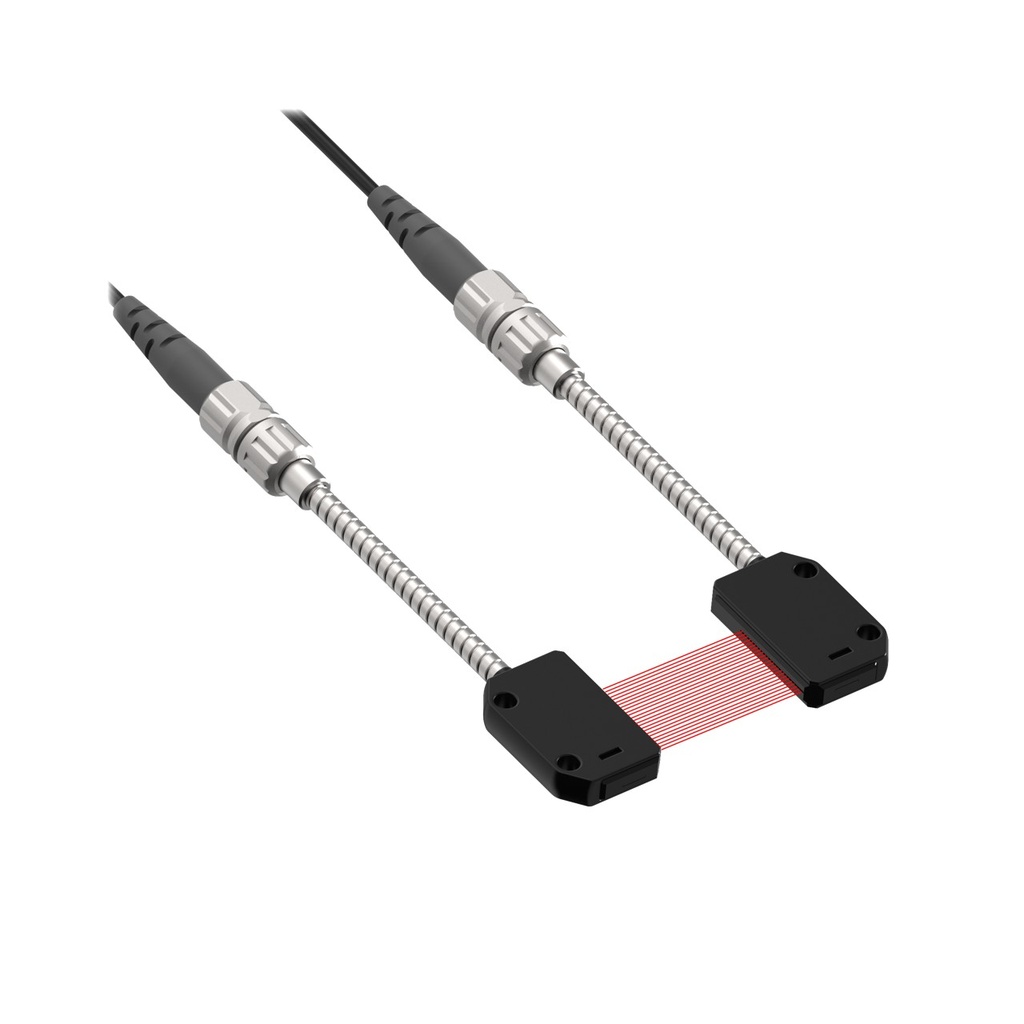

Plastic Fiber Group Array (PGIRS66U-15)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 804016
Weight: 0.3 lb(s)
Plastic Fiber Group Array
Features:
- Plastic Fiber Group Array
- Opposed Mode
- 15 mm Fiber Array 59X 0.25 mm Core
- Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber
- Free Cut
Plastic Fiber Group Array (PGIRS66U-15)
Plastic Fiber Group Array
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:15 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Angle
Tariff Fiber Meters:19.7 fbm
Measured Max Distance:476 mm
Min Bend Radius:40 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:16.0 x 25.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Free Cut
Sensing End Material (Specific):Zinc Alloy
Feature: Integrated Lens:Yes
Core Diameter:59 x 0.25 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:16.0 x 25.0 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Array
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 3m to <= 5m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:476 mm
Max Distance: DF-G3:3696 mm
Max Distance: DF-G2:771 mm
Minimum Bend Radius:40 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 15 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Angle |
| Tariff Fiber Meters | 19.7 fbm |
| Measured Max Distance | 476 mm |
| Min Bend Radius | 40 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 16.0 x 25.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Free Cut |
| Sensing End Material (Specific) | Zinc Alloy |
| Feature: Integrated Lens | Yes |
| Core Diameter | 59 x 0.25 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 16.0 x 25.0 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Array |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 3m to <= 5m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 476 mm |
| Max Distance: DF-G3 | 3696 mm |
| Max Distance: DF-G2 | 771 mm |
| Minimum Bend Radius | 40 mm |
