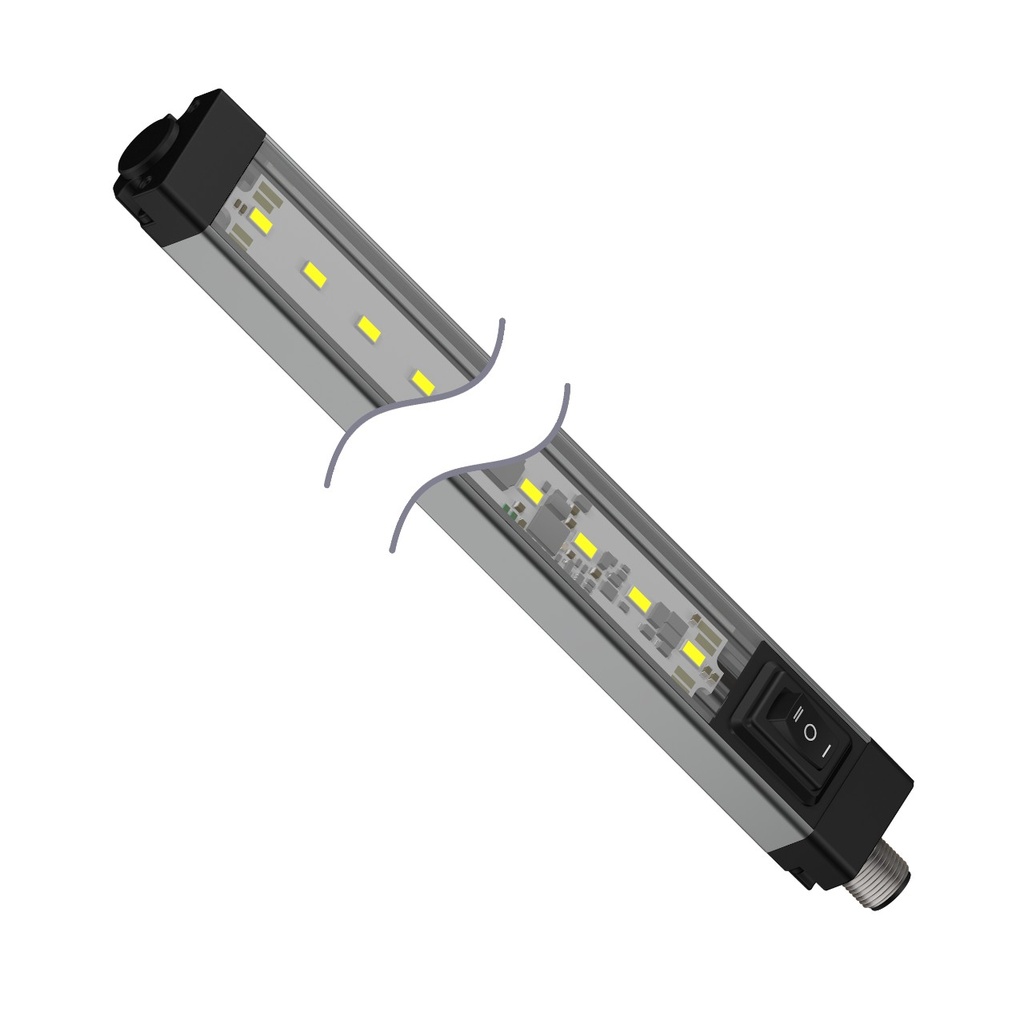

Wls28-2 Work Light Strip (WLS28-2XW430XPBQ-803956)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 803956
Weight: 0.09 lb(s)
Features:
- WLS28-2 Work Light Strip; Switched; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White (6400-6600K); Euro 4-pin Integral Connector
Wls28-2 Work Light Strip (WLS28-2XW430XPBQ-803956)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Ingress Protection:IP50
Housing Style:Linear Strip
Housing Material_:Aluminum
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:498.0 x 28.0 x 25.0 mm
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:1200
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Product Size (mm):28 mm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Dimming Option:High-Low-Off
Illuminated Length (LxWxH):430.0 mm
Illumination Switch Function:I=Low; O=OFF; II=High
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:MX
Cord/Cable Length:2 m
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Ingress Protection | IP50 |
| Housing Style | Linear Strip |
| Housing Material_ | Aluminum |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 498.0 x 28.0 x 25.0 mm |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 1200 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 28 mm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH) | 430.0 mm |
| Illumination Switch Function | I=Low; O=OFF; II=High |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | MX |
| Cord/Cable Length | 2 m |
