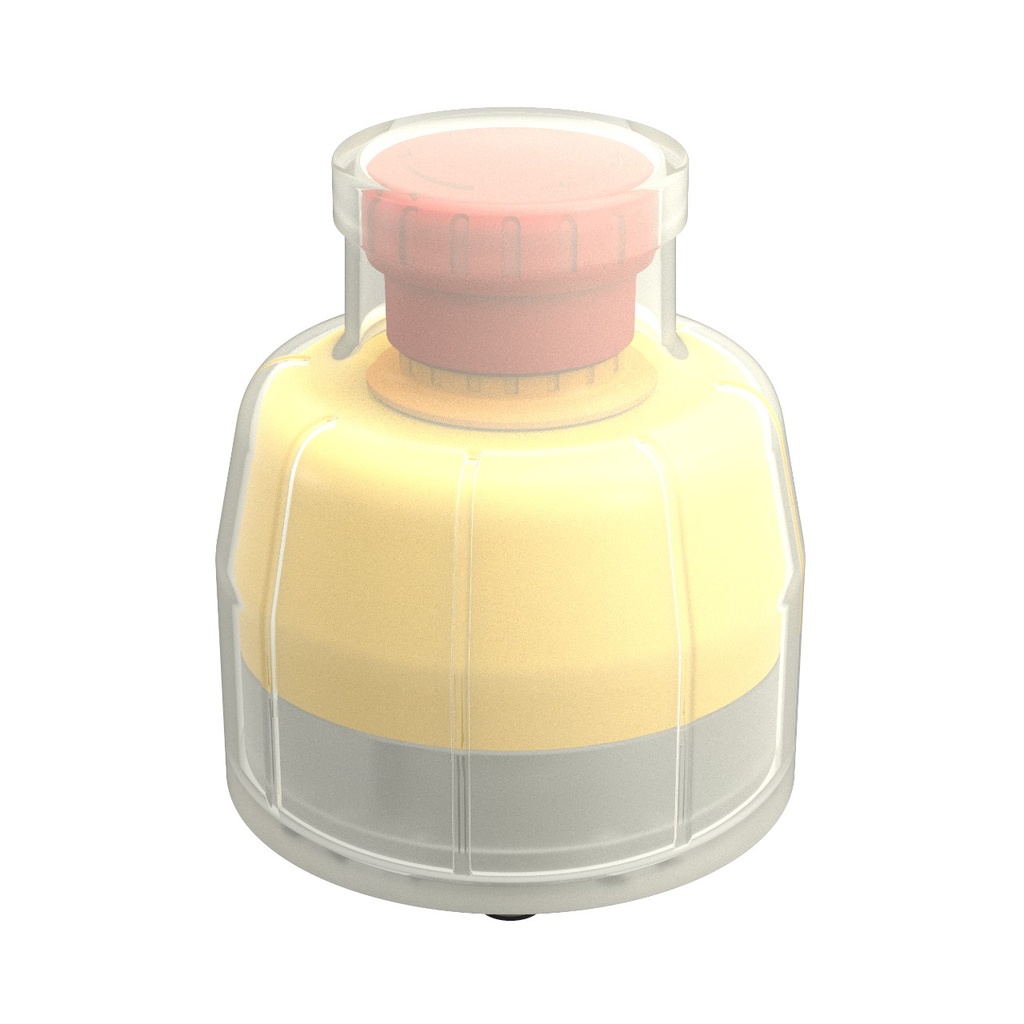

SSA-EB1 30 mm Mount Emergency Stop Push Button (SSA-EB1PL-12ECQ8-WC)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 803637
Weight: 0.8 lb(s)
SSA-EB1 30 mm Mount Emergency Stop Push Button
Features:
- SSA-EB1 30 mm Mount Emergency Stop Push Button
- Red-Solid illuminated base
- 40 mm Actuator
- IP65
- Contacts: 2NC/1NO-PNP
- M12 8-pin QD
- Includes SSA-EB1P-ECWC Washdown Cover
SSA-EB1 30 mm Mount Emergency Stop Push Button (SSA-EB1PL-12ECQ8-WC)
SSA-EB1 30 mm Mount Emergency Stop Push Button
Valve: Actuation:Twist/Pull-to-Release
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:55 °C
Measurement Minimum:0
Ingress Protection:IP65/67/69
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Light Color:Red
Feature: Washdown Rated:Yes
Physical Dimensions:120 x 80 mm
Feature: Quick Disconnect:Yes
Contact Quantity:2 NC, 1 NO
Actuated Color:Red
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 24 VDC
Mounting Thread/Style:30 mm
Feature: Illuminated:Yes
Feature: Lockable:No
Illumination Type:Base
Armed Color (Solid):Off
Connection Type:M12
Country of Origin:JP
Button Diameter:40 mm
Feature: Button Shroud:No
Stop Signal Color (Solid):Red
Feature: In-Series Diagnostics:No
Feature: Actuation:Twist/Pull-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist/Pull-to-Release |
| Uncategorized | |
|---|---|
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 55 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP65/67/69 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Light Color | Red |
| Feature: Washdown Rated | Yes |
| Physical Dimensions | 120 x 80 mm |
| Feature: Quick Disconnect | Yes |
| Contact Quantity | 2 NC, 1 NO |
| Actuated Color | Red |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 24 VDC |
| Mounting Thread/Style | 30 mm |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Illumination Type | Base |
| Armed Color (Solid) | Off |
| Connection Type | M12 |
| Country of Origin | JP |
| Button Diameter | 40 mm |
| Feature: Button Shroud | No |
| Stop Signal Color (Solid) | Red |
| Feature: In-Series Diagnostics | No |
| Feature: Actuation | Twist/Pull-to-Release |
