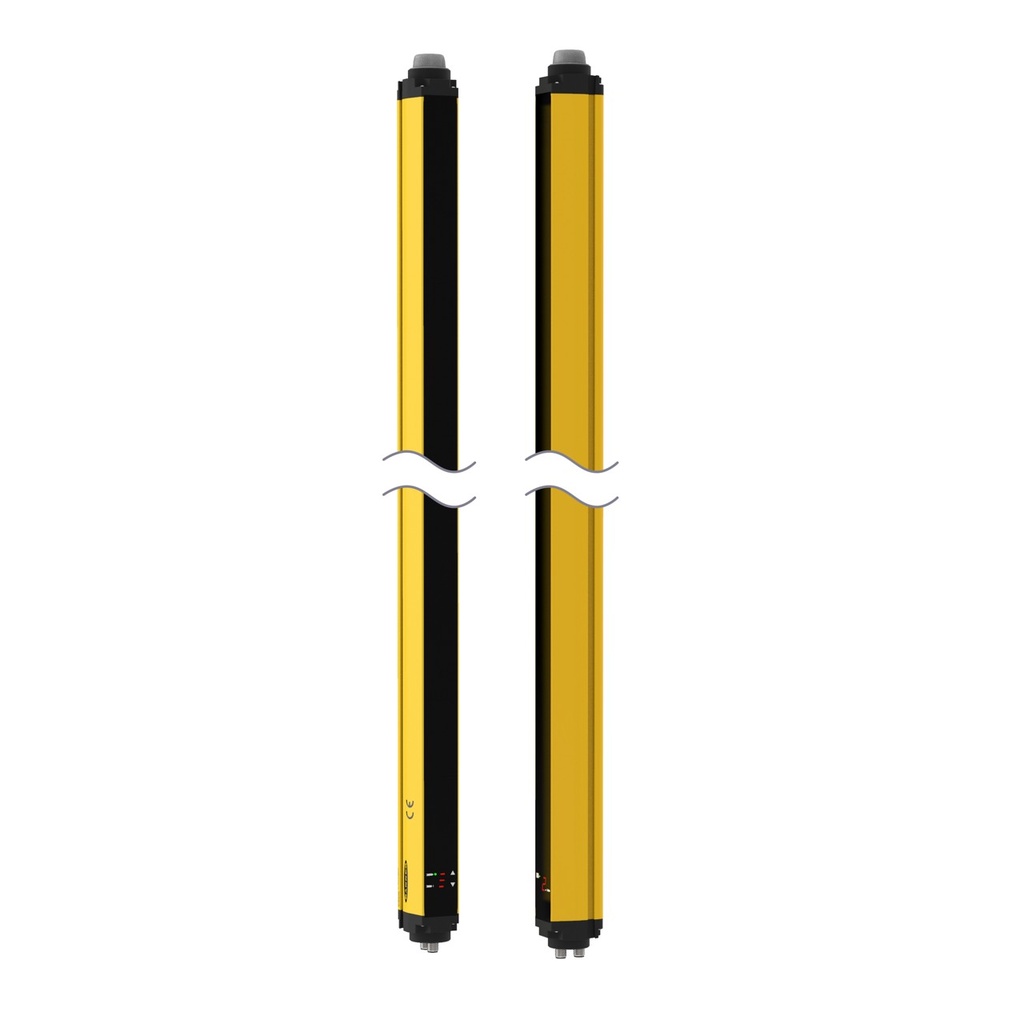

Sgs Safety Grid System, Emitter/Receiver Pair (SGSMP4-300Q128)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 803227
Weight: 11.26 lb(s)
Features:
- SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 300 mm; Range: 0.5 to 30 m; Connection: M12 12-pin QD (R), 8-pin (E); M12 5-pin QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
Sgs Safety Grid System, Emitter/Receiver Pair (SGSMP4-300Q128)
Defined Area Height Range:> 650 - <= 950 mm
Supply Current:500 mA
Min Operating Temperature:0 °C
Max Operating Temperature:55 °C
Ingress Protection:IP65
Housing Material_:Aluminum
Operating Voltage:24 VDC +/- 20%
Physical Dimensions:52 x 56.9 mm
PL Rating:e
Vibration:10-55 Hz at 0.35 mm
SIL Rating:SIL3; CL3
Recovery Time:N/A
Feature: ESD Safe:No
Feature: Test Input:No
OSSD Rating:24 VDC @ 0.5 A each
System Type:Emitter/Receiver Pair
Operating Distance:0.5 - 30 m
Response Time:14 ms
Effective Aperture Angle:Type 4 Per IEC 61496-2
Feature: Reduced Resolution:No
Feature: End-to-End Sensing:Yes
Number of Pins (Receiver/Emitter):12,8
Feature: Fault Output:No
Defined Area Height:900 mm
Feature: Auxiliary Output:No
Electrical Safety Class:III
Shock:10g at 16ms (6000 cycles)
Feature: Short Protection:Yes
External Monitoring Device:1 Channel
Feature: Fixed Blanking:No
Safety Level:Type 3
Feature: Integral Muting:Yes
Scan Code:Selectable
Trip/Latch Output:Selectable
Electrical Connector Type:M12
Country of Origin:HU
Resolution:4 - 300 mm
Housing Finish:Yellow Polyester
Max Operating Range:> 20 m
Finish Material:Yellow Polyester
Specifications
| Defined Area Height Range | > 650 - <= 950 mm |
| Supply Current | 500 mA |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Ingress Protection | IP65 |
| Housing Material_ | Aluminum |
| Operating Voltage | 24 VDC +/- 20% |
| Physical Dimensions | 52 x 56.9 mm |
| PL Rating | e |
| Vibration | 10-55 Hz at 0.35 mm |
| SIL Rating | SIL3; CL3 |
| Recovery Time | N/A |
| Feature: ESD Safe | No |
| Feature: Test Input | No |
| OSSD Rating | 24 VDC @ 0.5 A each |
| System Type | Emitter/Receiver Pair |
| Operating Distance | 0.5 - 30 m |
| Response Time | 14 ms |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Feature: Reduced Resolution | No |
| Feature: End-to-End Sensing | Yes |
| Number of Pins (Receiver/Emitter) | 12,8 |
| Feature: Fault Output | No |
| Defined Area Height | 900 mm |
| Feature: Auxiliary Output | No |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| Feature: Short Protection | Yes |
| External Monitoring Device | 1 Channel |
| Feature: Fixed Blanking | No |
| Safety Level | Type 3 |
| Feature: Integral Muting | Yes |
| Scan Code | Selectable |
| Trip/Latch Output | Selectable |
| Electrical Connector Type | M12 |
| Country of Origin | HU |
| Resolution | 4 - 300 mm |
| Housing Finish | Yellow Polyester |
| Max Operating Range | > 20 m |
| Finish Material | Yellow Polyester |
