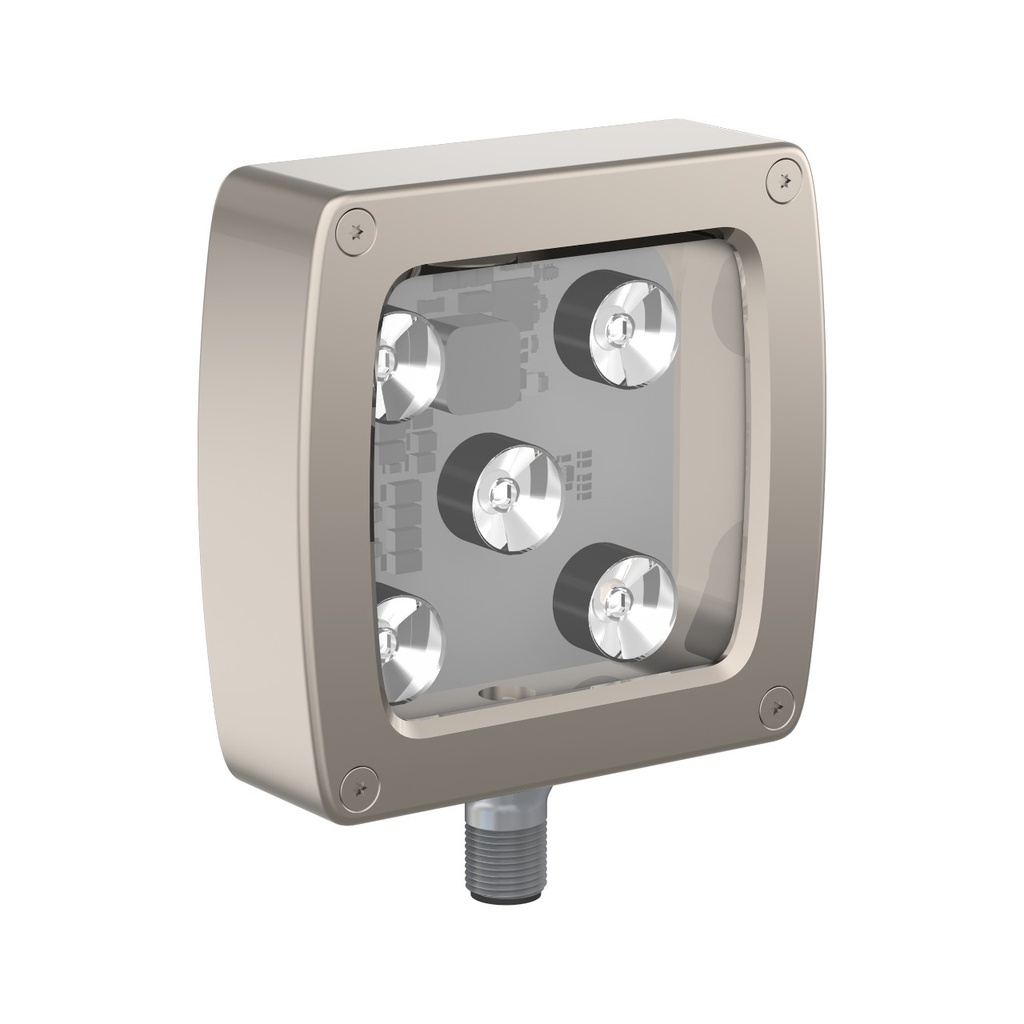

Wlc90 Work Light (WLC90WL8Q-802544)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 802544
Weight: 1.15 lb(s)
Features:
- WLC90 Work Light; Dimensions: 90X90 mm; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 8 Deg Lens; Window: Polycarbonate; Euro 4-pin Integral Connector; Custom Pin-out; Side exit
Wlc90 Work Light (WLC90WL8Q-802544)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Source:VDC
Ingress Protection:IP67/68/68G/69K
Housing Style:Rectangular
Housing Material_:Aluminum
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:91.0 x 110.0 x 28.2 mm
Feature: Wireless:No
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:625
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Product Size (mm):90 mm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Dimming Option:High-Low-Off
Lens Focusing Angle/Field of View:8°
Illuminated Length (LxWxH):65.0 mm
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:US
Cord/Cable Length:2 m
Lens Focusing Angle (°)/Field of View:8°
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Source | VDC |
| Ingress Protection | IP67/68/68G/69K |
| Housing Style | Rectangular |
| Housing Material_ | Aluminum |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 91.0 x 110.0 x 28.2 mm |
| Feature: Wireless | No |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 625 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 90 mm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Dimming Option | High-Low-Off |
| Lens Focusing Angle/Field of View | 8° |
| Illuminated Length (LxWxH) | 65.0 mm |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
| Lens Focusing Angle (°)/Field of View | 8° |
