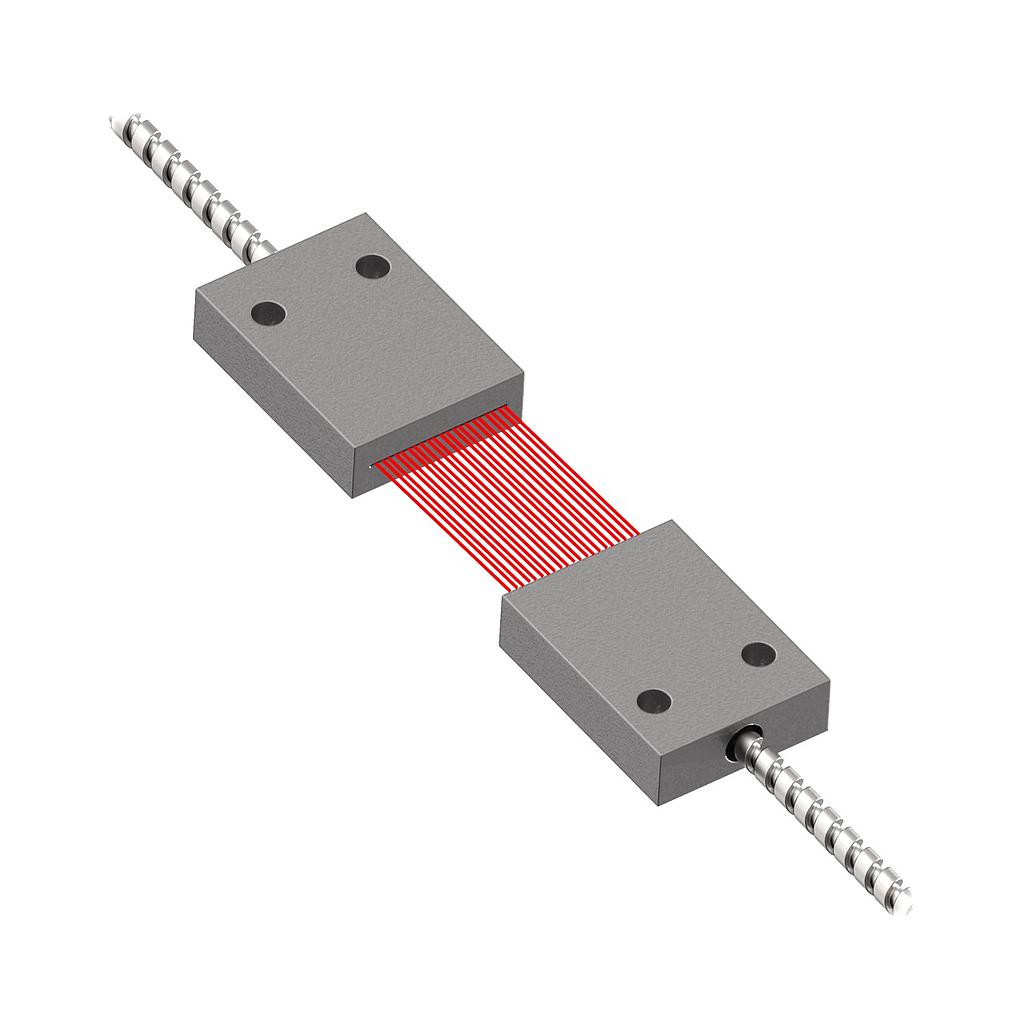

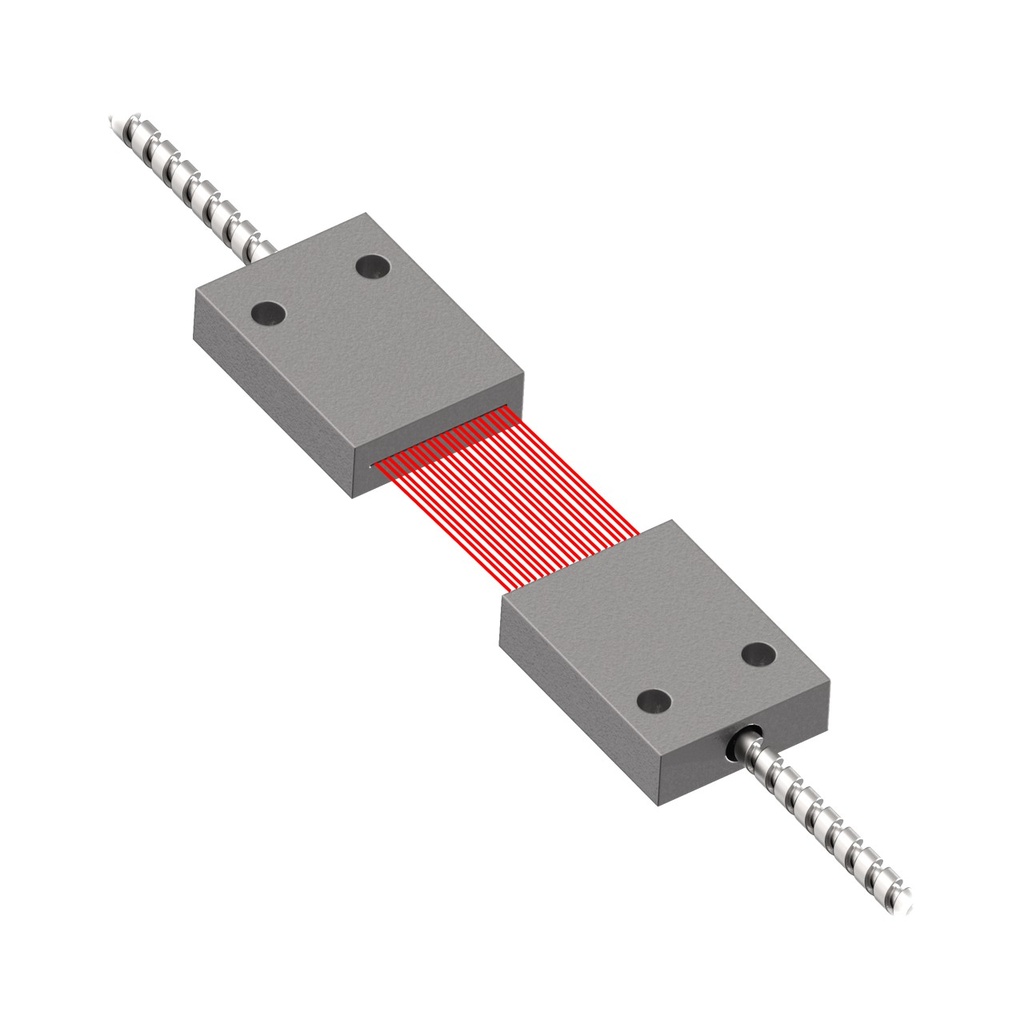

Glass Fiber Opposed Mode (IR13ST5AL7.6)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 802477
Weight: 0.1 lb(s)
Glass Fiber Opposed Mode
Features:
- Glass Fiber Opposed Mode
- 1m long
- Stainless Steel Sheath
- Rectangle Sensing Tip
- 0.25 mm X 7.62 mm array
- Max. Operating Temperature at Sensing Tip, 315C
- Terminated for use in Plastic Fiber Sensors
Glass Fiber Opposed Mode (IR13ST5AL7.6)
Glass Fiber Opposed Mode
Measurement Maximum:0
Max Operating Temperature:315 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:7.6 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:829 fbm
Measured Max Distance:719 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:19.1 x 25.4 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Terminated
Sensing End Material (Specific):Aluminum
Feature: Integrated Lens:Yes
Core Diameter:1.6 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:19.1 x 25.4 mm
Fiber Length:1 m
Fiber Optic Type:Glass
Sensing End Segment 2:Array
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 5m
Min Hinged Door Size:25 mm
Country of Origin:US
Max Distance: DF-G1:719 mm
Max Distance: DF-G3:5590 mm
Max Distance: DF-G2:1165 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 315 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 7.6 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 829 fbm |
| Measured Max Distance | 719 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 19.1 x 25.4 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Terminated |
| Sensing End Material (Specific) | Aluminum |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.6 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 19.1 x 25.4 mm |
| Fiber Length | 1 m |
| Fiber Optic Type | Glass |
| Sensing End Segment 2 | Array |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 5m |
| Min Hinged Door Size | 25 mm |
| Country of Origin | US |
| Max Distance: DF-G1 | 719 mm |
| Max Distance: DF-G3 | 5590 mm |
| Max Distance: DF-G2 | 1165 mm |
| Minimum Bend Radius | 25 mm |
