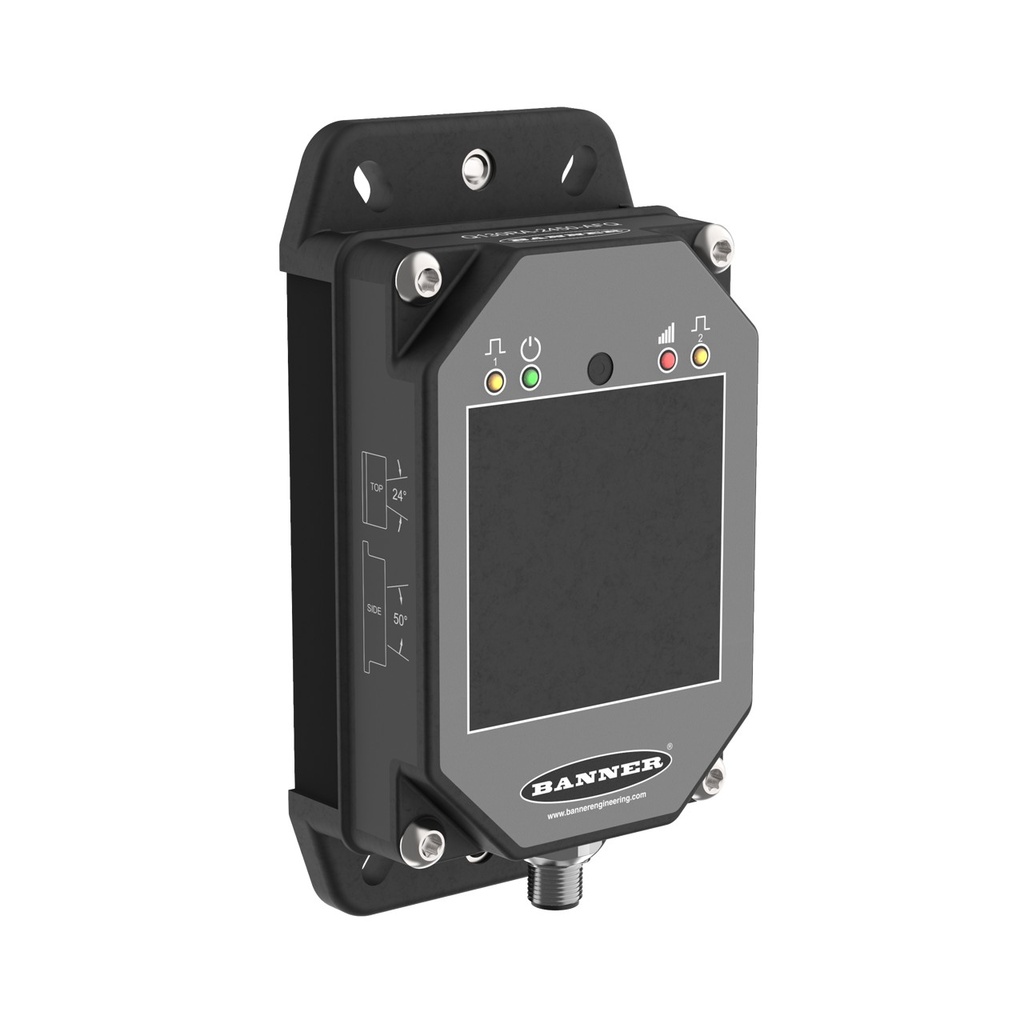

R-Gage Series Radar Sensor (Q130RA-9076-AFQ)
Brand_Name:Banner
Min Operating Temperature:-40 °C
Max Operating Temperature:65 °C
Power Supply:12-30 VDC
Delay at Power-Up:3000 ms
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Rectangular
Max Sensing Distance:24000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS/Polycarbonate
RS-422:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Storage Temp:-40 to 65 °C
Number of Pins:5
Adjustments:Software
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:50 ms
Output Saturation Voltage PNP Outputs:3.5 V
Max Discrete (Switched) Output (mA):50
Min Sensing Distance:1000 mm
Discrete (Switched) Outputs:Bipolar (NPN & PNP)
Output Protection:Protected against short circuit
Profibus:No
Output Saturation Voltage NPN Outputs:3.5 V
Operating Frequency:24 GHz
Connection Type:Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:Yes
Radar Beam Pattern (H x V °):90 x 76
Indicator Type:LED
Specifications
| Brand_Name | Banner |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Power Supply | 12-30 VDC |
| Delay at Power-Up | 3000 ms |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Rectangular |
| Max Sensing Distance | 24000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS/Polycarbonate |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Storage Temp | -40 to 65 °C |
| Number of Pins | 5 |
| Adjustments | Software |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | 50 ms |
| Output Saturation Voltage PNP Outputs | 3.5 V |
| Max Discrete (Switched) Output (mA) | 50 |
| Min Sensing Distance | 1000 mm |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Output Protection | Protected against short circuit |
| Profibus | No |
| Output Saturation Voltage NPN Outputs | 3.5 V |
| Operating Frequency | 24 GHz |
| Connection Type | Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | Yes |
| Radar Beam Pattern (H x V °) | 90 x 76 |
| Indicator Type | LED |
