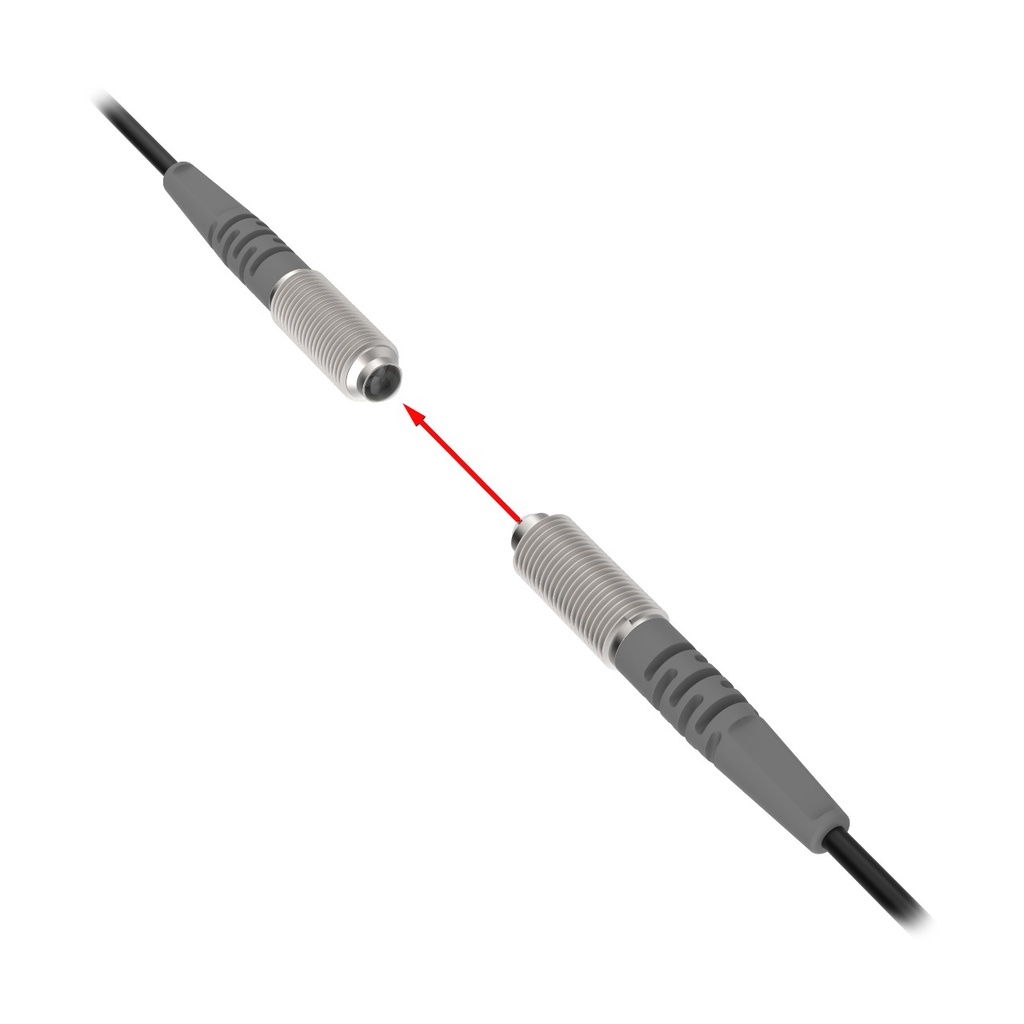

Plastic Fiber (PITL26UM6-VL)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 802116
Weight: 0.07 lb(s)
Plastic Fiber
Features:
- Plastic Fiber
- Opposed Mode Pair
- Core Dia.: 0.5 mm
- Fiber Length 2 m
- Stainless Thread M6 With integrated Lens, 20 mm spot size at 100 mm range
- Flex Relief, Free cut, Vantage Line
Plastic Fiber (PITL26UM6-VL)
Plastic Fiber
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:4 fbm
Min Bend Radius:15 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:M6
Feature: Retractile:No
Fiber Sensing End Tip:Lens
Termination:Free Cut
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:No
Core Diameter:0.5 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:Yes
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M6
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Lens
Beam Exit:In-line
Feature: Liquid Level:No
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:15 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 4 fbm |
| Min Bend Radius | 15 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | M6 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Lens |
| Termination | Free Cut |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | No |
| Core Diameter | 0.5 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | Yes |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Lens |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 15 mm |
