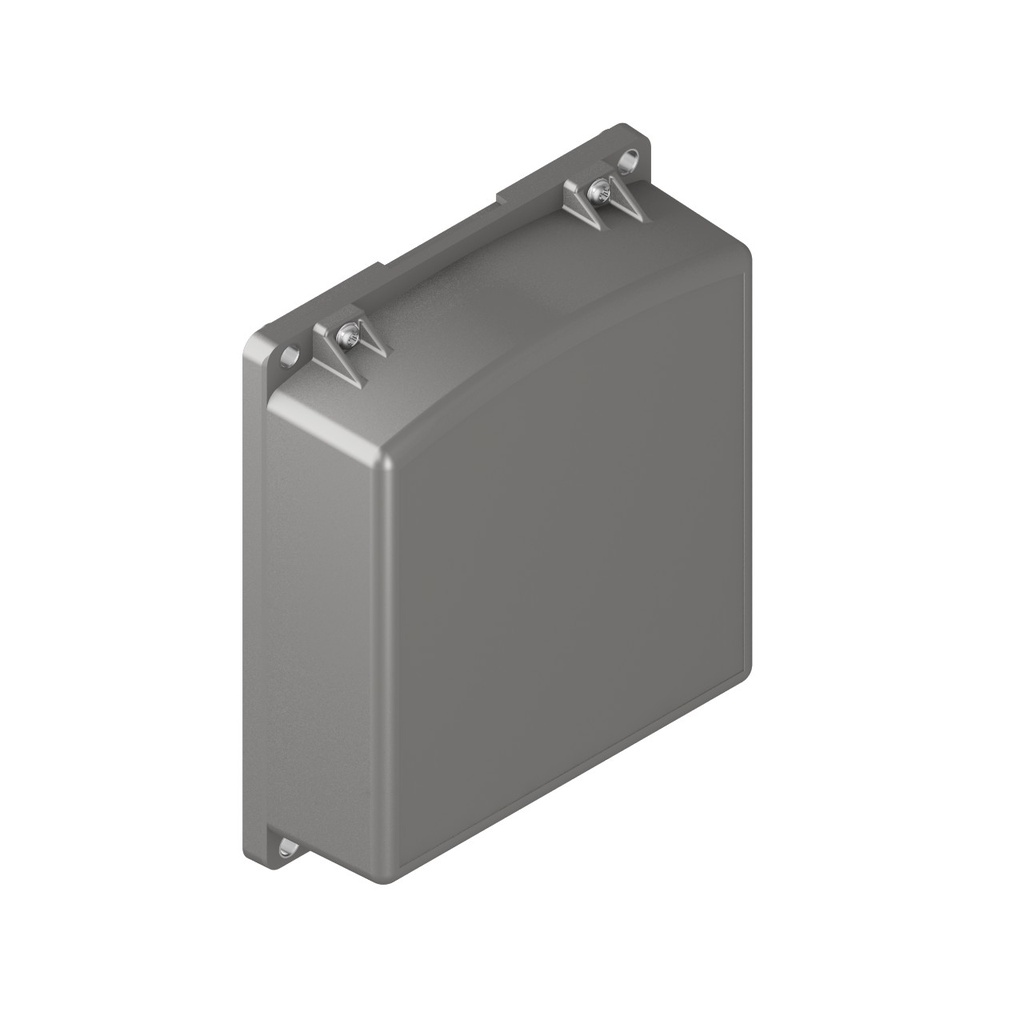

R-GAGE Series (Q240RA-EU-AF2LQ)
R-GAGE Series
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:65 °C
Power Supply:12-30 VDC
Delay at Power-Up:2000 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Rectangular
Max Sensing Distance:100000 mm, 100000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor, Sensor
Housing Material_:Polycarbonate
RS-422:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes, Yes
Quick Disconnect Type:M12
Number of Pins:5
Adjustments:Dip Switch
Feature: Timing (Hold/Delay):No
Input/Output:Discrete, Discrete
Min Response Time:15 ms
Max Discrete (Switched) Output (mA):150
Min Sensing Distance:3500 mm
Discrete (Switched) Outputs:2 NPN/PNP Configurable
Output Protection:Protected against short circuit
Profibus:No
Operating Frequency:24 GHz
Connection Type:Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Radar Beam Pattern (H x V °):11 x 13
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Power Supply | 12-30 VDC |
| Delay at Power-Up | 2000 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Rectangular |
| Max Sensing Distance | 100000 mm, 100000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor, Sensor |
| Housing Material_ | Polycarbonate |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes, Yes |
| Quick Disconnect Type | M12 |
| Number of Pins | 5 |
| Adjustments | Dip Switch |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete, Discrete |
| Min Response Time | 15 ms |
| Max Discrete (Switched) Output (mA) | 150 |
| Min Sensing Distance | 3500 mm |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Output Protection | Protected against short circuit |
| Profibus | No |
| Operating Frequency | 24 GHz |
| Connection Type | Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Radar Beam Pattern (H x V °) | 11 x 13 |
| Indicator Type | LED |
