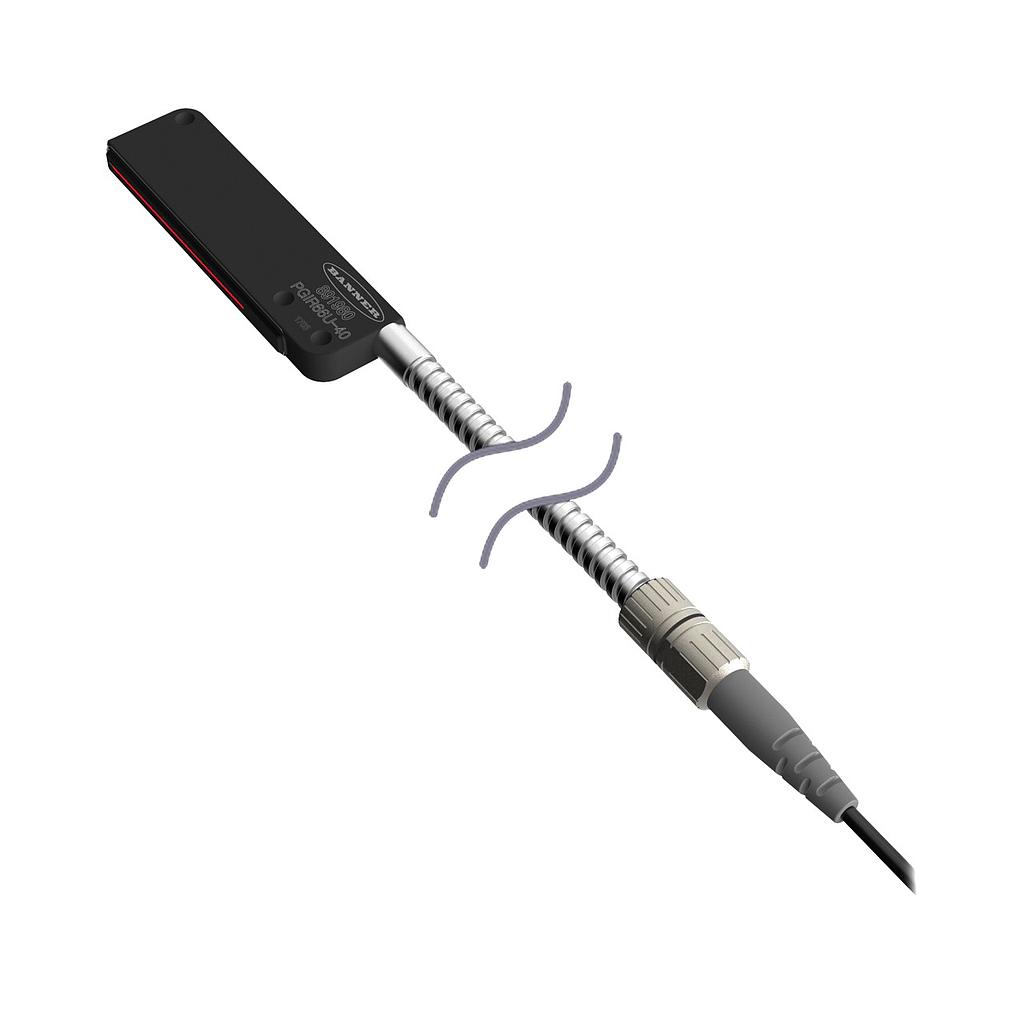

Plastic Fiber Group Array (PGIRS66U-40)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 801980
Weight: 0.18 lb(s)
Plastic Fiber Group Array
Features:
- Plastic Fiber Group Array
- Opposed Mode
- 40 mm Fiber Array 159 x 0.25 mm core
- Die Cast Rectangular Housing with coupled 2 m 1.5 mm core diameter plastic fiber
- free cut
Plastic Fiber Group Array (PGIRS66U-40)
Plastic Fiber Group Array
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:39.9 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:51.7 fbm
Measured Max Distance:545 mm
Min Bend Radius:40 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:60.0 x 16.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Terminated
Sensing End Material (Specific):Zinc Alloy
Feature: Integrated Lens:Yes
Core Diameter:1.5 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:60.0 x 16.0 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Sideview
Sensing End Segment 3:Array
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 3m to <= 5m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:545 mm
Max Distance: DF-G3:4237 mm
Max Distance: DF-G2:883 mm
Minimum Bend Radius:40 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 39.9 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 51.7 fbm |
| Measured Max Distance | 545 mm |
| Min Bend Radius | 40 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 60.0 x 16.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Terminated |
| Sensing End Material (Specific) | Zinc Alloy |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.5 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 60.0 x 16.0 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Array |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 3m to <= 5m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 545 mm |
| Max Distance: DF-G3 | 4237 mm |
| Max Distance: DF-G2 | 883 mm |
| Minimum Bend Radius | 40 mm |
