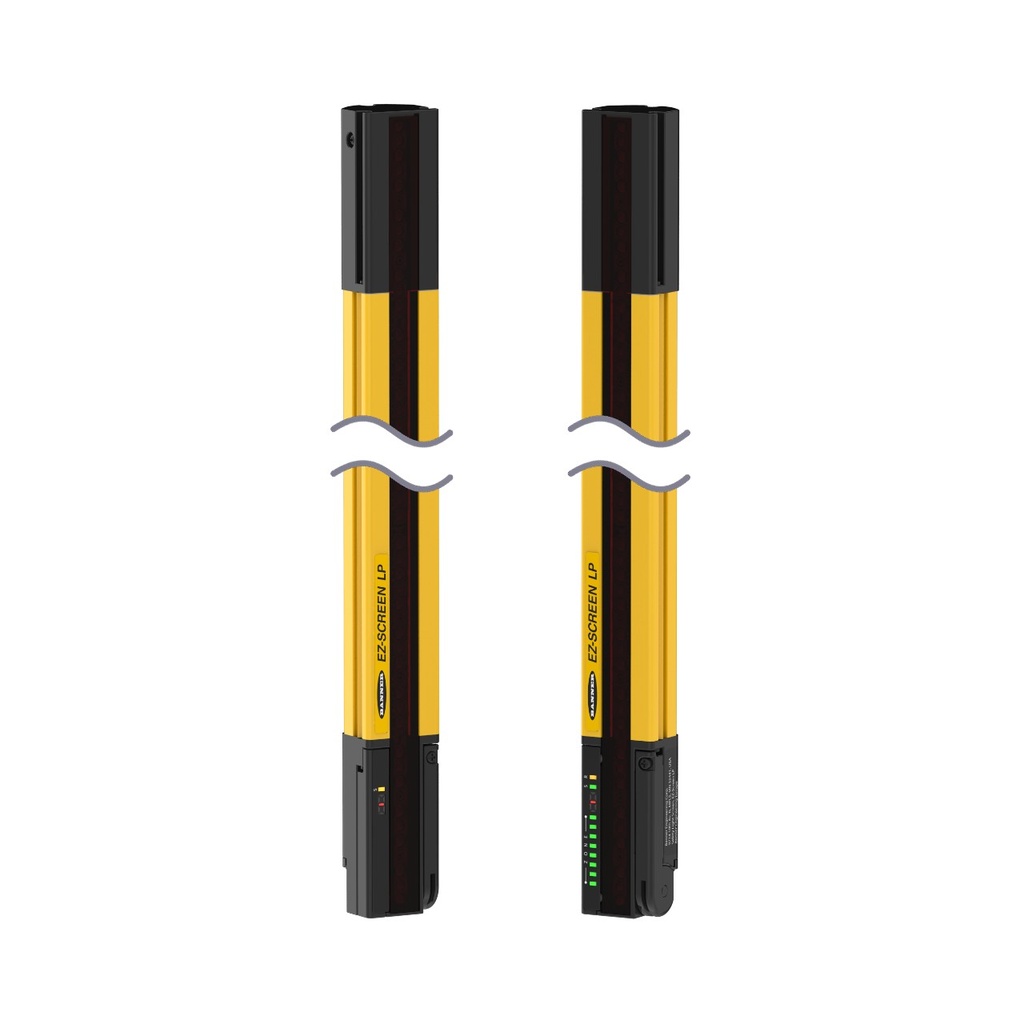

Ez-Screen Low Profile Limited Function Pair (SLPVAP14-270P88-801806)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 801806
Weight: 4.6 lb(s)
Features:
- EZ-SCREEN Low Profile Limited Function Pair; Resolution: 14 mm; Response (Tr): 10.5 ms; Beams: 27; Range: 0.1 to 4 m (4in. to 13ft.); Height: 270 mm (10.6 in.); Connection: 300 mm pigtail; 8-pin M12 QD; Mounting Hardware Ordered Separately
Ez-Screen Low Profile Limited Function Pair (SLPVAP14-270P88-801806)
Defined Area Height Range:<= 350 mm
Supply Current:210 mA max.
Min Operating Temperature:0 °C
Max Operating Temperature:55 °C
Ingress Protection:IP54
Housing Material_:Aluminum
Operating Voltage:24 VDC +/- 15%
Physical Dimensions:28 x 26 mm
PL Rating:e
Vibration:10-55 Hz at 0.35 mm
SIL Rating:SIL3; CL3
Recovery Time:33-220 ms / 109-800 ms
Feature: ESD Safe:No
Feature: Test Input:No
OSSD Rating:24 VDC @ 0.5 A each
Overall Length:270 mm
System Type:Emitter/Receiver Pair
Operating Distance:0.1 - 4 m
Response Time:10.5 ms
Effective Aperture Angle:Type 4 Per IEC 61496-2
Feature: Reduced Resolution:No
Feature: End-to-End Sensing:No
Number of Pins (Receiver/Emitter):8
Feature: Fault Output:No
Defined Area Height:270 mm
Feature: Auxiliary Output:No
Electrical Safety Class:III
Shock:10g at 16ms (6000 cycles)
Feature: Short Protection:Yes
External Monitoring Device:None
Feature: Fixed Blanking:No
Safety Level:Type 3
Feature: Integral Muting:No
Scan Code:None
Trip/Latch Output:N/A
Electrical Connector Type:M12 Pigtail (Yellow)
Country of Origin:US
Housing Finish:Yellow Polyester
Max Operating Range:<= 4 m
Finish Material:Yellow Polyester
Specifications
| Defined Area Height Range | <= 350 mm |
| Supply Current | 210 mA max. |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Ingress Protection | IP54 |
| Housing Material_ | Aluminum |
| Operating Voltage | 24 VDC +/- 15% |
| Physical Dimensions | 28 x 26 mm |
| PL Rating | e |
| Vibration | 10-55 Hz at 0.35 mm |
| SIL Rating | SIL3; CL3 |
| Recovery Time | 33-220 ms / 109-800 ms |
| Feature: ESD Safe | No |
| Feature: Test Input | No |
| OSSD Rating | 24 VDC @ 0.5 A each |
| Overall Length | 270 mm |
| System Type | Emitter/Receiver Pair |
| Operating Distance | 0.1 - 4 m |
| Response Time | 10.5 ms |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Feature: Reduced Resolution | No |
| Feature: End-to-End Sensing | No |
| Number of Pins (Receiver/Emitter) | 8 |
| Feature: Fault Output | No |
| Defined Area Height | 270 mm |
| Feature: Auxiliary Output | No |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| Feature: Short Protection | Yes |
| External Monitoring Device | None |
| Feature: Fixed Blanking | No |
| Safety Level | Type 3 |
| Feature: Integral Muting | No |
| Scan Code | None |
| Trip/Latch Output | N/A |
| Electrical Connector Type | M12 Pigtail (Yellow) |
| Country of Origin | US |
| Housing Finish | Yellow Polyester |
| Max Operating Range | <= 4 m |
| Finish Material | Yellow Polyester |
