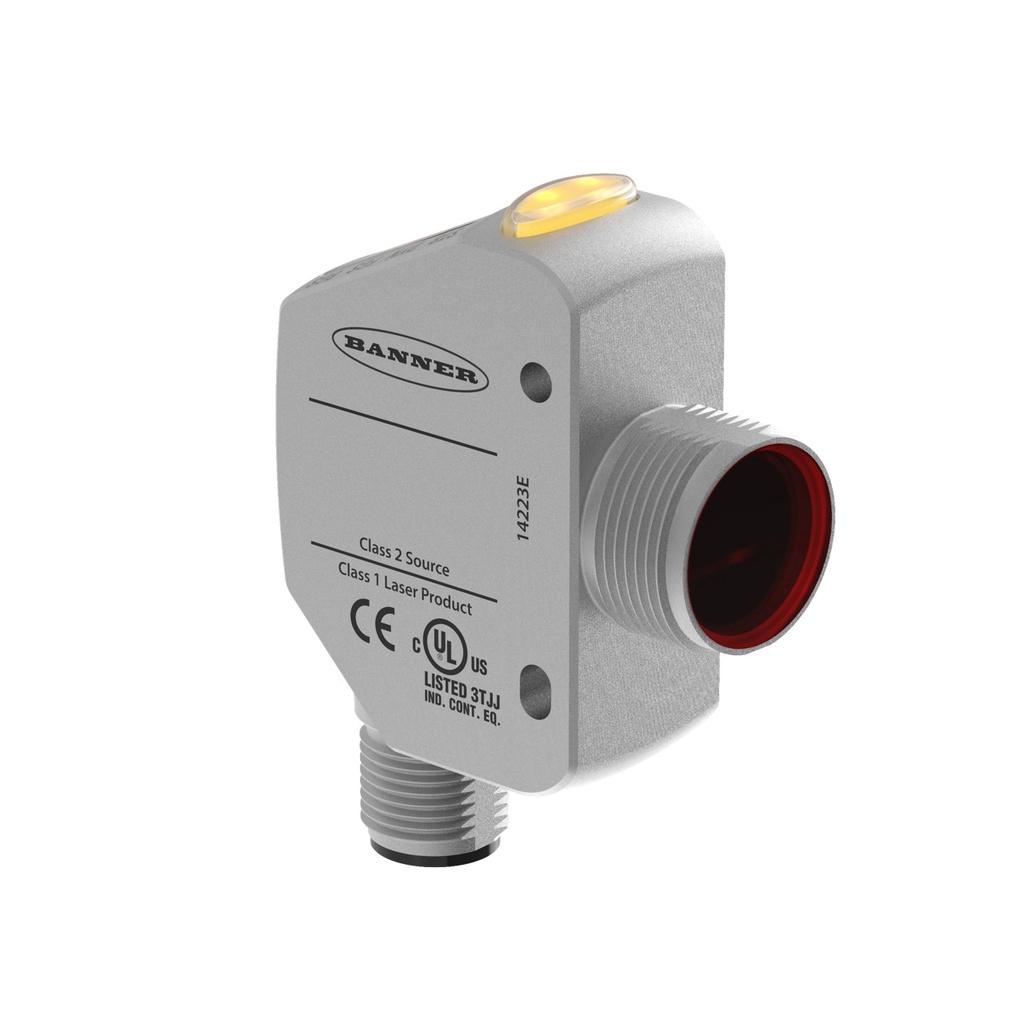

Q4X Series: Laser Adjustable Field (Q4XTULAF300-Q8-C801612)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 801612
Weight: 0.15 lb(s)
Features:
- Q4X Series: Laser Adjustable Field; Range: 300 mm; Input 10-16 V dc; Output: Analog: 0-5 V; 10ms response time with a 1ms sample rate; Connection: Euro M12 5-Pin Integral Connector
Q4X Series: Laser Adjustable Field (Q4XTULAF300-Q8-C801612)
Min Operating Temperature:-10 °C
Max Operating Temperature:50 °C
Power/Current Consumption (exclusive of load):< 675 mW
Power Supply:10-30 VDC
Temperature Effect (mm/°C):#ERROR!
Delay at Power-Up:750 ms
Ingress Protection:IP67/68/69
Sensing Beam:Visible Red Laser
Housing Style:Rectangular w/ Threaded Mount
Max Sensing Distance:300 mm
Sensing Mode (Detailed):Background/Foreground Suppression
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:SS
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: Washdown Rated:Yes
Laser Classification:Class 1
Analog Output:0 to 5 VDC
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 55 °C
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-25 to 75 °C
Feature: Ecolab Certified:Yes
Number of Pins:5
Feature: Timing (Hold/Delay):No
Input/Output:Analog
Barrel Diameter:18
Min Response Time:0.5 ms
Vibration:MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock:MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Analog Resolution/Discrete Repeatability:25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1
Min Sensing Distance:25 mm
Min Window Size:2 mm
Max Measurement Range:100-500 mm
Output Protection:Protected against continuous overload and short circuit
Profibus:No
Analog Voltage Output Rating:2.5 kΩ min. load impedance
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Spot Size (@ Reference Distance):2.0 mm x 0.8 mm @ 300 mm
Connection Type:Integral QD
Country of Origin:US
Barrel Thread:M18
Feature: Common Ethernet Protocol:No
Feature: Laser Control:Yes
Feature: PC Configurable:No
Indicator Type:LED
Max Ambient Light:5000 lux
Warm-Up Time:10 min
Alarm Output (mA):100
Specifications
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Power/Current Consumption (exclusive of load) | < 675 mW |
| Power Supply | 10-30 VDC |
| Temperature Effect (mm/°C) | #ERROR! |
| Delay at Power-Up | 750 ms |
| Ingress Protection | IP67/68/69 |
| Sensing Beam | Visible Red Laser |
| Housing Style | Rectangular w/ Threaded Mount |
| Max Sensing Distance | 300 mm |
| Sensing Mode (Detailed) | Background/Foreground Suppression |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | SS |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: Washdown Rated | Yes |
| Laser Classification | Class 1 |
| Analog Output | 0 to 5 VDC |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 55 °C |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -25 to 75 °C |
| Feature: Ecolab Certified | Yes |
| Number of Pins | 5 |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Analog |
| Barrel Diameter | 18 |
| Min Response Time | 0.5 ms |
| Vibration | MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Mechanical Shock | MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating |
| Analog Resolution/Discrete Repeatability | 25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1 |
| Min Sensing Distance | 25 mm |
| Min Window Size | 2 mm |
| Max Measurement Range | 100-500 mm |
| Output Protection | Protected against continuous overload and short circuit |
| Profibus | No |
| Analog Voltage Output Rating | 2.5 kΩ min. load impedance |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Spot Size (@ Reference Distance) | 2.0 mm x 0.8 mm @ 300 mm |
| Connection Type | Integral QD |
| Country of Origin | US |
| Barrel Thread | M18 |
| Feature: Common Ethernet Protocol | No |
| Feature: Laser Control | Yes |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Max Ambient Light | 5000 lux |
| Warm-Up Time | 10 min |
| Alarm Output (mA) | 100 |
