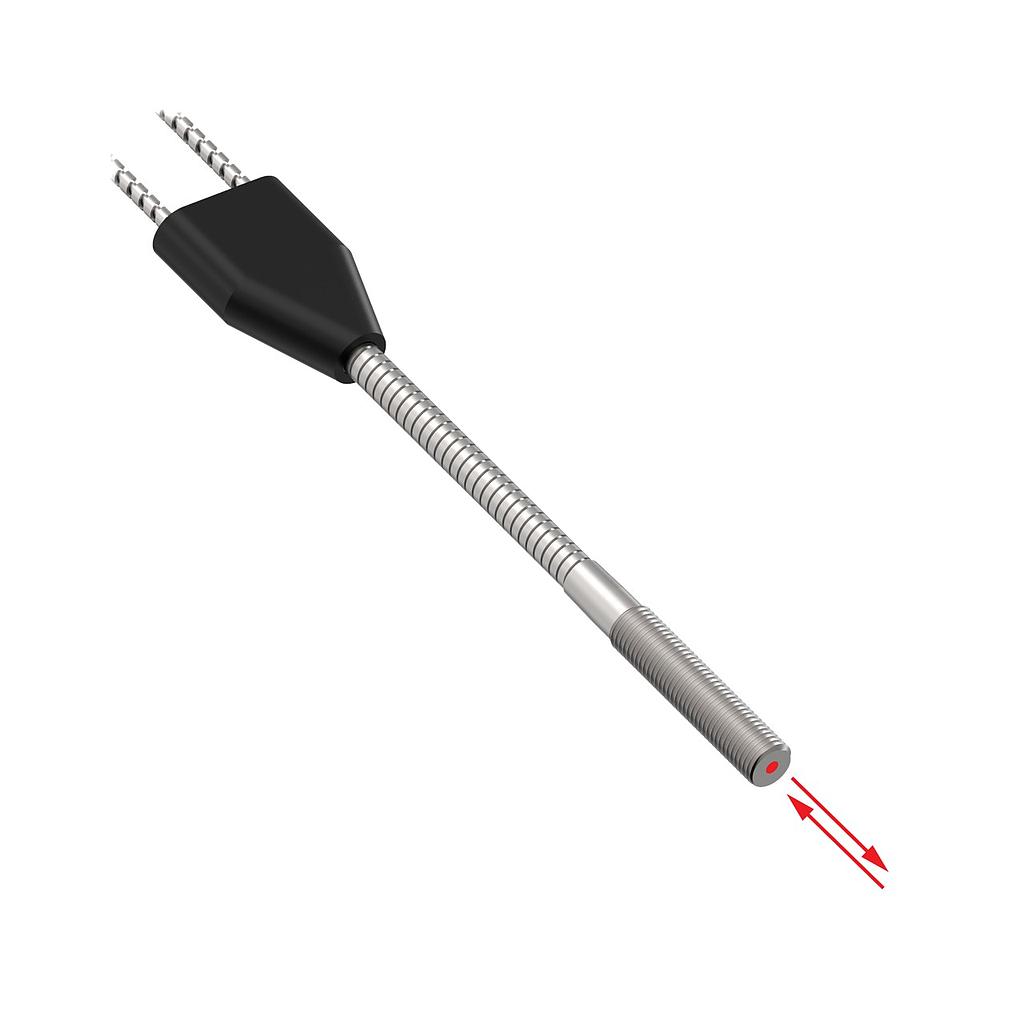

Glass Fiber (BT1.56ST5M900)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 801407
Weight: 0.45 lb(s)
Glass Fiber
Features:
- Glass Fiber
- Diffuse Mode
- 2.29 mm Bundle
- 5/16X24 Threaded Tip
- Stainless Sheathing 1.83 meters long
- Terminated For Plastic Fiber Sensors
- Max. Operating Temperature at Sensing tip 482 deg. C
Glass Fiber (BT1.56ST5M900)
Glass Fiber
Measurement Maximum:0
Max Operating Temperature:480 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:3210 fbm
Measured Max Distance:222 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:#5/16-24 thread
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:2.3 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:#5/16-24 thread
Fiber Length:1.829 m
Fiber Optic Type:Glass
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 1m to <= 3m
Min Hinged Door Size:25 mm
Country of Origin:US
Max Distance: DF-G1:222 mm
Max Distance: DF-G3:1728 mm
Max Distance: DF-G2:360 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 480 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 3210 fbm |
| Measured Max Distance | 222 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | #5/16-24 thread |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 2.3 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | #5/16-24 thread |
| Fiber Length | 1.829 m |
| Fiber Optic Type | Glass |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 1m to <= 3m |
| Min Hinged Door Size | 25 mm |
| Country of Origin | US |
| Max Distance: DF-G1 | 222 mm |
| Max Distance: DF-G3 | 1728 mm |
| Max Distance: DF-G2 | 360 mm |
| Minimum Bend Radius | 25 mm |
