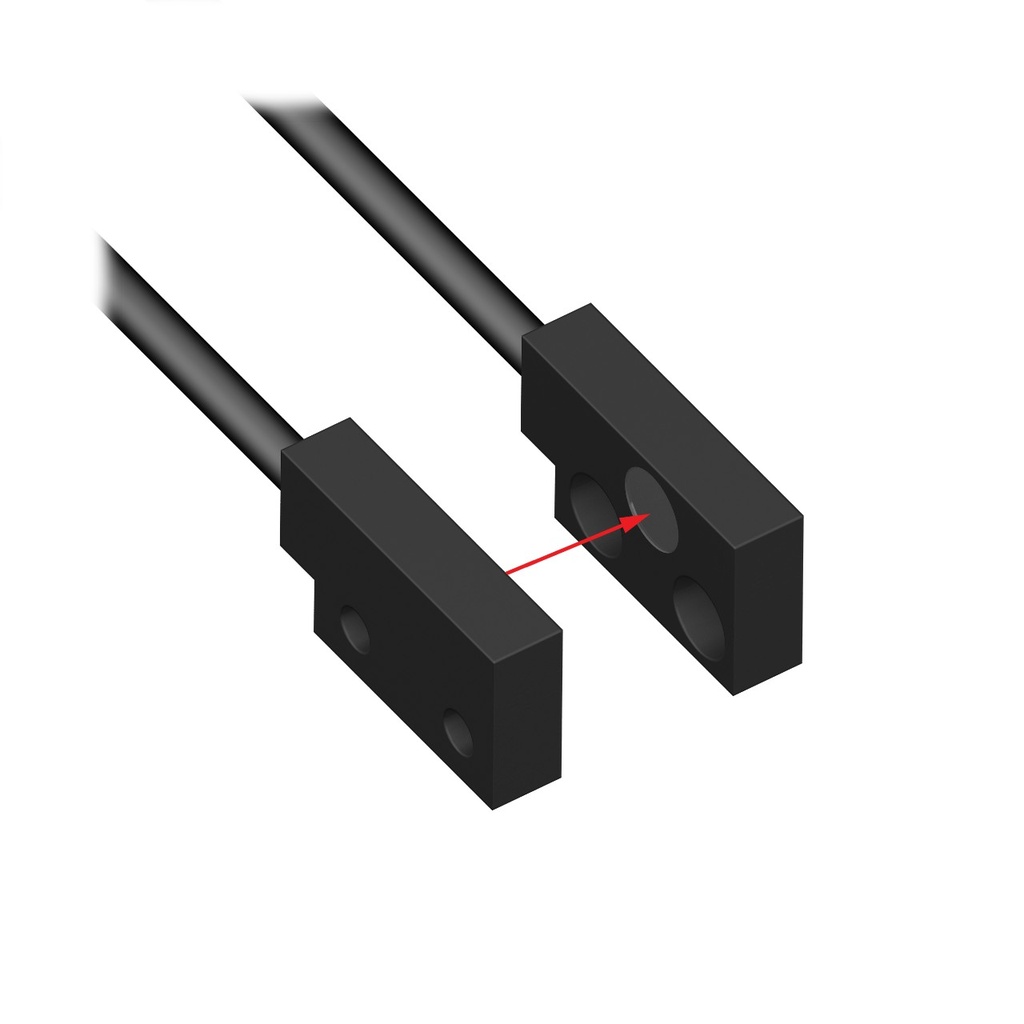

Plastic Fiber (PILS46U)
Plastic Fiber
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:4 fbm
Measured Max Distance:958 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:8.5 x 15.5 mm
Feature: Retractile:No
Fiber Sensing End Tip:Lens
Termination:Free Cut
Sensing End Material (Specific):Aluminum
Feature: Integrated Lens:No
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:Yes
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:8.5 x 15.5 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Sideview
Sensing End Segment 3:Lens
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 5m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:958 mm
Max Distance: DF-G3:7440 mm
Max Distance: DF-G2:1551 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 4 fbm |
| Measured Max Distance | 958 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 8.5 x 15.5 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Lens |
| Termination | Free Cut |
| Sensing End Material (Specific) | Aluminum |
| Feature: Integrated Lens | No |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | Yes |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 8.5 x 15.5 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Lens |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 5m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 958 mm |
| Max Distance: DF-G3 | 7440 mm |
| Max Distance: DF-G2 | 1551 mm |
| Minimum Bend Radius | 25 mm |
