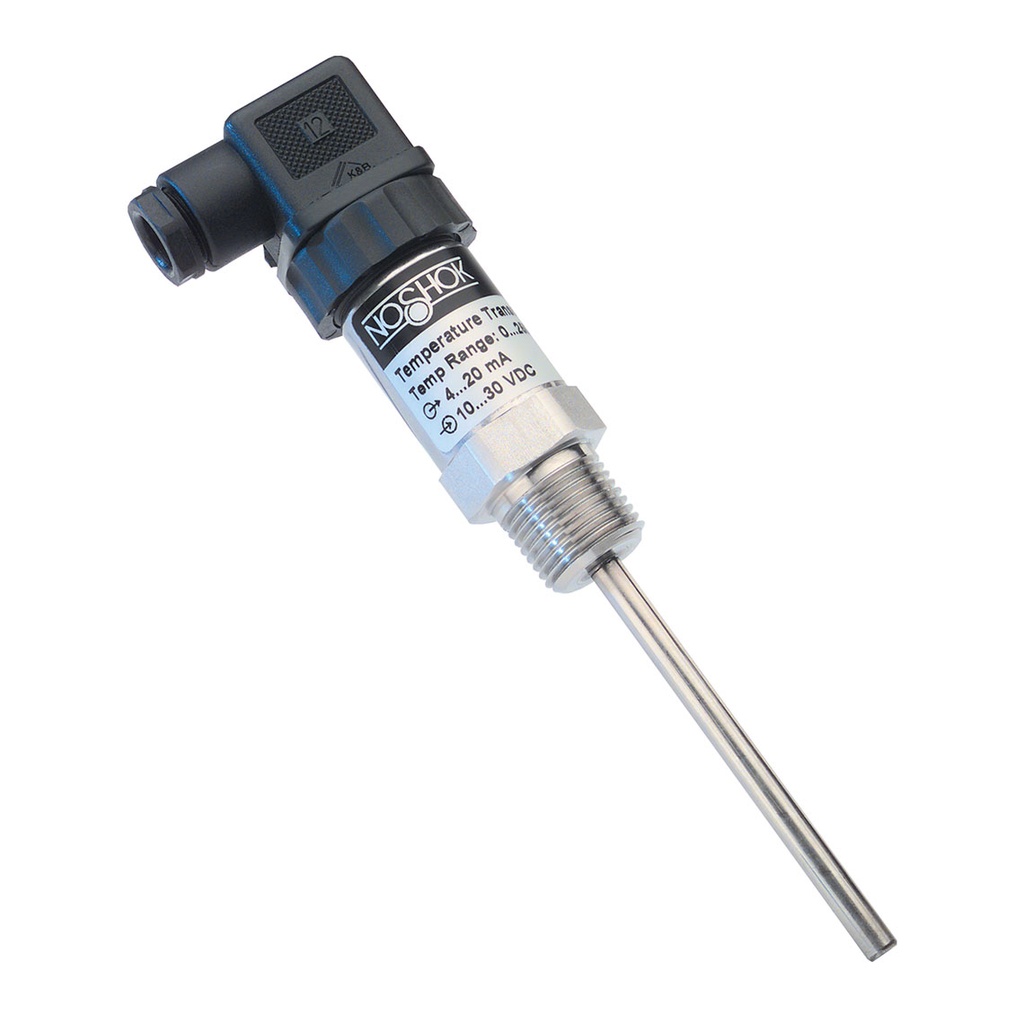

800 Series Platinum Resistance Temperature Transmitter, 0 to 250 °F, 1/2" NPT-Male, 2.5" Stem, 6 mm Stem Diam
Manufacturer: Noshok Inc
Mfg Product Code: 800-0/250-1-2-8-14-025-6
Weight: 0.34 lb(s)
800 Series 0/250 ºF Temp Range, 0-5 Vdc O/P, 1/2" NPT, 2.5" Stem, 6 mm Dia Temp Transmitter w/DIN EN 175301-803 Form A w/ISO 4400 1/2" NPT Female Conduit Elec Conn
- Proven 100 Ω platinum resistance sensor provides reliability, stability & unbeatable performance
- Economical price
- Wide variety of temperature ranges and connections
Applications:
- Water systems
- Storage tanks
- Industrial machinery and machine tools
- HVAC systems
- Refrigeration systems
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
800 Series Platinum Resistance Temperature Transmitter, 0 to 250 °F, 1/2" NPT-Male, 2.5" Stem, 6 mm Stem Diam
800 Series 0/250 ºF Temp Range, 0-5 Vdc O/P, 1/2" NPT, 2.5" Stem, 6 mm Dia Temp Transmitter w/DIN EN 175301-803 Form A w/ISO 4400 1/2" NPT Female Conduit Elec Conn
Measurement Maximum:250.0
Process Connection Type:NPT-Male
Pressure Rating:725 psi
Stem Length:2.5 in. (63.5 mm)
Min Operating Temperature:0 °F
Product Unit of Measure:°F
Max Operating Temperature:250 °F
Process Connection Size:1/2"
Accuracy:±0.5% BFSL, Class B
Case Material:316 SS
Wetted Material:316 SS
Measurement Minimum:0
Output Communication Protocol:0-5 VDC, 3-wire
Input Voltage:10-30 VDC
Ingress Protection:IP65
Stem Diameter:0.236 in (6 mm)
Electrical Connector Type:DIN EN 175301-803 Form A
Specifications
| Measurement Maximum | 250.0 |
| Process Connection Type | NPT-Male |
| Pressure Rating | 725 psi |
| Stem Length | 2.5 in. (63.5 mm) |
| Min Operating Temperature | 0 °F |
| Product Unit of Measure | °F |
| Max Operating Temperature | 250 °F |
| Process Connection Size | 1/2" |
| Accuracy | ±0.5% BFSL, Class B |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 0-5 VDC, 3-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP65 |
| Stem Diameter | 0.236 in (6 mm) |
| Electrical Connector Type | DIN EN 175301-803 Form A |
