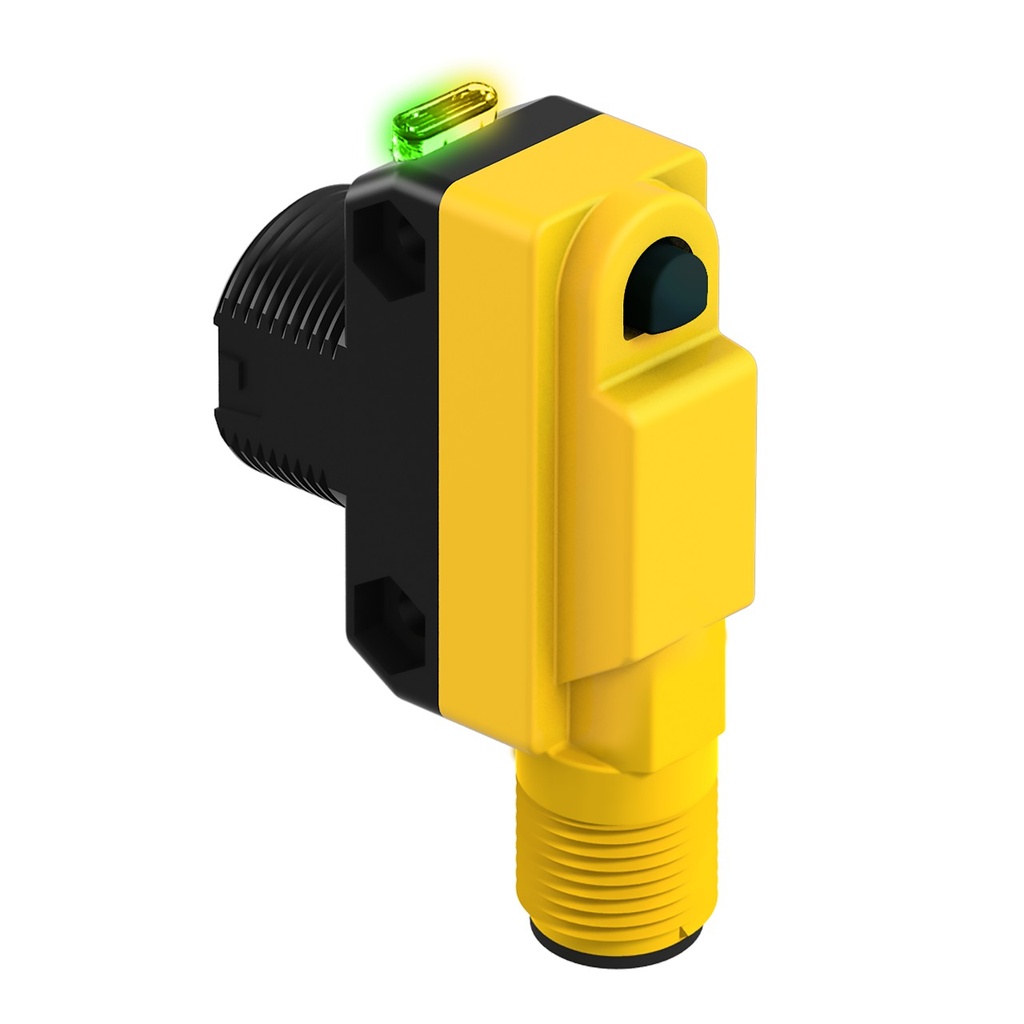

50-100MM NC (QS18UNAQ8-76772)
QS18UNAQ8-76772 50-100MM NC
Brand_Name:Banner
Max Off-State Leakage Current (µA):<10 µA (NPN) / <5 µA (PNP)
Min Operating Temperature:-20 °C, -20 °C
Max Operating Temperature:60 °C
Power/Current Consumption (exclusive of load):25 mA max
Power Supply:12-30 VDC
Temperature Effect (mm/°C):#ERROR!
Delay at Power-Up:300 ms
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:500 mm
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: Washdown Rated:Yes
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12 (Euro)
Max Op. Relative NC Humidity:100%
Feature: Chemical Resistant:No
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Barrel Diameter:18
Min Response Time:15 ms
Output Saturation Voltage PNP Outputs:< 2.0 V @ 100 mA
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:50 mm
Min Window Size:5 mm
Discrete (Switched) Outputs:1 NPN
Max Measurement Range:100-500 mm
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<1.6 V @ 100 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 6P, NEMA 6P
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Rep Rate:7.5 ms
Discrete Output Hysteresis:1.4 mm
Ultrasonic Frequency:300 kHz
Specifications
| Brand_Name | Banner |
| Max Off-State Leakage Current (µA) | <10 µA (NPN) / <5 µA (PNP) |
| Min Operating Temperature | -20 °C, -20 °C |
| Max Operating Temperature | 60 °C |
| Power/Current Consumption (exclusive of load) | 25 mA max |
| Power Supply | 12-30 VDC |
| Temperature Effect (mm/°C) | #ERROR! |
| Delay at Power-Up | 300 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Rectangular w/M18 Mount |
| Max Sensing Distance | 500 mm |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: Washdown Rated | Yes |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 (Euro) |
| Max Op. Relative NC Humidity | 100% |
| Feature: Chemical Resistant | No |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Barrel Diameter | 18 |
| Min Response Time | 15 ms |
| Output Saturation Voltage PNP Outputs | < 2.0 V @ 100 mA |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 50 mm |
| Min Window Size | 5 mm |
| Discrete (Switched) Outputs | 1 NPN |
| Max Measurement Range | 100-500 mm |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <1.6 V @ 100 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6P, NEMA 6P |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Rep Rate | 7.5 ms |
| Discrete Output Hysteresis | 1.4 mm |
| Ultrasonic Frequency | 300 kHz |
