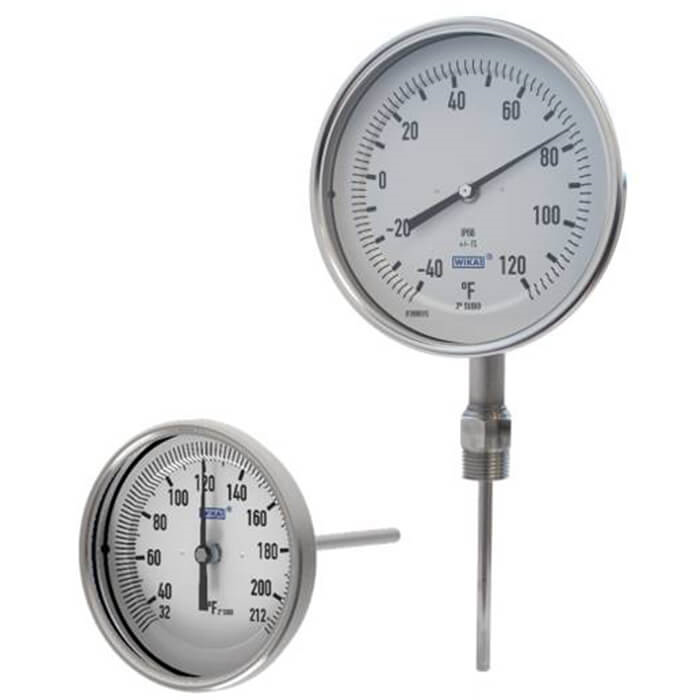

Wika TG.51 Series Bimetal Thermometer, 5" Dial, Laminated Safety Glass Window, 6.0" x 1/4" Diameter Probe, 1/2" NPT Back Mount, 0 to 250 °F

Manufacturer: Wika Instrument Lp

Mfg Product Code: 76222343

Weight: 0.01 lb(s)

Applications

• A wide range of applications including machine building,vessels, micro-brewing, boilers and water systems/piping
• Heating and air-conditioning technology (HVAC)
• Temperature measurement in harsh and aggressive environments which does not corrode 304 stainless steel

Special features

• Robust industrial design
• Hermetically sealed case
• NEMA 4X (IP66) weather protection
• All 304 stainless steel construction

Features

Bimetal thermometer, Industrial grade according to ASME B40.200
Model: TG51.5Z
Specifications according to data sheet: TG51
Accuracy Class: +/- 1% of Full Scale (ASME B40.3)
Nominal size: 5"
Connector position: back mount
Design of Connection: standard, male thread
Process Connection: 1/2" NPT
Scale Range: 0 °F ... 250 °F
Stem Diameter: 1/4"
Insertion length L1: 6.0"
Window: laminated safety glass
Ingress Protection: IP 66 / NEMA 4X
Manufacturer logo: *WIKA®*
serial number on dial: Serial number *...*
