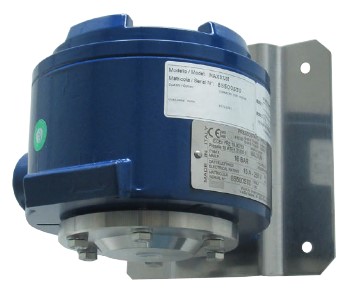

Wika MWGXXUG Diaphragm Pressure Switch, 10 to 250 kg/cm2, 1/4" NPT-F Process Connection, 1/2" NPT-F Electrical Connection
Manufacturer: Wika Instrument Lp
Mfg Product Code: 76212311
Weight: 0.01 lb(s)
Diaphragm pressure switch, Stainless steel case
measuring elements and wetted materials: Diaphragm AISI 316, 304, Inconel or Hastelloy (Piston AISI 316)/ Process Connection A
electric contacts: 1x SPDT gold-plated contact
setting range: 10...250 kg/cm2
Standard, working range = 0...250 kg/cm2, proof pressure 400 kg/cm2
process connection: 1/4 NPT-F
electrical connection: 1/2 -14 NPT-F
Enclosure with plate for wall or direct mounting
Ingress Protection: IP66
Diaphragm: Hastelloy C 276//Connection: Stainless steel AISI 316L
Repeatability of set point: ≤ 1% of span
Set Point not defined
Wika MWGXXUG Diaphragm Pressure Switch, 10 to 250 kg/cm2, 1/4" NPT-F Process Connection, 1/2" NPT-F Electrical Connection
Diaphragm pressure switch, Stainless steel case
measuring elements and wetted materials: Diaphragm AISI 316, 304, Inconel or Hastelloy (Piston AISI 316)/ Process Connection A
electric contacts: 1x SPDT gold-plated contact
setting range: 10...250 kg/cm2
Standard, working range = 0...250 kg/cm2, proof pressure 400 kg/cm2
process connection: 1/4 NPT-F
electrical connection: 1/2 -14 NPT-F
Enclosure with plate for wall or direct mounting
Ingress Protection: IP66
Diaphragm: Hastelloy C 276//Connection: Stainless steel AISI 316L
Repeatability of set point: ≤ 1% of span
Set Point not defined
