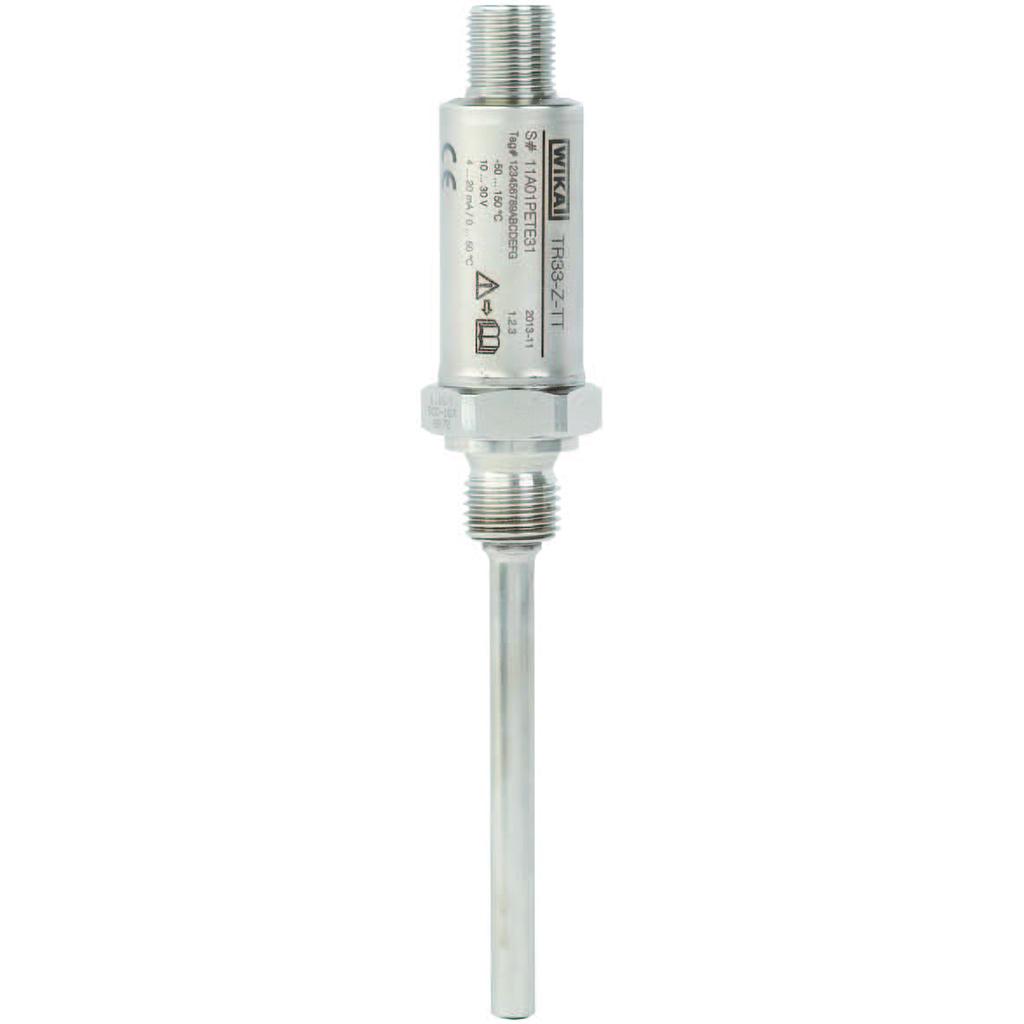

Wika TR33 RTD ASSEMBLY, -30 to 200°C, 4-20mADC OUTPUT, 6 mm Dia, 50 mm INSERTION, G1/2 B Fixed Threaded Bushing
Manufacturer: Wika Instrument Lp
Mfg Product Code: 76203871
Weight: 0.01 lb(s)
On Hand: 0
Features:
- Electrical connection: Circular connector, M12x1
- Output Singnal: 4…20mA, 2-wire
- Transmitter Unit: °C
- Process temperature: -30 ... +250°C
- Transmitter initial value: -30°C
- Transmitter final value: 200°C
- Process connection: Fixed hex bushing, G 1/2 B
- Sensor diameter: 6 mm
- Insertion length: 50 mm
- Permissible ambient temperature: -40 ... +85 °C (-40 ... +185 °F)
- pin assignment: Standard pin connection 1+ (10..30VDC) and 3- (0V)
- customer layout beginning with: WIKA Standard
Wika TR33 RTD ASSEMBLY, -30 to 200°C, 4-20mADC OUTPUT, 6 mm Dia, 50 mm INSERTION, G1/2 B Fixed Threaded Bushing
