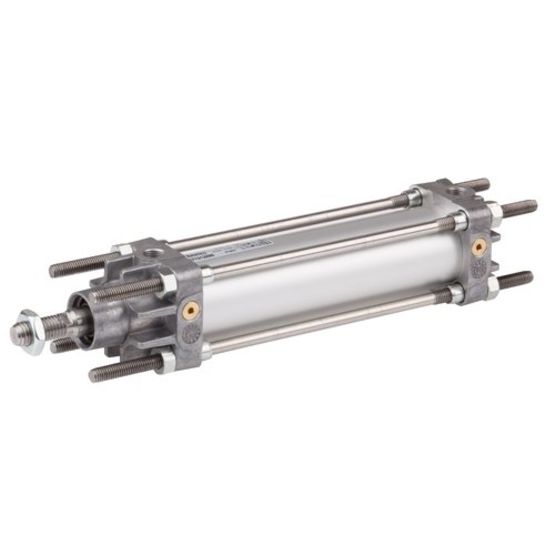

AVENTICS C12P Series Tie Rod Cylinder, 32 mm, G 1/8, Single Piston Rod

Manufacturer: Asco LP

Mfg Product Code: 7471312499

Weight: 2.0 lb(s)

Tie Rod Cylinder, 32 mm, G 1/8, Single Piston Rod

The AVENTICS Series C12P is a cylinder Series according the standard CNOMO NFE 49-001 and offer a replacement for existing application.

Features

• Standards: CNOMO / NFE 49-001
• Piston Ø: 32 mm
• Stroke: 300 mm
• Functional principle: Double-acting
• Cushioning: Pneumatic adjustable cushioning
• Magnetic piston: Piston with magnet
• Environmental requirements: Industry standard
• Piston rod: single
• Scraper: Standard industrial scraper
• Pressure for determining piston forces: 6,3 bar
• Retracting piston force: 435 N
• Extracting piston force: 507 N
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 80 °C
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• Ports: G 1/8
• Piston rod thread: M10x1,5
• Weight 0 mm stroke: 0.38 kg
• Weight +10 mm stroke: 0.035 kg
• Stroke max.: 1600 mm
• Medium: Compressed air
• Min. medium temperature: -20 °C
• Max. medium temperature: 80 °C
• Max. particle size: 50 µm:
