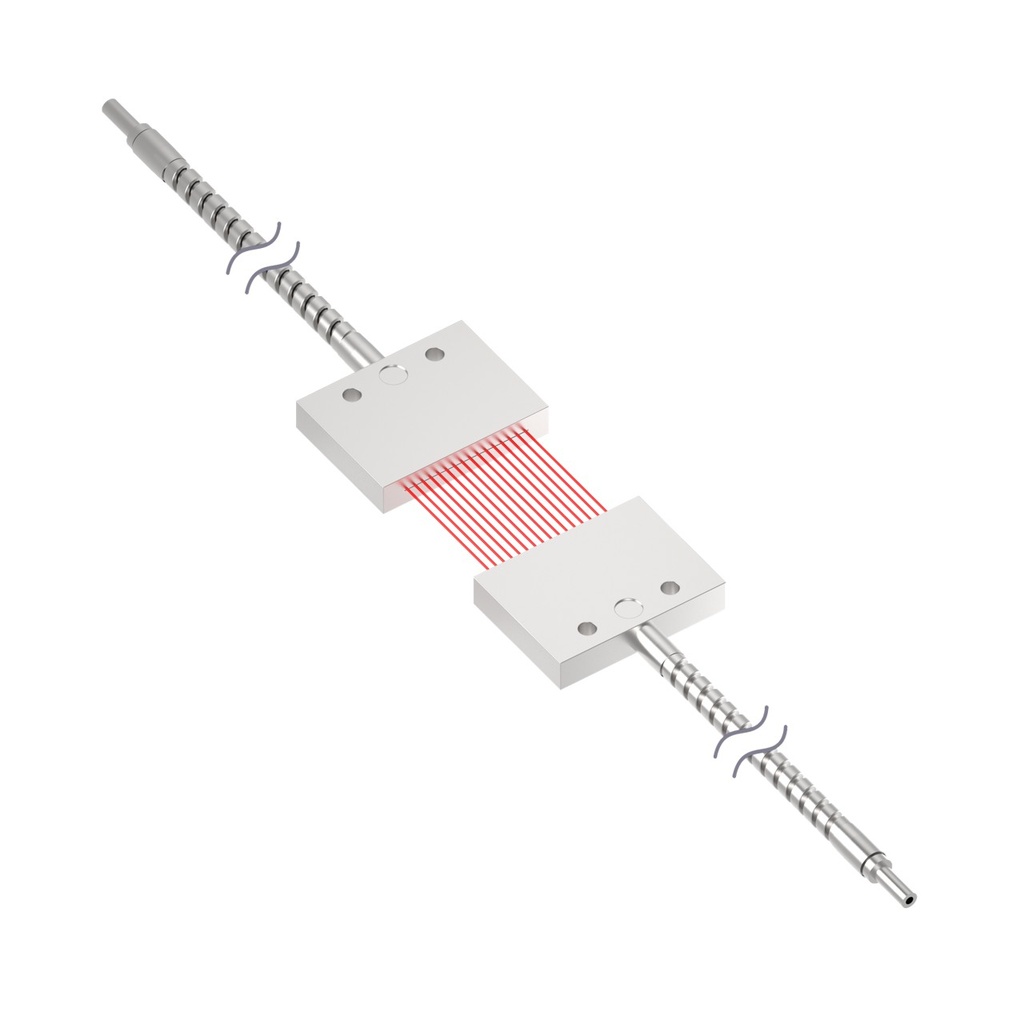

FIBER GLASS FIBER ASSEMBLY (IR2.515S)
FIBER IR2.515S GLASS FIBER ASSEMBLY
Measurement Maximum:0
Max Operating Temperature:249 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:38.1 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:24387.05 fbm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:50.8 x 38.1 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Terminated
Sensing End Material (Specific):Aluminum
Feature: Integrated Lens:Yes
Core Diameter:4 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Flex Relief:No
Termination Type:Glass Fiber Sensors
Fiber Sensing End Size - Mounting Area:50.8 x 38.1 mm
Fiber Length:4.572 m
Fiber Optic Type:Glass
Sensing End Segment 2:Array
Beam Exit:In-line
Feature: Liquid Level:No
Min Hinged Door Size:25 mm
Country of Origin:US
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 249 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 38.1 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 24387.05 fbm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 50.8 x 38.1 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Terminated |
| Sensing End Material (Specific) | Aluminum |
| Feature: Integrated Lens | Yes |
| Core Diameter | 4 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Flex Relief | No |
| Termination Type | Glass Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 50.8 x 38.1 mm |
| Fiber Length | 4.572 m |
| Fiber Optic Type | Glass |
| Sensing End Segment 2 | Array |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 25 mm |
| Country of Origin | US |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 25 mm |
