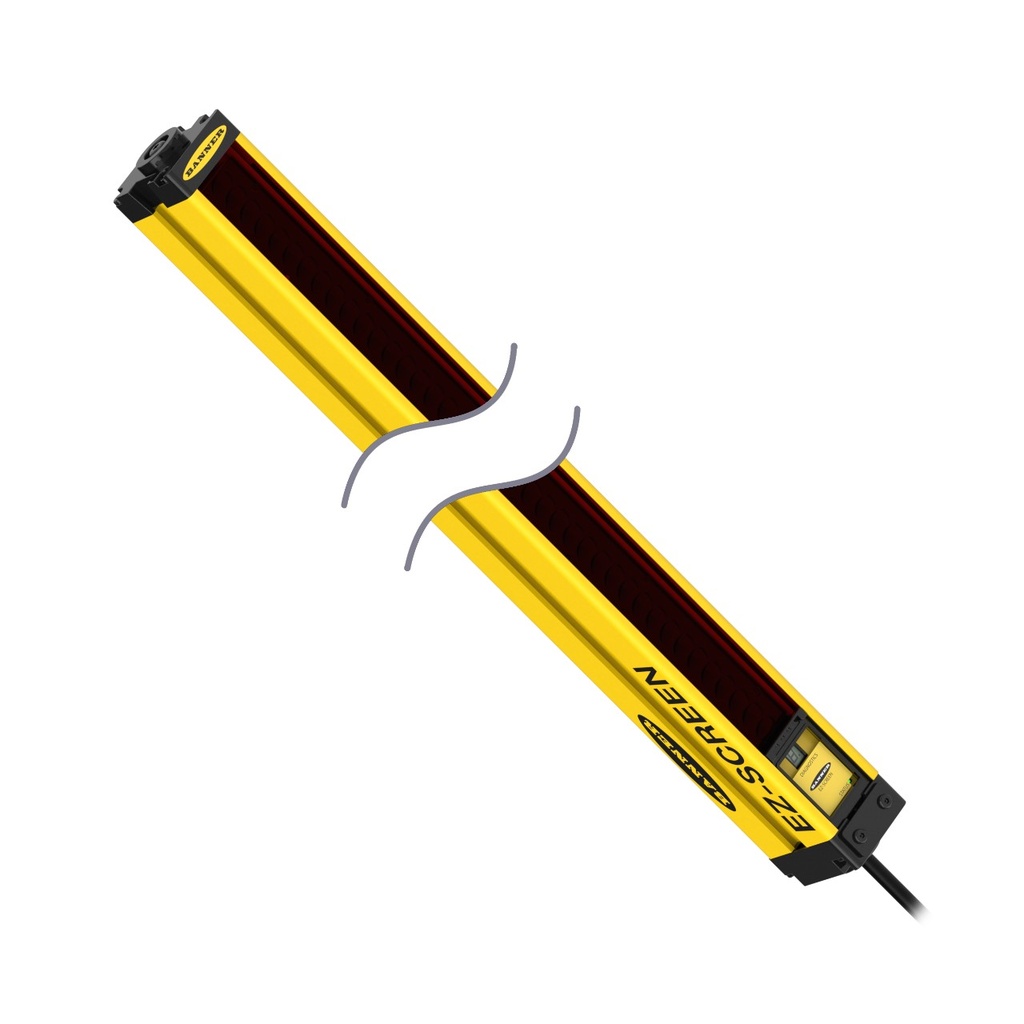

Ezs Emtr 14Mmodsx750Mm Qd Pgtl (SLSCE14-750P8)
SLSCE14-750P8 EZS EMTR 14mmODSx750mm QD PGTL
Defined Area Height Range:> 650 - <= 950 mm
Feature: Low Profile:No
Supply Current:100 mA max.
Min Operating Temperature:0 °C
Max Operating Temperature:55 °C
Ingress Protection:IP65
Housing Material_:Aluminum
Operating Voltage:24 VDC +/- 15%
Physical Dimensions:36 x 45.2 mm
Feature: Cascade:Yes
PL Rating:e
Vibration:10-55 Hz at 0.35 mm
SIL Rating:SIL3; CL3
Recovery Time:33-220 ms / 109-800 ms
Feature: ESD Safe:No
Feature: Test Input:No
System Type:Emitter
Operating Distance:0.1 - 6 m
Response Time:27 ms
Effective Aperture Angle:Type 4 Per IEC 61496-2
Feature: Reduced Resolution:No
Feature: Low-Profile:No
Feature: End-to-End Sensing:Yes
Number of Pins (Receiver/Emitter):8
Feature: Fault Output:No
Defined Area Height:750 mm
Feature: Auxiliary Output:No
Electrical Safety Class:III
Shock:10g at 16ms (6000 cycles)
Feature: Short Protection:Yes
External Monitoring Device:None
Feature: Fixed Blanking:No
Safety Level:Type 3
Feature: Integral Muting:No
Scan Code:Selectable
Trip/Latch Output:N/A
Electrical Connector Type:M12 Pigtail (Yellow)
Country of Origin:MX
Housing Finish:Yellow Polyester
Max Operating Range:> 4 to <= 8 m
Finish Material:Yellow Polyester
Specifications
| Defined Area Height Range | > 650 - <= 950 mm |
| Feature: Low Profile | No |
| Supply Current | 100 mA max. |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Ingress Protection | IP65 |
| Housing Material_ | Aluminum |
| Operating Voltage | 24 VDC +/- 15% |
| Physical Dimensions | 36 x 45.2 mm |
| Feature: Cascade | Yes |
| PL Rating | e |
| Vibration | 10-55 Hz at 0.35 mm |
| SIL Rating | SIL3; CL3 |
| Recovery Time | 33-220 ms / 109-800 ms |
| Feature: ESD Safe | No |
| Feature: Test Input | No |
| System Type | Emitter |
| Operating Distance | 0.1 - 6 m |
| Response Time | 27 ms |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Feature: Reduced Resolution | No |
| Feature: Low-Profile | No |
| Feature: End-to-End Sensing | Yes |
| Number of Pins (Receiver/Emitter) | 8 |
| Feature: Fault Output | No |
| Defined Area Height | 750 mm |
| Feature: Auxiliary Output | No |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| Feature: Short Protection | Yes |
| External Monitoring Device | None |
| Feature: Fixed Blanking | No |
| Safety Level | Type 3 |
| Feature: Integral Muting | No |
| Scan Code | Selectable |
| Trip/Latch Output | N/A |
| Electrical Connector Type | M12 Pigtail (Yellow) |
| Country of Origin | MX |
| Housing Finish | Yellow Polyester |
| Max Operating Range | > 4 to <= 8 m |
| Finish Material | Yellow Polyester |
