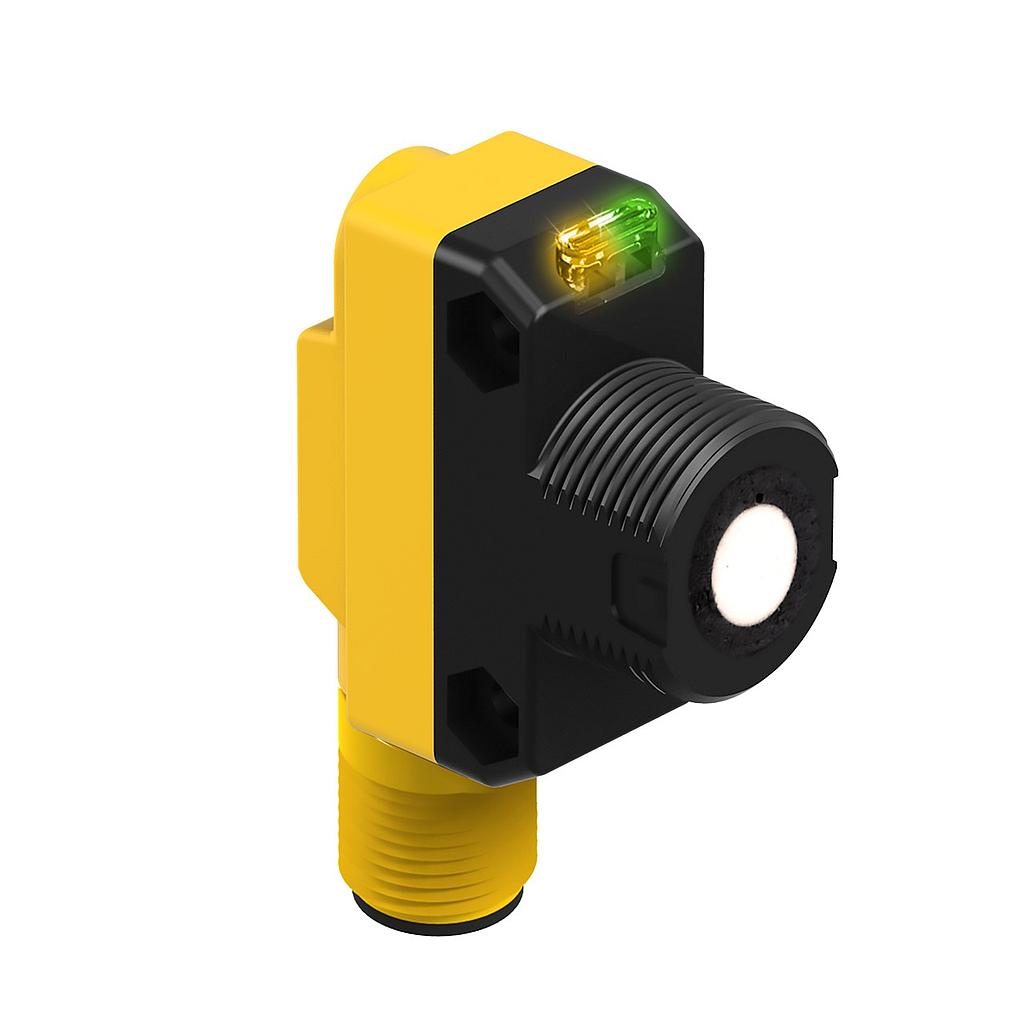

WORLD-BEAM QS18U: Ultrasonic TEACH mode (QS18UPAQ8)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 73156
Weight: 0.15 lb(s)
WORLD-BEAM QS18U: Ultrasonic TEACH mode
Features:
- WORLD-BEAM QS18U: Ultrasonic TEACH mode
- Range: 50-500 mm
- Input: 12-30 V dc
- Output: PNP
- Euro Integral Quick-Disconnect
WORLD-BEAM QS18U: Ultrasonic TEACH mode (QS18UPAQ8)
WORLD-BEAM QS18U: Ultrasonic TEACH mode
Brand_Name:Banner
Manufacturer Product Family:QS18U
Measurement Maximum:0
Max Off-State Leakage Current (µA):<5 µA (PNP)
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Power/Current Consumption (exclusive of load):25 mA max
Power Supply:12-30 VDC
Temperature Effect (mm/°C):#ERROR!
Delay at Power-Up:300 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Rectangular w/ Threaded Mount
Max Sensing Distance:500 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:100%
Feature: Chemical Resistant:No
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Barrel Diameter:18
Min Response Time:15 ms
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Feature: Ultrasonic:Yes
Mechanical Shock:IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs:< 2.0 V @ 100 mA
Analog Resolution/Discrete Repeatability:0.7
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:50 mm
Feature: Clear Object Detection:Yes
Min Window Size:5 mm
Discrete (Switched) Outputs:1 PNP
Max Measurement Range:100-500 mm
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<1.6 V @ 100 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection Type:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 6P
Barrel Thread:M18
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Warm-Up Time:5 min
Rep Rate:7.5 ms
Discrete Output Hysteresis:1.4 mm
Ultrasonic Frequency:300 kHz
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | QS18U |
| Measurement Maximum | 0 |
| Max Off-State Leakage Current (µA) | <5 µA (PNP) |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Power/Current Consumption (exclusive of load) | 25 mA max |
| Power Supply | 12-30 VDC |
| Temperature Effect (mm/°C) | #ERROR! |
| Delay at Power-Up | 300 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Rectangular w/ Threaded Mount |
| Max Sensing Distance | 500 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 100% |
| Feature: Chemical Resistant | No |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete |
| Barrel Diameter | 18 |
| Min Response Time | 15 ms |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Feature: Ultrasonic | Yes |
| Mechanical Shock | IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave |
| Output Saturation Voltage PNP Outputs | < 2.0 V @ 100 mA |
| Analog Resolution/Discrete Repeatability | 0.7 |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 50 mm |
| Feature: Clear Object Detection | Yes |
| Min Window Size | 5 mm |
| Discrete (Switched) Outputs | 1 PNP |
| Max Measurement Range | 100-500 mm |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <1.6 V @ 100 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection Type | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6P |
| Barrel Thread | M18 |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Warm-Up Time | 5 min |
| Rep Rate | 7.5 ms |
| Discrete Output Hysteresis | 1.4 mm |
| Ultrasonic Frequency | 300 kHz |
