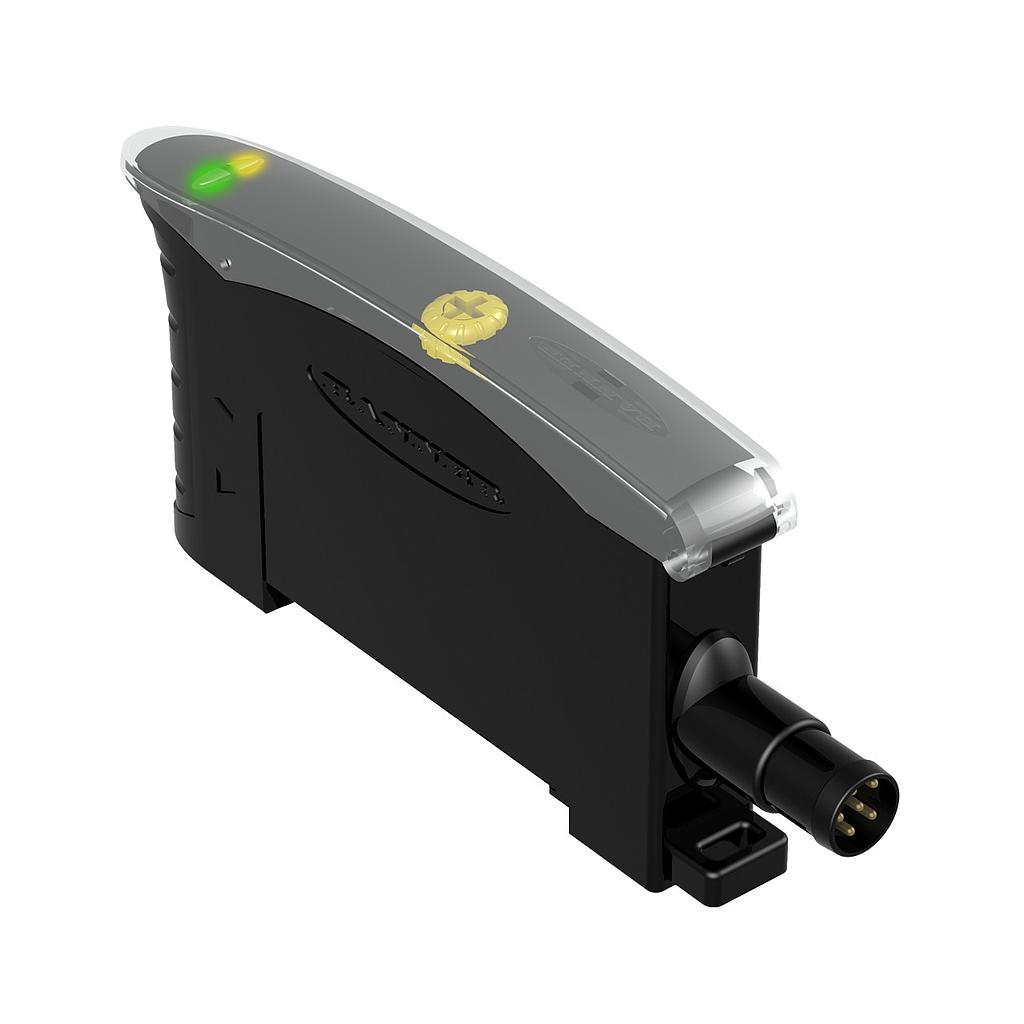

Sensor for use with Plastic Fiber Optics (D10AFPQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 72809
Weight: 0.12 lb(s)
D10AFPQ Sensor for use with Plastic Fiber Optics
Features:
- D10AFPQ Sensor for use with Plastic Fiber Optics
- Range: Depends on Fiber
- Input 10 -30V dc
- Output: Bipolar 4-pin Pico style QD
Sensor for use with Plastic Fiber Optics (D10AFPQ)
D10AFPQ Sensor for use with Plastic Fiber Optics
Brand_Name:Banner
Manufacturer Product Family:D10
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:55 °C
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP50
Repeatability (µs):95
Housing Style:DIN Rail
Max Relative Humidity:90% @ 55 °C, 90% @ 55 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M8
Number of Pins:4
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:.5 ms
Output Type (Specific):Single Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 1
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Feature: Crosstalk Avoidance:Yes
Indicator Type:Indicator LED
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | D10 |
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP50 |
| Repeatability (µs) | 95 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 55 °C, 90% @ 55 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M8 |
| Number of Pins | 4 |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | .5 ms |
| Output Type (Specific) | Single Discrete |
| Fiber Type | Plastic and Glass |
| Color LED - Amplifiers | Red |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 1 |
| Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Feature: Crosstalk Avoidance | Yes |
| Indicator Type | Indicator LED |
