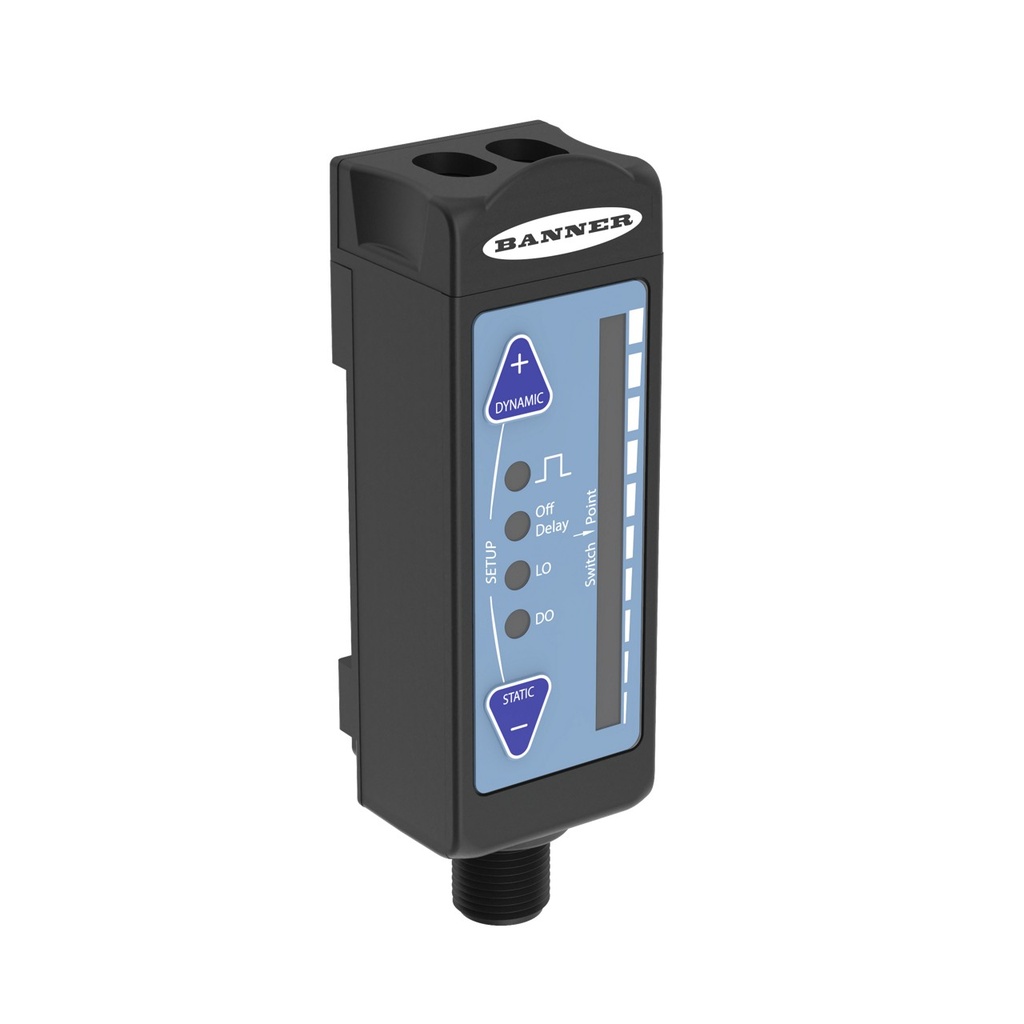

ON-DELAY (R55FVQ-72464)
R55FVQ-72464 ON-DELAY
Brand_Name:Banner
Manufacturer Product Family:R55
Measurement Maximum:0
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:DIN Rail
Max Relative Humidity:90% @ 50 °C, 90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Number of Pins:5
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:.05 ms
Output Type (Specific):Single Discrete
Fiber Type:Glass Only
Color LED - Amplifiers:Red
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6
Fiber Termination Type:Glass Fiber Termination
Feature: Crosstalk Avoidance:No
Indicator Type:Bargraph
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | R55 |
| Measurement Maximum | 0 |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 50 °C, 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 |
| Number of Pins | 5 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | .05 ms |
| Output Type (Specific) | Single Discrete |
| Fiber Type | Glass Only |
| Color LED - Amplifiers | Red |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Fiber Termination Type | Glass Fiber Termination |
| Feature: Crosstalk Avoidance | No |
| Indicator Type | Bargraph |
