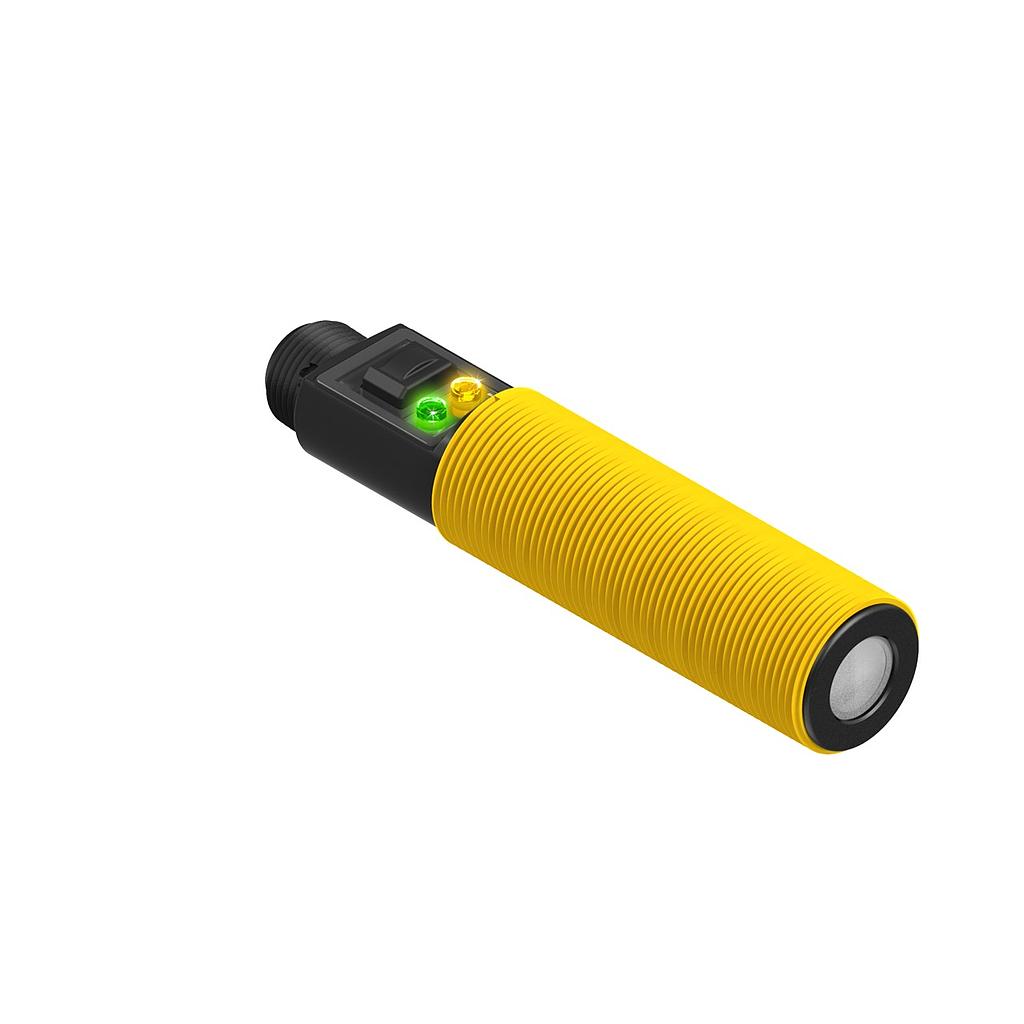

FLAT FACE DISCRETE QD SENSOR (S18UBAQ-72256)
S18UBAQ-72256 FLAT FACE DISCRETE QD SENSOR
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Power/Current Consumption (exclusive of load):65 mA max; 40 mA @ 25 V dc
Power Supply:10-30 VDC
Delay at Power-Up:300 ms
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Barrel - Straight
Max Sensing Distance:300 mm
Device Type:Sensor
Housing Material_:ABS/Polycarbonate
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: Washdown Rated:Yes
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:100%
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Push Button; Remote Teach
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Barrel Diameter:18
Min Response Time:5 ms
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:30 mm
Discrete (Switched) Outputs:Bipolar (NPN & PNP)
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6P
Barrel Thread:M18
Feature: PC Configurable:No
Indicator Type:LED
Ultrasonic Frequency:300 kHz
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Power/Current Consumption (exclusive of load) | 65 mA max; 40 mA @ 25 V dc |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 300 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Barrel - Straight |
| Max Sensing Distance | 300 mm |
| Device Type | Sensor |
| Housing Material_ | ABS/Polycarbonate |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: Washdown Rated | Yes |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 100% |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Push Button; Remote Teach |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete |
| Barrel Diameter | 18 |
| Min Response Time | 5 ms |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 30 mm |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Connection Type | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Barrel Thread | M18 |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Ultrasonic Frequency | 300 kHz |
