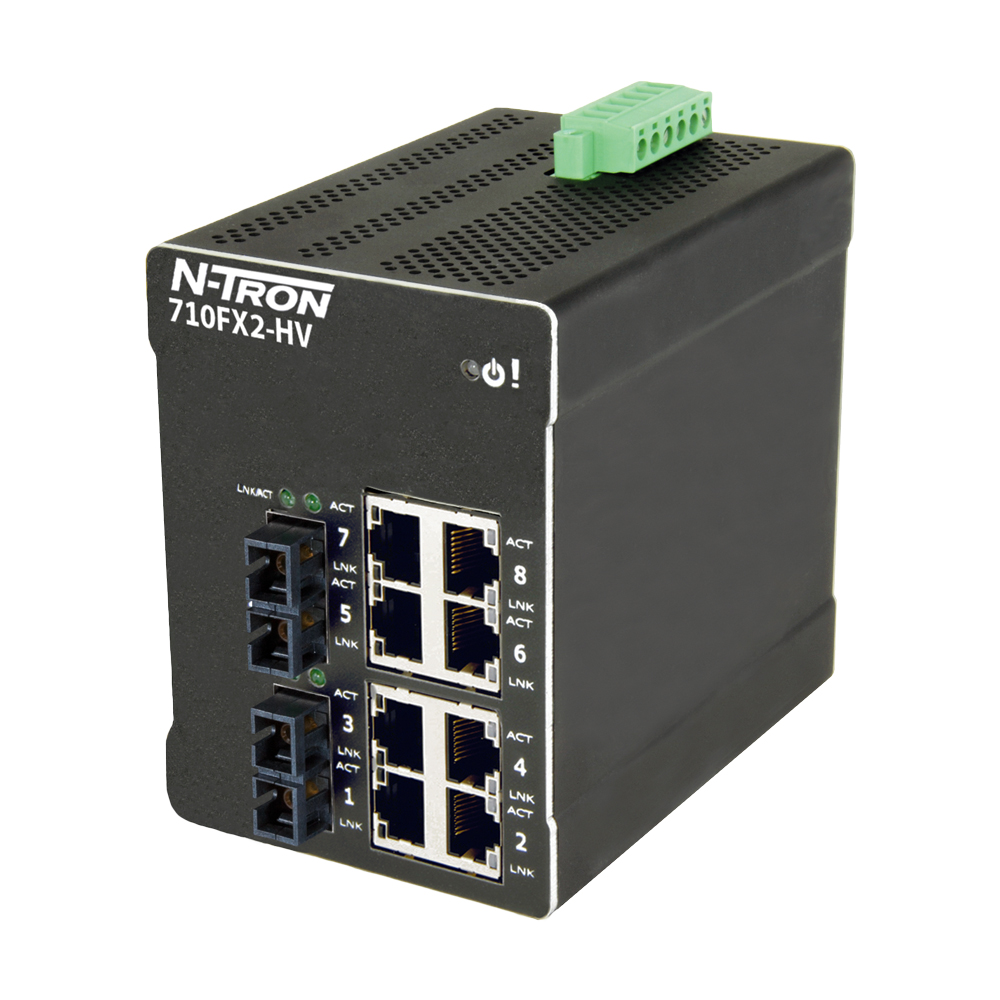

NT-700 Series, 10-Port, N-Tron 710FX2 HV Managed Industrial Ethernet Switch, SC 40km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 710FXE2-SC-40-HV
Weight: 2.5 lb(s)
For applications in extreme environments, check out Red Lion's N-Tron series 700 managed industrial Ethernet switches. Our 700 series support SNMP, web management, Fast Ethernet, and N-View™ which facilitate remote configuration and diagnostics. Housed in rugged DIN-rail mountable or waterproof IP67 enclosures, the 700 managed industrial Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology, providing 30ms healing times.
Features
- 10 Port Managed Industrial Ethernet Switch
- Eight 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 40km Fiber Ports with SC Connectors
- -40°C to 70°C Operating Temperature
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing 10/100BaseTX, Duplex, and MDIX
- Store-and-forward Technology
- Redundant Power Inputs (43-300 VDC)
- 8000 MAC Addresses
- Configurable Alarm Contact
- Configurable Bi-Color Fault Status LED
- Rugged Industrial DIN-Rail Enclosure
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- N-Ring™ Technology with ~30ms Healing
- N-Link™ Redundant Ring Technology
- N-View™ Monitoring Technology
- EtherNet/IP™ CIP Messaging
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- Port Trunking
- Port Mirroring
- 802.1d, 802.1w, 802.1D RSTP
- DHCP Server with Option 82 Relay, Option 61, and IP Fallback
- Local Port IP Addressing
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Port Security - MAC Address Based Filtering
NT-700 Series, 10-Port, N-Tron 710FX2 HV Managed Industrial Ethernet Switch, SC 40km
Brand_Name:Red Lion
Manufacturer Product Family:NT-700 Series Managed Ethernet Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Fiber Type:Singlemode
Ethernet Connector Type:SC
No. Ports:10
10/100 Ports:8
100 Fiber Ports:2
Distance Rating:40 km
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | NT-700 Series Managed Ethernet Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Fiber Type | Singlemode |
| Ethernet Connector Type | SC |
| No. Ports | 10 |
| 10/100 Ports | 8 |
| 100 Fiber Ports | 2 |
| Distance Rating | 40 km |
