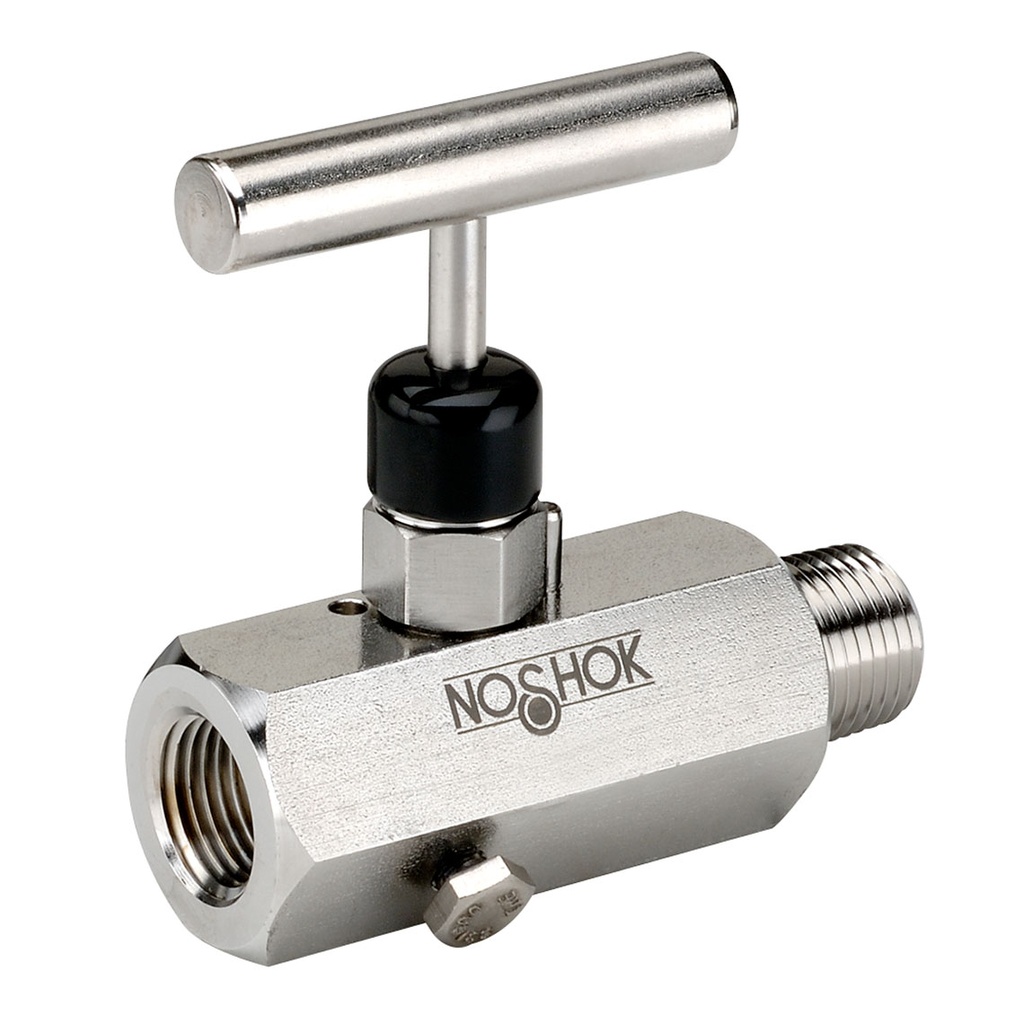

700 Series Block & Bleed, Soft Seat Needle Valve, 1/4" NPT, Male x Female, 316 SS, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 702-MFS
Weight: 1.3 lb(s)
On Hand: 0
1/4" NPT, Male x Female, 316 SS, Soft Seat, 0.187" Orifice Block and Bleed Valve
- Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
700 Series Block & Bleed, Soft Seat Needle Valve, 1/4" NPT, Male x Female, 316 SS, 0.187" Orifice
1/4" NPT, Male x Female, 316 SS, Soft Seat, 0.187" Orifice Block and Bleed Valve
Orifice Size:0.187"
Seat:Soft Seat
Process Connection Type:NPT-Male/NPT-Female
Valve Type:Male-Female
Valve Material:316 SS
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:0.76 Cv
Process Connection Size:1/4"
Measurement Minimum:0
Body Material:316 SS
Seat Type:Soft Seat
Specifications
| Orifice Size | 0.187" |
| Seat | Soft Seat |
| Process Connection Type | NPT-Male/NPT-Female |
| Valve Type | Male-Female |
| Valve Material | 316 SS |
| Pressure Rating | 6,000 psi @ 200 °F |
| Flow Coefficient | 0.76 Cv |
| Process Connection Size | 1/4" |
| Measurement Minimum | 0 |
| Body Material | 316 SS |
| Seat Type | Soft Seat |
