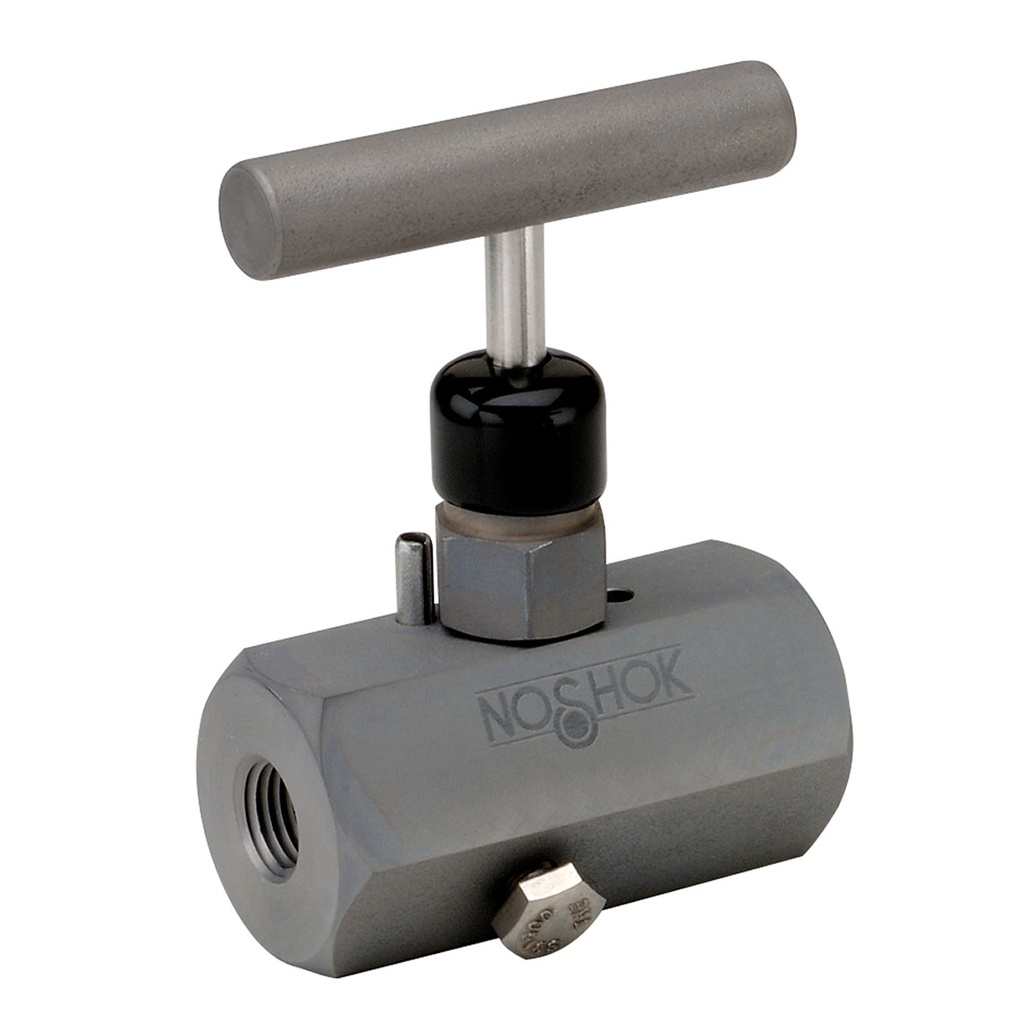

700 Series Block & Bleed, Soft Seat Needle Valve, 1/4" NPT, Male x Female, Steel, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 702-MFC
Weight: 1.3 lb(s)
On Hand: 0
1/4" NPT, Male x Female, Steel, Soft Seat, 0.187" Orifice Block and Bleed Valve
- Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
700 Series Block & Bleed, Soft Seat Needle Valve, 1/4" NPT, Male x Female, Steel, 0.187" Orifice
1/4" NPT, Male x Female, Steel, Soft Seat, 0.187" Orifice Block and Bleed Valve
Orifice Size:0.187"
Seat:Soft Seat
Process Connection Type:NPT-Male/NPT-Female
Valve Type:Male-Female
Valve Material:Steel
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:0.76 Cv
Process Connection Size:1/4"
Body Material:Steel
Seat Type:Soft Seat
Specifications
| Orifice Size | 0.187" |
| Seat | Soft Seat |
| Process Connection Type | NPT-Male/NPT-Female |
| Valve Type | Male-Female |
| Valve Material | Steel |
| Pressure Rating | 6,000 psi @ 200 °F |
| Flow Coefficient | 0.76 Cv |
| Process Connection Size | 1/4" |
| Body Material | Steel |
| Seat Type | Soft Seat |
