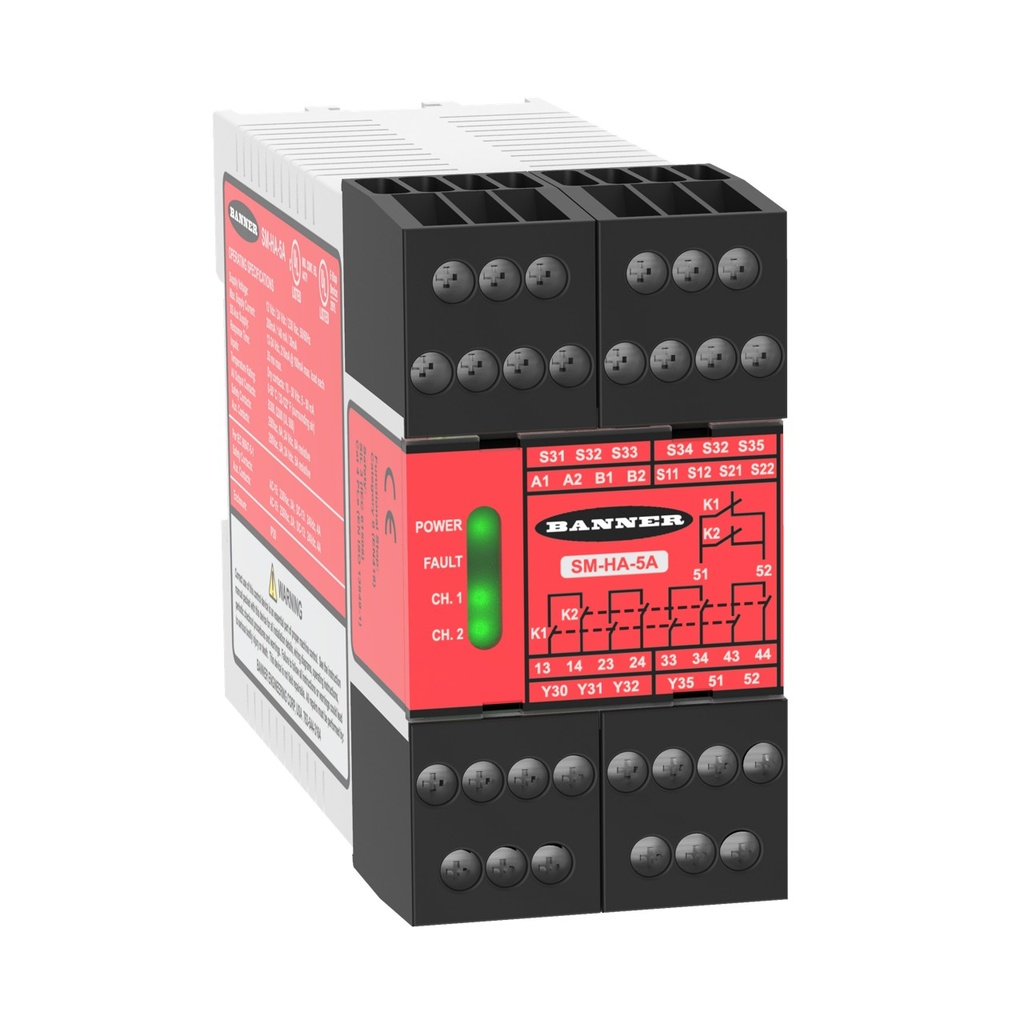

Safety Relay Module for Safety Mats (SM-HA-5A)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 66094
Weight: 1.26 lb(s)
Safety Relay Module for Safety Mats
Features:
- Safety Relay Module for Safety Mats
- Supply Voltage: 230 V ac or 12 to 24 V dc
- Safety Input: 4-Wire Safety Mat
- Safety Outputs: 4 NO, 6 Amp
- Aux Output: 1 NC, 5 Amp and 2 Solid State, 100 mA
- Terminal Block: Removable
- Width: 45mm
- Self-Checking Circuitry, Auto/Manual Reset, EDM
Safety Relay Module for Safety Mats (SM-HA-5A)
Safety Relay Module for Safety Mats
Measurement Maximum:0
Max Operating Temperature:50 °C
Power Consumption:4 W / 7 VA
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Relay
Feature: PCCC:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Supply Voltage:230 VAC; 12-24 VDC
Safety Module Type:Safety Mat Module
Independently Controlled Safe Outputs:1
PL Rating:e
Non Safe Output Rating:Relay - 5 A
SISTEMA:PFHd = 5.8 x 10-8
Relative Humidity:90% @ 50 °C
Vibration:10-60 Hz at 0.35 mm
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Input Configuration:2 NC
Terminal Type:Screw
Input Operation:4-Wire
Number of Safe Inputs:1
Safety Input - Reset:20-50 mA @ 12-30 VDC
Safety Mat:Yes
Input Resistance:250 Ω max. per channel
Recovery Time:350 ms
Response Time:≤35 ms
Non Safe Output Configuration:1 NC, 2 PNP
Number of Stored Colors:1
Country of Origin:US
Feature: Common Ethernet Protocol:No
Electrical Life:150,000 @ 1500 VA
Feature: E-Stops/Rope Pulls:No
Feature: Expandable:No
Feature: Removable Terminals:Yes
Feature: Gate Switch (NC/NC) Input:No
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:No
Feature: Light Curtains/Scanner with EDM Input:No
Feature: Light Curtains/Scanner without EDM Input:No
Feature: Motor Speed:No
Feature: Muting:No
Safety Input - Dual Channel (Dry Contact):20-100 mA @ 12-30 VDC
Feature: Safety Mat:Yes
Feature: In-Series Diagnostics:No
Mechanical Life:20 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 50 °C |
| Power Consumption | 4 W / 7 VA |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Relay |
| Feature: PCCC | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Supply Voltage | 230 VAC; 12-24 VDC |
| Safety Module Type | Safety Mat Module |
| Independently Controlled Safe Outputs | 1 |
| PL Rating | e |
| Non Safe Output Rating | Relay - 5 A |
| SISTEMA | PFHd = 5.8 x 10-8 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 10-60 Hz at 0.35 mm |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Input Configuration | 2 NC |
| Terminal Type | Screw |
| Input Operation | 4-Wire |
| Number of Safe Inputs | 1 |
| Safety Input - Reset | 20-50 mA @ 12-30 VDC |
| Safety Mat | Yes |
| Input Resistance | 250 Ω max. per channel |
| Recovery Time | 350 ms |
| Response Time | ≤35 ms |
| Non Safe Output Configuration | 1 NC, 2 PNP |
| Number of Stored Colors | 1 |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Electrical Life | 150,000 @ 1500 VA |
| Feature: E-Stops/Rope Pulls | No |
| Feature: Expandable | No |
| Feature: Removable Terminals | Yes |
| Feature: Gate Switch (NC/NC) Input | No |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | No |
| Feature: Light Curtains/Scanner with EDM Input | No |
| Feature: Light Curtains/Scanner without EDM Input | No |
| Feature: Motor Speed | No |
| Feature: Muting | No |
| Safety Input - Dual Channel (Dry Contact) | 20-100 mA @ 12-30 VDC |
| Feature: Safety Mat | Yes |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 20 mil |
