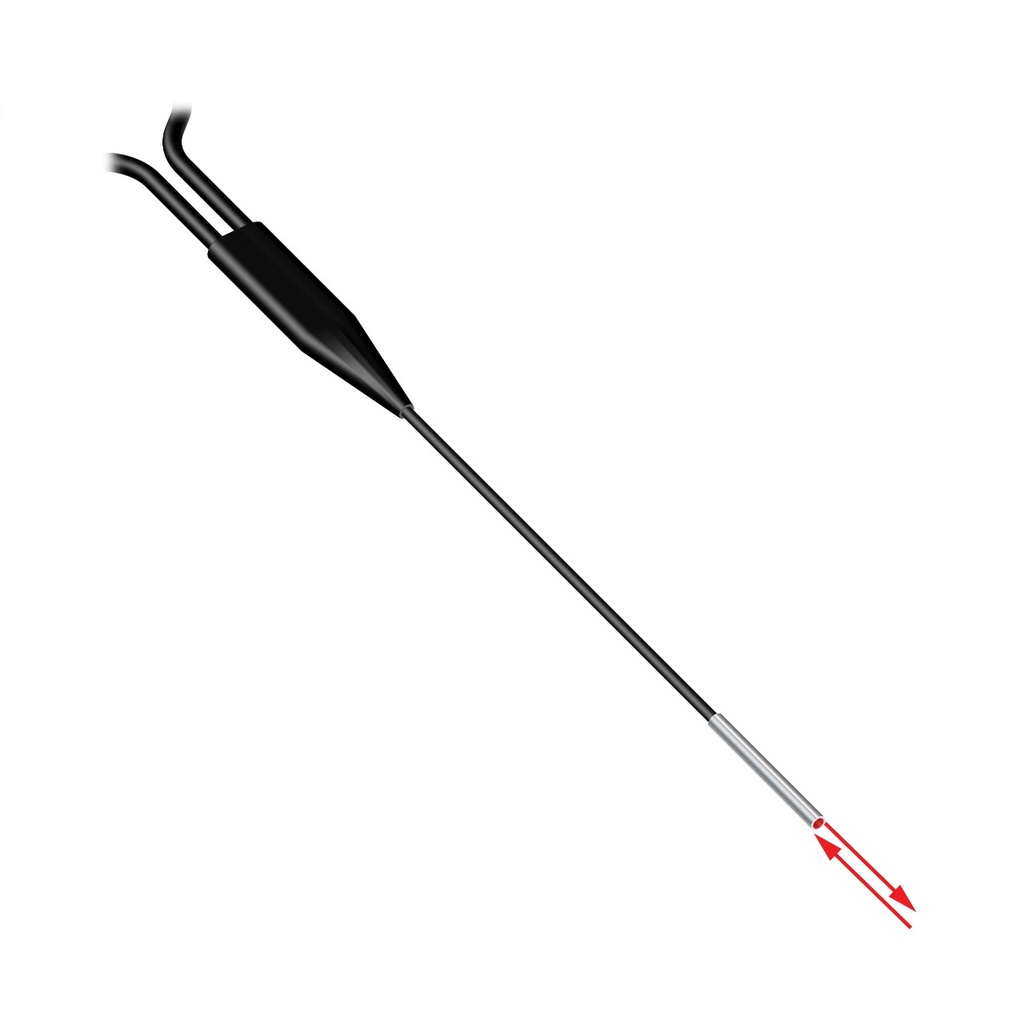

Plastic Fiber, Diffuse Reflective (PBFM1X46T5)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 65903
Weight: 0.04 lb(s)
Plastic Fiber, Diffuse Reflective
Features:
- Plastic Fiber, Diffuse Reflective
- Core Dia.: 4 x 0.25 mm
- Fiber Length 2 m
- 1.5 mm dia. Stainless Ferrule
- T5 Termination
Plastic Fiber, Diffuse Reflective (PBFM1X46T5)
Plastic Fiber, Diffuse Reflective
Measurement Maximum:0
Max Operating Temperature:85 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Ferrule
Tariff Fiber Meters:8 fbm
Min Bend Radius:5 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:1.5 mm
Feature: Retractile:No
Fiber Sensing End Tip:Ferrule
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:4 x 0.3 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:1.5 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Beam Exit:In-line
Feature: Liquid Level:No
Min Hinged Door Size:5 mm
Min Repeat Bending Endurance:1000
Country of Origin:JP
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:5 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 85 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Ferrule |
| Tariff Fiber Meters | 8 fbm |
| Min Bend Radius | 5 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 1.5 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Ferrule |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 4 x 0.3 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 1.5 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 5 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | JP |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 5 mm |
