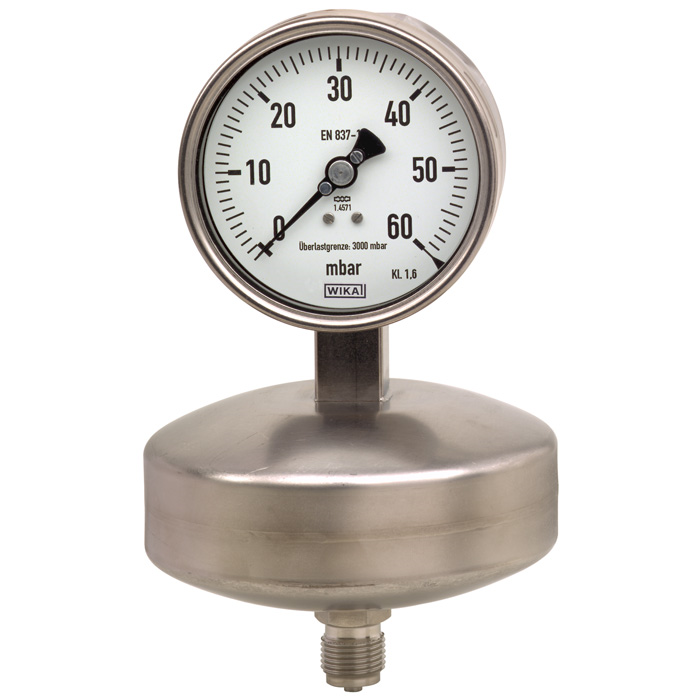

Wika 632.51 4" or 6" SS Series Capsule Pressure Gauge, OVP Safe, SS Wetted Parts
Manufacturer: Wika Instrument Lp
Mfg Product Code: 632.51.ZZZE-MV025Z-GD-UJFH3DAS8ZZZ-ZZZZZ2ZZZUZZZZZZ22Z
Weight: 0.01 lb(s)
632.51 SS Capsule Pressure Gauge
The Wika 632.51 SS Capsule Pressure Gauge, crafted entirely from stainless steel, is designed for the process industry where high overload safety and precise measurement of very low pressures are crucial. Suitable for gaseous and aggressive media, including harsh environments, this gauge features exceptional overload protection up to 50 times the full scale value and boasts a robust design with ingress protection IP54, making it ideal for outdoor use.
Engineered to display extremely low pressures accurately, the gauge’s measuring chamber is protected against unauthorized intervention. The instrument's reliability is enhanced by its large effective area, formed by two welded, radially corrugated diaphragms of the capsule element, ensuring precise measurement even in the presence of medium pollution. With scale ranges starting from 0 to 2.5 mbar and adherence to EN 837-3 standards, this gauge guarantees low measuring errors.
For professionals seeking top-notch quality and performance, Branom Instrument Co. is the premier destination to acquire the Wika 632.51 SS Capsule Pressure Gauge, offering superior reliability and precision in pressure measurement.
Wika 632.51 4" or 6" SS Series Capsule Pressure Gauge, OVP Safe, SS Wetted Parts
632.51 SS Capsule Pressure Gauge
Connector Location:[U] Lower Mount
Ingress Protection:[F] IP 54
Window:[H] Laminated Safety Glass
Case Material:[3] 304 SS
Case Surface:[D] Bare
Permissible Ambient Temp:[A] -20...+60 °C
Permissible Medium Temp:[S] -20...+100 °C
Certificates:[Z] Without
Approvals:[Z] Without
Assembly Accessory:[Z] Without
Electric Arm Contact:[Z] Without
Additional Ordering Info:[ZZ2ZZ] Without
Origin of Wetted Parts:[Z] Without Specification
Pressure Gauge Standard:[U] US-Standard
Logo Options:[ZZZZZ] Without
Manufacturer Logo:[2] *Wika®*
Serial Number:[2] With Serial Number
Text for Dial:[Z] Without
Gauge: Brand:Wika
Gauge: Model:632.51
Gauge: Dial Size:6 in (160 mm), 4 in (100 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Gauge Pressure
Gauge: Measuring Principle:Capsule Element
Gauge: Product Unit of Measure:bar, kPa, mmH2O, inH2O
Gauge: Process Connection Size:G 1/2 B, 1/2 NPT, M20 x 1.5
Gauge: Process Connection Location:Lower Mount
Gauge: Wetted Material:Stainless Steel
Gauge: Accuracy:±3%, ±2%, ±1%, ±0.5%
Gauge: Ingress Protection:IP 54
Gauge: Case Material:Stainless Steel
Gauge: Window:Laminated Safety Glass
Specifications
| Wika 632.51 | |
|---|---|
| Nominal Size | [632.51.ZZZE] 4" or [632.51.ZZZF] 6" |
| Scale Range | ￭ mbar ￭ or [MV025] -2.5/0 mbar or [MV040] -4/0 mbar or [MV060] -6/0 mbar or [MV110] -10/0 mbar or [MV116] -16/0 mbar or [MV125] -25/0 mbar or [MV140] -40/0 mbar or [MV160] -60/0 mbar or [MV210] -100/0 mbar or [MG025] 0/2.5 mbar or [MG040] 0/4 mbar or [MG060] 0/6 mbar or [MG110] 0/10 mbar or [MG116] 0/16 mbar or [MG125] 0/25 mbar or [MG140] 0/40 mbar or [MG160] 0/60 mbar or [MG210] 0/100 mbar |
| 2nd Scale | [Z] Without or [M] mbar or [L] kPa or [P] psi or [2] mmH2O or [7] inH2O or [Y] mH2O or [5] mmHg or [J] oz/in2 or [N] psig or [4] kPag |
| Process Connection | [GD] G 1/2 B or [ND] 1/2 NPT or [MI] M20 x 1.5 |
| Accuracy Class | [J] ± 3/2/3% (ASME B40.100 Grade B) or [I] ± 2/1/2% (ASME B40.100 Grade A) or [L] ± 1% (ASME B40.100 Grade 1A) or [K] ± .5% (ASME B40.100 2A) |
| Overpressure Safety | [8] Standard or [4] Vacuum Safe 10 x FSV or [Q] Vacuum Safe 3 x FSV |
| Mounting Device | [Z] Without or [V] Front Mounting Flange w/o Contacts (4") or [V] Front Mounting Flange w/o Contacts (6") |
| Restrictor | [ZZ-ZZZZZ2ZZZU] Without or [PZ-ZZZZZ2ZZZU] Stainless Steel, Orifice 1.0 mm (0.04 in) or [QZ-ZZZZZ2ZZZU] Stainless Steel, D 0.6 or [RZ-ZZZZZ2ZZZU] Stainless Steel, Orifice 0.3mm (0.012 in) |
| Color for Inner Scale | [ZZZZZZ22Z] Without or [CZZZZZ22Z] Red or [AZZZZZ22Z] Black |
| Connector Location | [U] Lower Mount |
| Ingress Protection | [F] IP 54 |
| Window | [H] Laminated Safety Glass |
| Case Material | [3] 304 SS |
| Case Surface | [D] Bare |
| Permissible Ambient Temp | [A] -20...+60 °C |
| Permissible Medium Temp | [S] -20...+100 °C |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [ZZ2ZZ] Without |
| Origin of Wetted Parts | [Z] Without Specification |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *Wika®* |
| Serial Number | [2] With Serial Number |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | 632.51 |
| Gauge: Dial Size | 6 in (160 mm), 4 in (100 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Capsule Element |
| Gauge: Product Unit of Measure | bar, kPa, mmH2O, inH2O |
| Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, M20 x 1.5 |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±3%, ±2%, ±1%, ±0.5% |
| Gauge: Ingress Protection | IP 54 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
