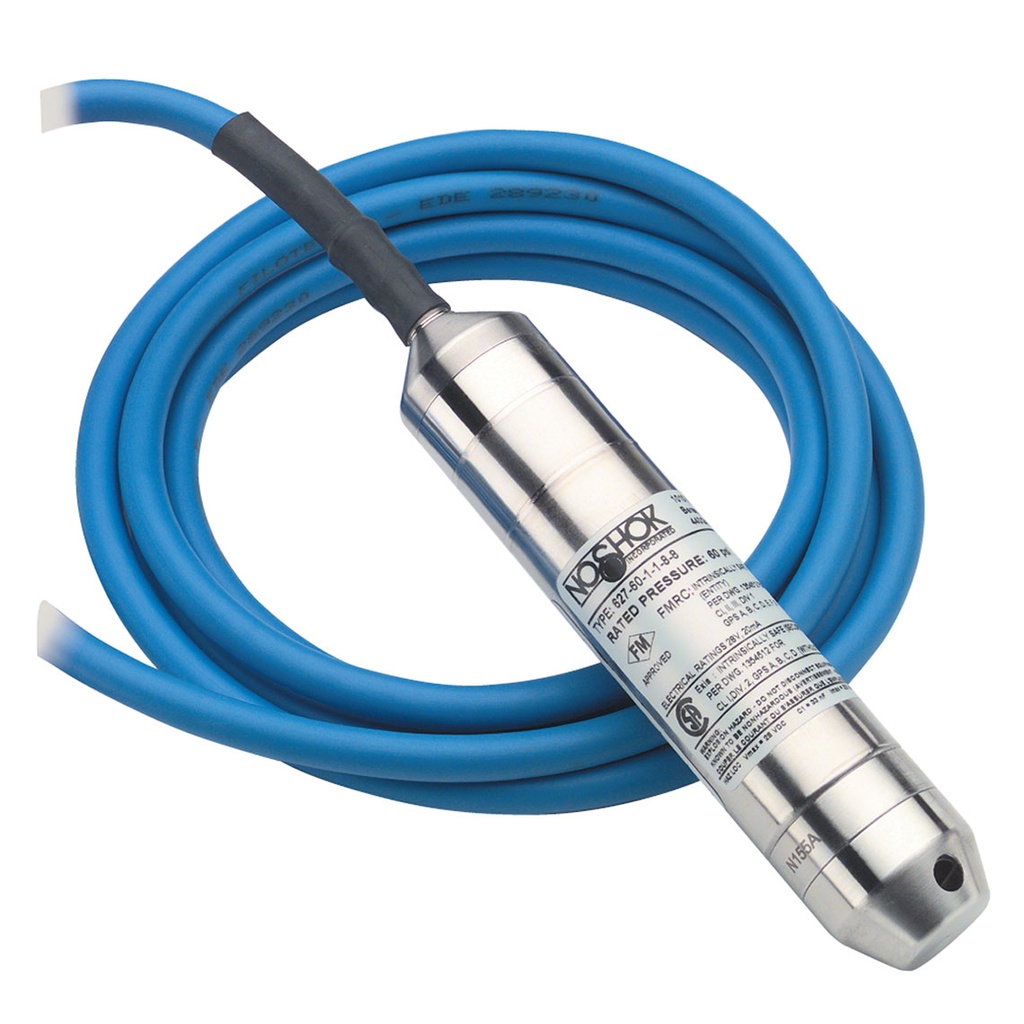

627 Series Intrinsically Safe Submersible Liquid Level Transmitter, 0 psi to 5PSI, 40FT Cable
Manufacturer: Noshok Inc
Mfg Product Code: 627-5-1-1-N-40
Weight: 10.0 lb(s)
0 to 5 psig, 0.25% Accy BFSL, 4 to 20 mA O/P Submersible Pressure Transmitter w/Nose Cone, 40 ft Cable
- Current output
- 316 Stainless Steel and 17-4PH Steel wetted parts
- Canadian Standards Association approved
- CE compliant to suppress RFI, EMI and ESD
Applications:
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
627 Series Intrinsically Safe Submersible Liquid Level Transmitter, 0 psi to 5PSI, 40FT Cable
0 to 5 psig, 0.25% Accy BFSL, 4 to 20 mA O/P Submersible Pressure Transmitter w/Nose Cone, 40 ft Cable
Measurement Maximum:15.0
Process Connection Type:Nose Cone
Pressure Range:0 psi to 15 psi (34.65 ft/H2O)
Min Operating Pressure:0 psi
Max Operating Pressure:15 psi
Min Operating Temperature:14 °F
Product Unit of Measure:psi
Max Operating Temperature:140 °F
Accuracy:±0.25% full scale (BFSL)
Case Material:316 SS
Wetted Material:SS Nose Cone
Measurement Minimum:0
Output Communication Protocol:4-20 mA
Input Voltage:10-30 VDC
Ingress Protection:IP68
Response Time:≤1 ms
Electrical Connector Type:FEP Cable
Proof Pressure:2x Range
Burst Pressure:3x Range
Cable Type:40' FEP Cable
Cable Length (ft):40.0
Cord/Cable Length:40 ft
Specifications
| Measurement Maximum | 15.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 psi to 15 psi (34.65 ft/H2O) |
| Min Operating Pressure | 0 psi |
| Max Operating Pressure | 15 psi |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psi |
| Max Operating Temperature | 140 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | SS Nose Cone |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Response Time | ≤1 ms |
| Electrical Connector Type | FEP Cable |
| Proof Pressure | 2x Range |
| Burst Pressure | 3x Range |
| Cable Type | 40' FEP Cable |
| Cable Length (ft) | 40.0 |
| Cord/Cable Length | 40 ft |
