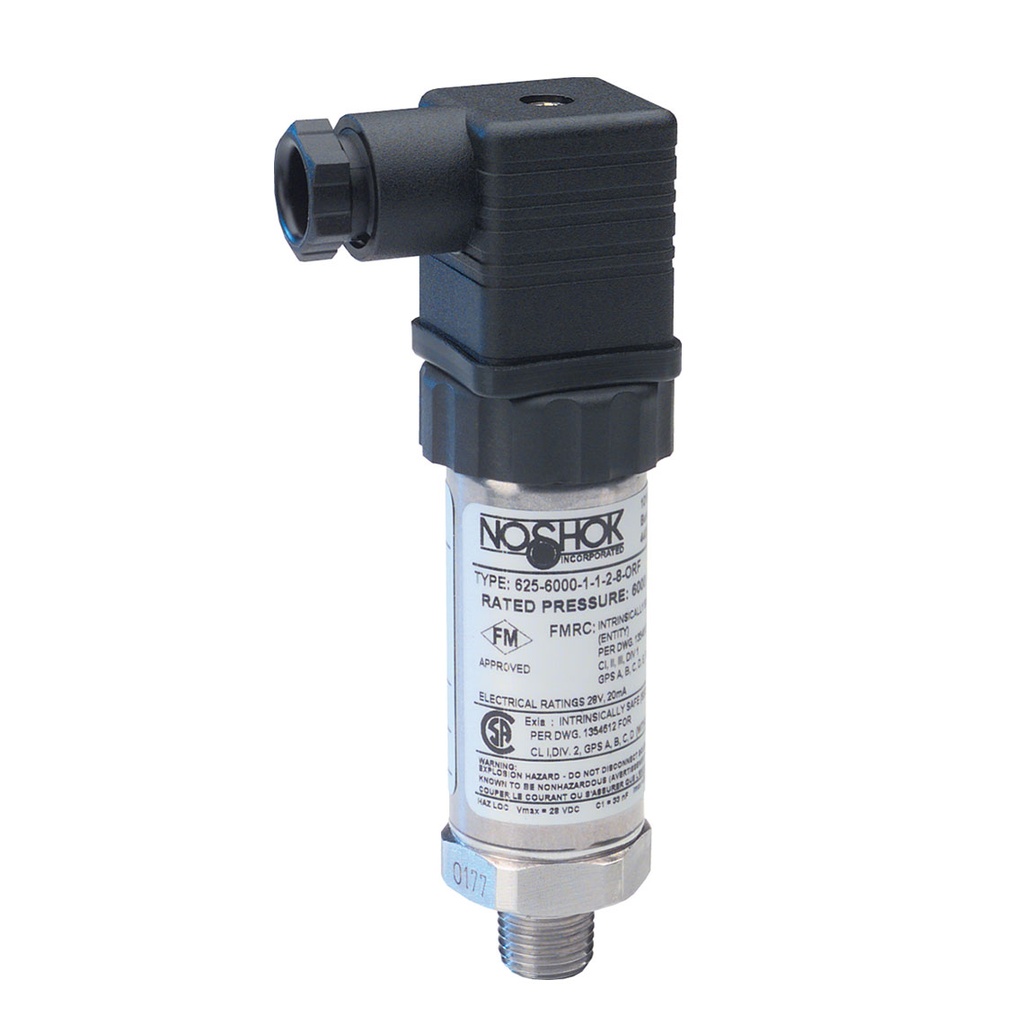

625 Series Intrinsically Safe Pressure Transmitter, 200PSI, M12x1 (4 PIN) IP67, =+/- 0.125% Full Scale, 1/4"NPT Male
Manufacturer: Noshok Inc
Mfg Product Code: 625-200-2-1-2-25
Weight: 0.25 lb(s)
On Hand: 0
- Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current output
- 316 and 14-4PH Stainless Steel wetted parts
Applications:
- Chemical processing
- Gas pressure measurement
- Oil field & offshore
- Mining
- Vapory recovery systems
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
625 Series Intrinsically Safe Pressure Transmitter, 200PSI, M12x1 (4 PIN) IP67, =+/- 0.125% Full Scale, 1/4"NPT Male
Measurement Maximum:200.0
Process Connection Type:NPT-Male
Product Unit of Measure:psig
Case Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4 mA to 20 mA, 2-wire
Input Voltage:10-30 VDC
Ingress Protection:IP67
Response Time:≤1 ms
Electrical Connector Type:M12 x 1 (4-pin)
Specifications
| Measurement Maximum | 200.0 |
| Process Connection Type | NPT-Male |
| Product Unit of Measure | psig |
| Case Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4 mA to 20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP67 |
| Response Time | ≤1 ms |
| Electrical Connector Type | M12 x 1 (4-pin) |
