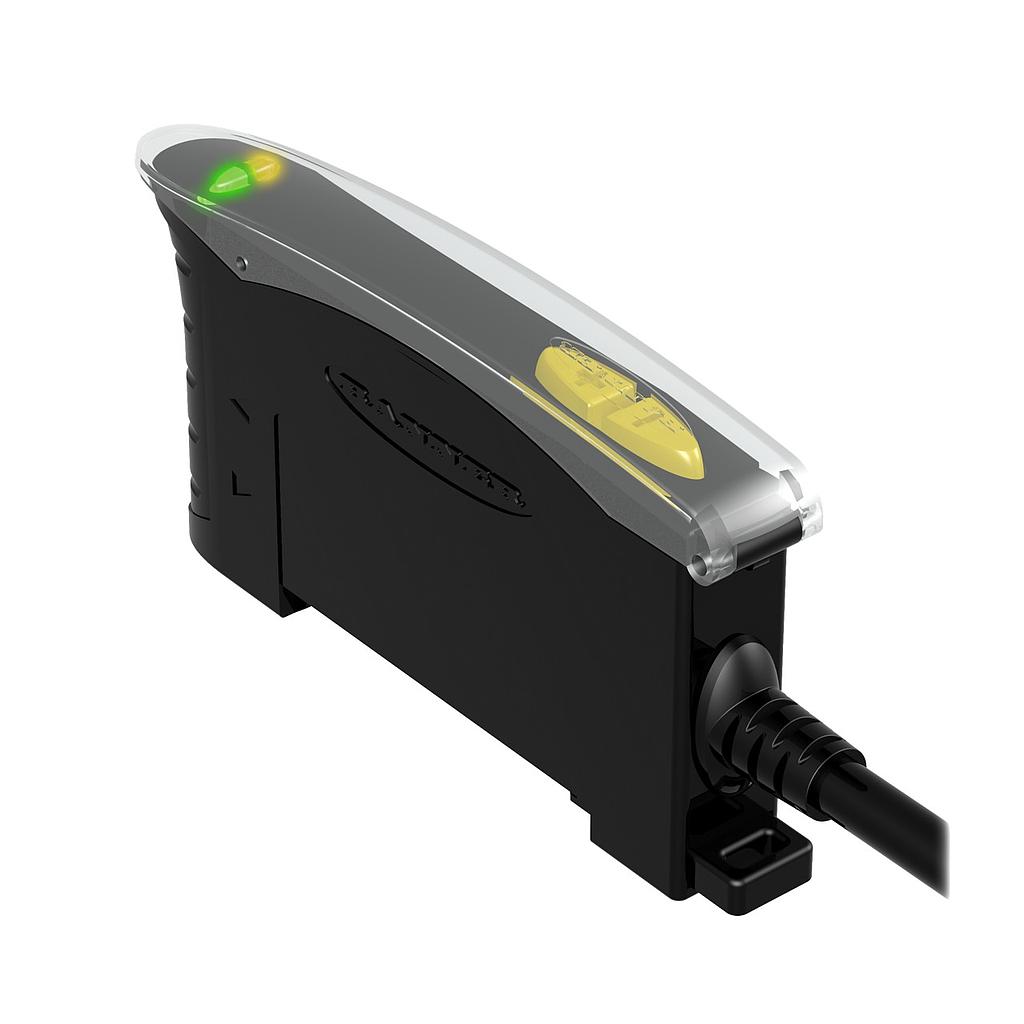

D10 Expert: Red Beam Plastic Fiber (D10DPFP)
D10 Expert: Red Beam Plastic Fiber
Brand_Name:Banner
Manufacturer Product Family:D10
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Power Supply:12-24 VDC
Delay at Power-Up:1000 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP50
Repeatability (µs):25 to 100
Housing Style:DIN Rail
Max Relative Humidity:90% @ 50 °C, 90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Number of Pins:6
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:.05 ms
Output Type (Specific):Dual Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:CN
NEMA / UL:NEMA 1
Cord/Cable Length:2 m
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Feature: Crosstalk Avoidance:Yes
Indicator Type:Single Digital Display
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | D10 |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 12-24 VDC |
| Delay at Power-Up | 1000 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP50 |
| Repeatability (µs) | 25 to 100 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 50 °C, 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Number of Pins | 6 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | .05 ms |
| Output Type (Specific) | Dual Discrete |
| Fiber Type | Plastic and Glass |
| Color LED - Amplifiers | Red |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | CN |
| NEMA / UL | NEMA 1 |
| Cord/Cable Length | 2 m |
| Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Feature: Crosstalk Avoidance | Yes |
| Indicator Type | Single Digital Display |
