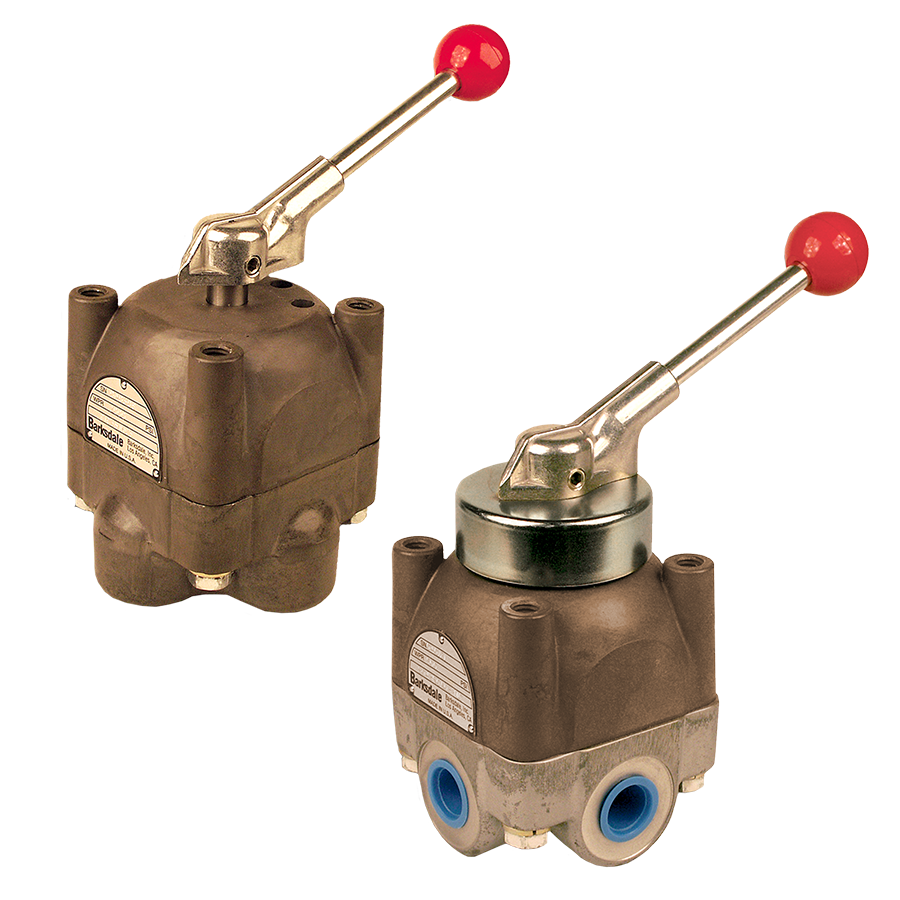

Barksdale 6180 High Pressure OEM Valve for Hydraulic Oil, 1/4" NPT Ports, Straight Porting, 3000 psi, Closed Center

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: 6181S3HC3

Weight: 1.7 lb(s)

Type: Manual, Bottom Porting
Series: 6180
Port Size: 1/4 in
Pressure Rating: 3000 PSI
Temperature Rating: -40 - 250 deg F
Flow Rate: 10 GPM
Number of Ports/Ways: 4
Media: Hydraulic Oil
Actuation Type: Manual
Body Material: Aluminum

Barksdale's High Pressure OEM Valve line provides exceptional directional control for fluids up to 3000 psi in the most demanding industrial applications.

• Proven Performance:
  • Utilizing Barksdale's renowned Shear-Seal® technology, these valves offer dependable performance and long life, even in the presence of contaminants that would damage ordinary valves.
• Key Features:
  • Low pressure drop for efficient operation.
  • Tolerates contaminants for reliable performance in challenging environments.
  • Spring return option for added safety and control.
  • Flexible design with customizable options to meet specific OEM requirements.

Applications:

• Hydraulic presses
• Military equipment
• Paper mill controls
• Hydraulic pilot valves
• Railroad maintenance equipment
• Halon fill systems
